Test Description

NOTE: Test numbers refer to numbers on diagnostic chart.
  1. Checks circuit for an open or short to ground.
  2. Ensures EBTCM is proving a proper PWM signal to PCM.
Fig 1: Code P1571 Schematic (3.8L) Traction Control Desired Torque Out Of Range
G95D13873

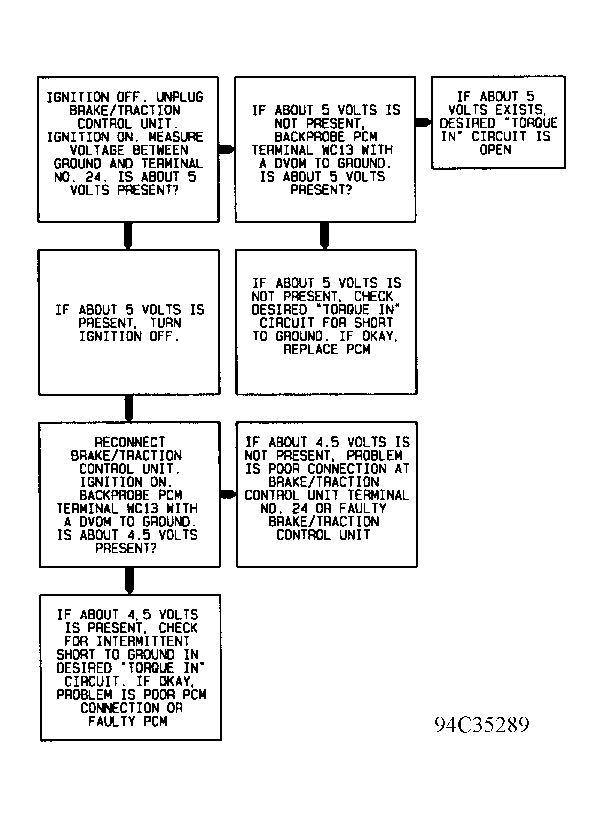

Fig 2: Code P1571 Diagnostic Flow Chart (3.8L) Traction Control Desired Torque Out Of Range
G94C35289
