Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | ||||
|---|---|---|---|---|---|
| Adjuster Plug Lock Nut | 50 (68) | ||||
| Engine Frame-To-Body Bolts | 66 (89) | ||||
| Inner Tie Rod-To-Rack | 74 (100) | ||||
| Outer-To-Inner Tie Rod Hex Lock Nut | 52 (71) | ||||
| Pinion & Valve Assembly Lock Nut | 26 (35) | ||||
| Pressure Line Fitting (Hydraulic Union) | 56 (76) | ||||

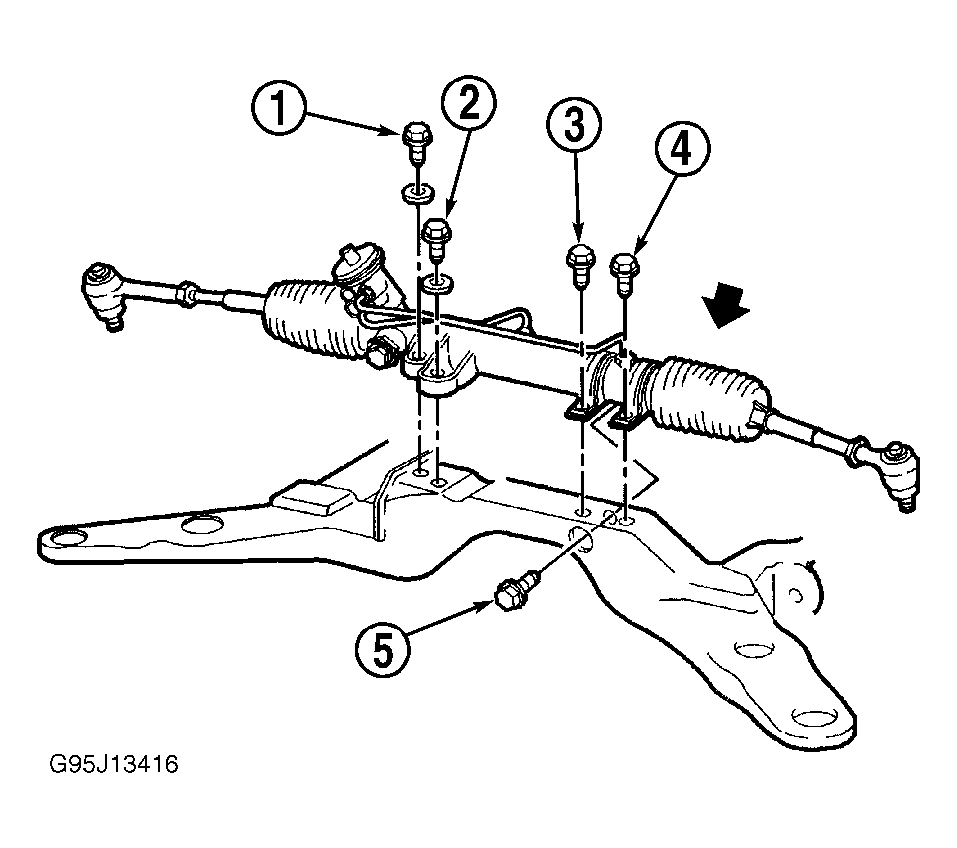

| Rack & Pinion Mounting Bolt/Nuts | (1) 50 (68) | ||||
| Steering Shaft Lower Coupling Pinch Bolt | 35 (47) | ||||
| Tie Rod End Castle Nut | (2) * | ||||
| Wheel Lug Nuts | 100 (136) | ||||
|
|||||
