Diagnostic Aids

Check related harness connectors, including PCM harness. Check for damaged or pushed out terminals.

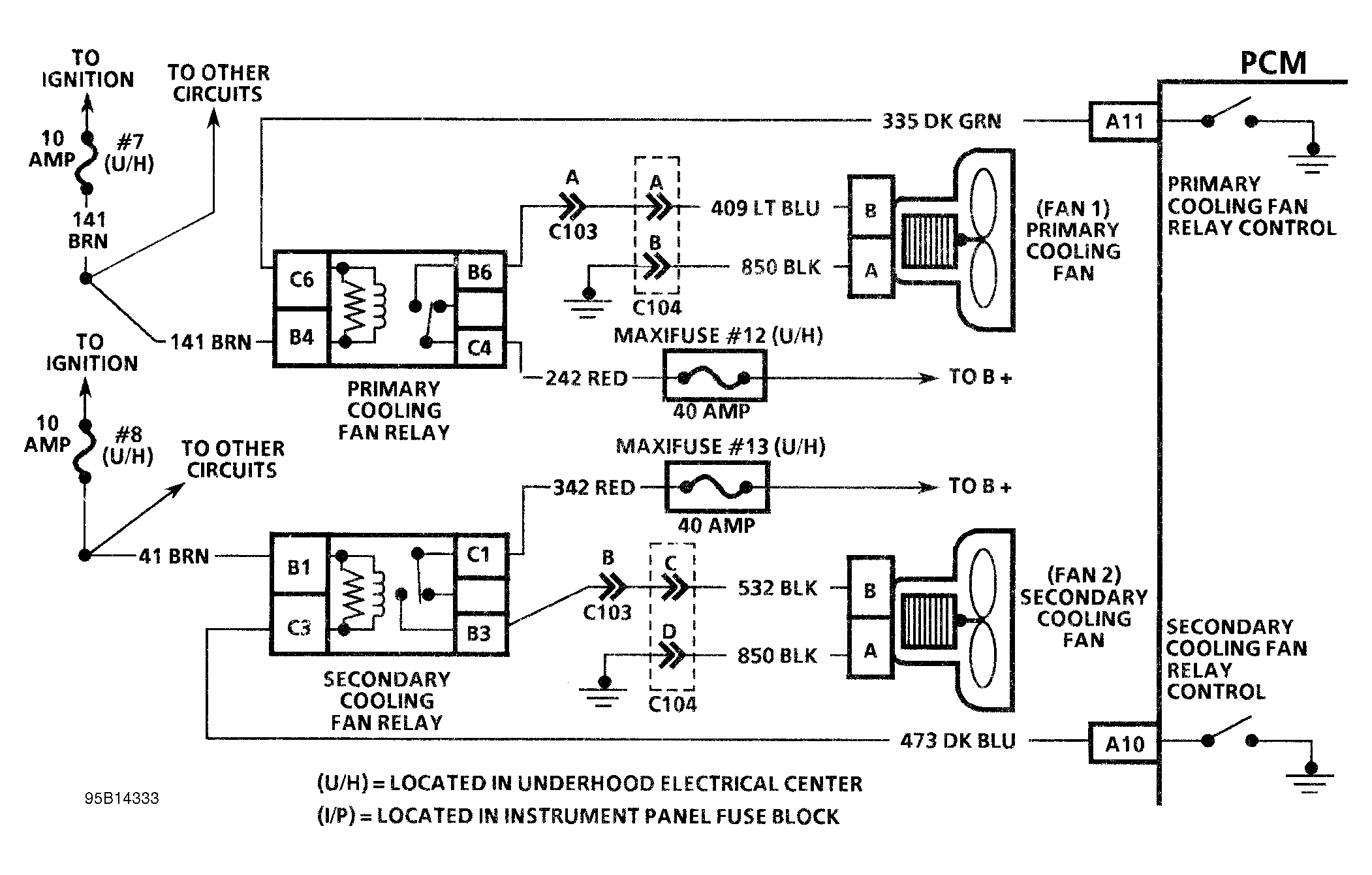

Fig 1: Code 77 Schematic (5.7L) Primary Cooling Fan Driver

Fig 2: Code 77 Diagnostic Flow Chart (5.7L) Primary Cooling Fan Driver
