Transmission Reassembly: Notes

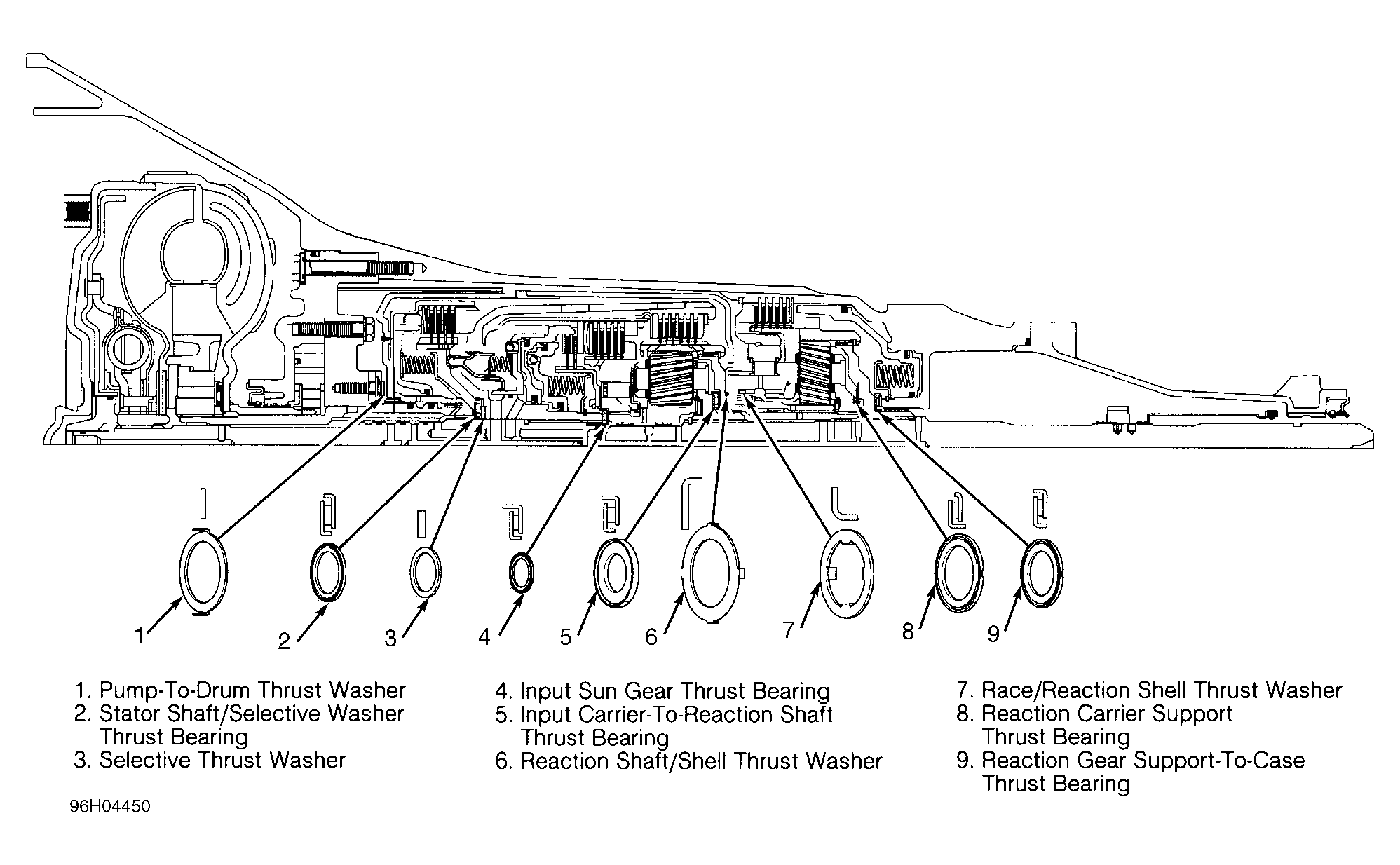

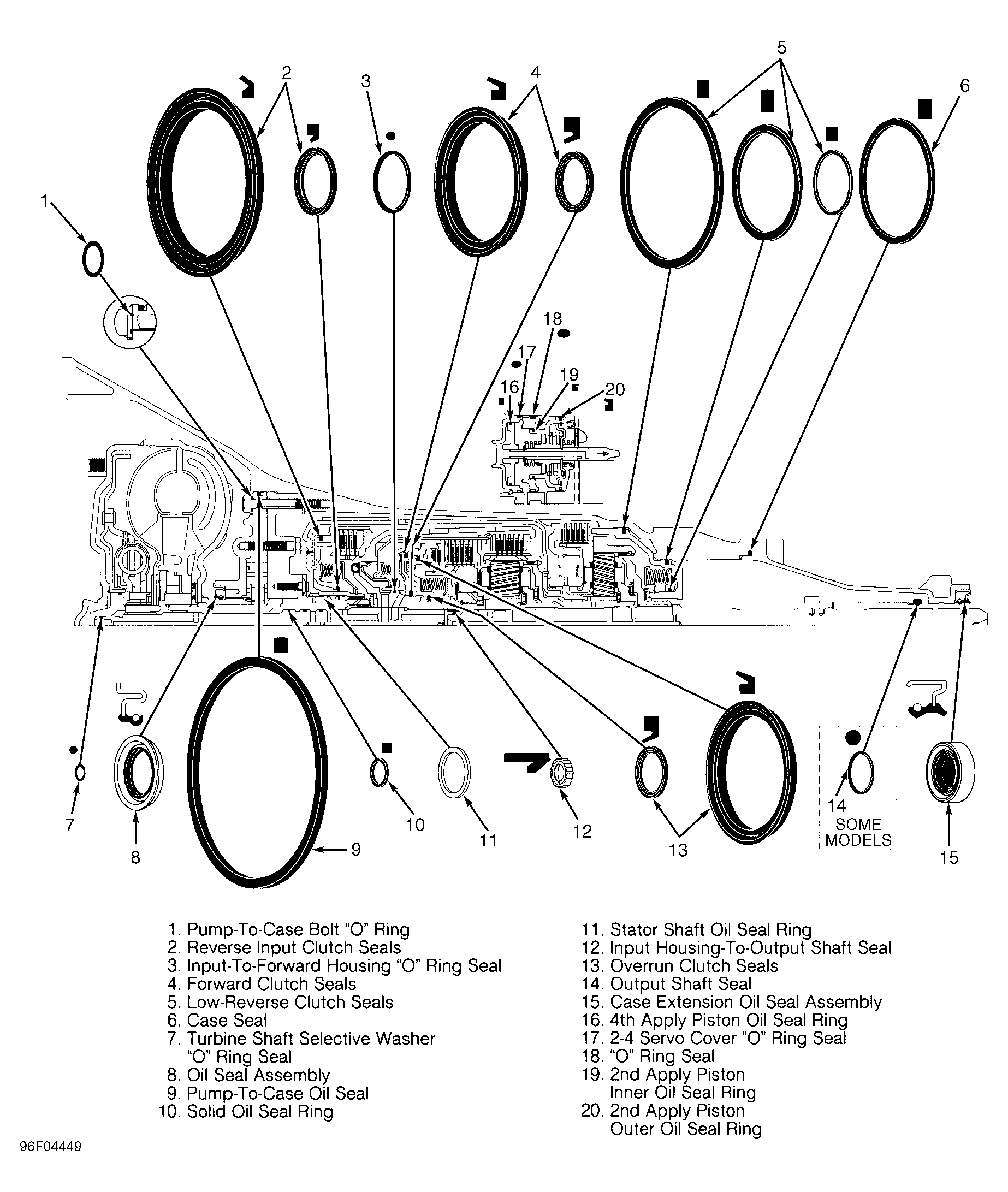

NOTE: To identify seal, thrust bearing and thrust washer locations and direction, see SEALS, BEARINGS & THRUST WASHERS under TRANSMISSION REASSEMBLY. See Figure and Figure .
