Component Locations

COMPONENT LOCATIONS

Component Location
Data Link Connector (DLC) Below Driver Side Of Instrument Panel, Near Steering Column. See Fig 1
Diagnostic Energy Reserve Module (DERM) Behind Driver Side Of Instrument Panel, Right Of Steering Column. See Fig 2
Electronic Brake Control Module (EBCM) Behind Passenger Side Of Instrument Panel. See Fig 3
Instrument Cluster On Driver Side Of Instrument Panel
Multi-Function Alarm In-Line Fuse Taped In Harness, Behind Instrument Panel Fuse Block. See Fig 4
Powertrain Control Module (PCM) (4-Cyl., VIN 4) Behind Passenger Side Of Instrument Panel. See Fig 5
Powertrain Control Module (PCM) (V6, VIN M) Behind Passenger Side Of Instrument Panel. See Fig 6
C210 (4-Cyl., VIN 4) Behind Passenger Side Of Instrument Panel, Below PCM. See Fig 5
C210 (V6, VIN M) Behind Passenger Side Of Instrument Panel, Below PCM. See Fig 6
C211 Behind Passenger Side Of Instrument Panel, Below PCM
G105 4 Cyl (VIN 4) On Transaxle Stud, Under Intake Manifold. See Fig 7
G112 6 Cyl (VIN M) On Transaxle Stud, Rear Of Starter Solenoid. See Fig 8
G202 At Center Of Instrument Panel, Left Of Ashtray. See Fig 1
P102 (4-Cyl., VIN 4) In Front Of Instrument Panel, On Passenger Side. See Fig 5
P102 (V6, VIN M) In Front Of Instrument Panel, On Passenger Side. See Fig 6
S137 In Engine Harness, Near C100 Breakout. See Fig 7
S166 In Engine Harness, Near A/C Compressor Clutch Coil Breakout. See Fig 9
S203 (Buick) In Instrument Panel Harness, Near Radio Breakout. See Fig 1
S203 (Oldsmobile) In Instrument Panel Harness, Near Instrument Panel Compartment Lamp Breakout. See Fig 10
S228 (Buick) In Instrument Panel Harness, Near G202 Breakout
S228 (Oldsmobile) In Instrument Panel Harness, Near Instrument Panel Compartment Lamp Breakout
S215 In Instrument Panel Harness, Behind Center Of Instrument Panel. See Fig 10
S237 In Instrument Panel Harness, Near G202 Breakout

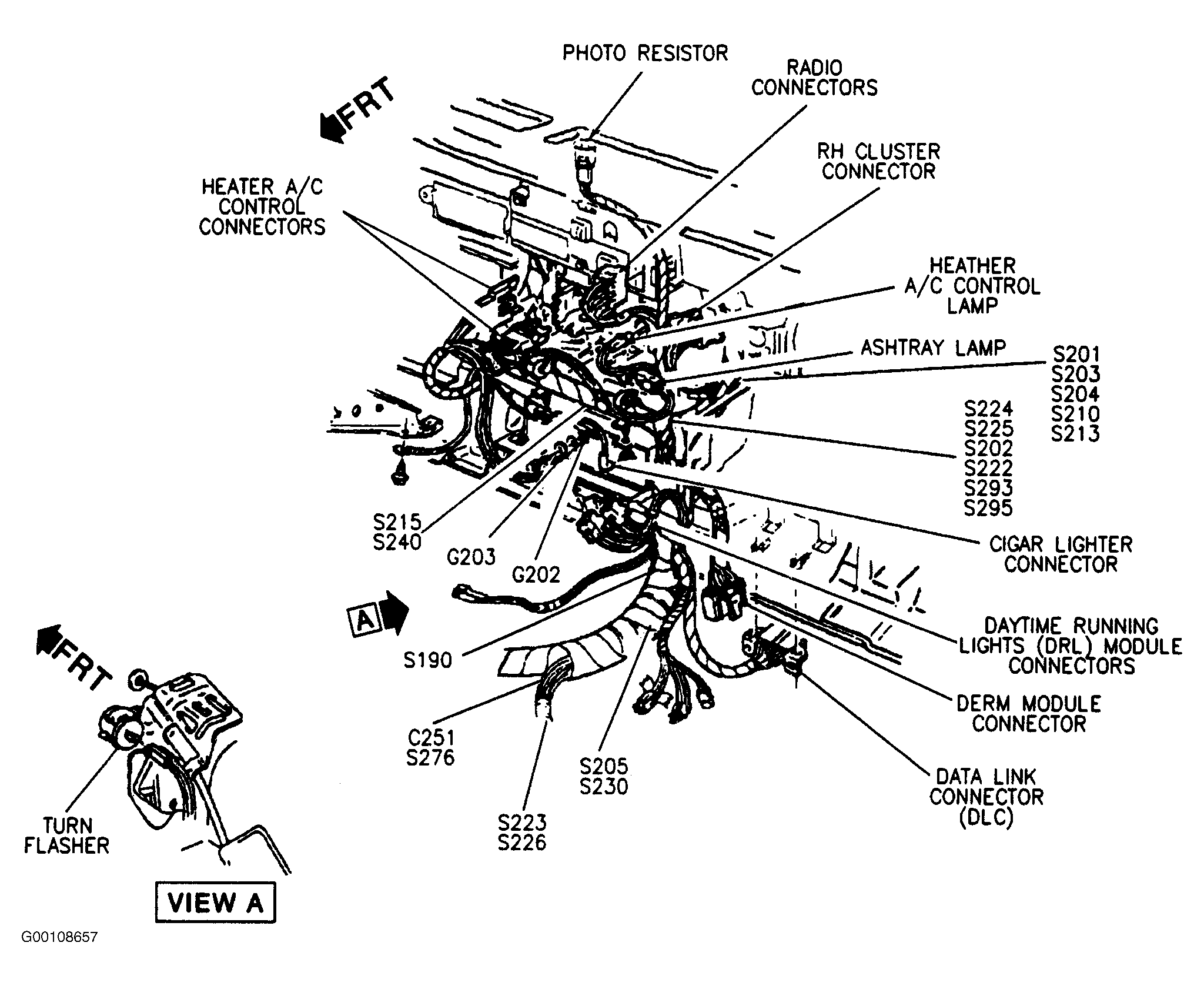

Fig 1: Locating Data Link Connector (DLC), Ground G202 & Splice S203
G00108657Courtesy of GENERAL MOTORS CORP.

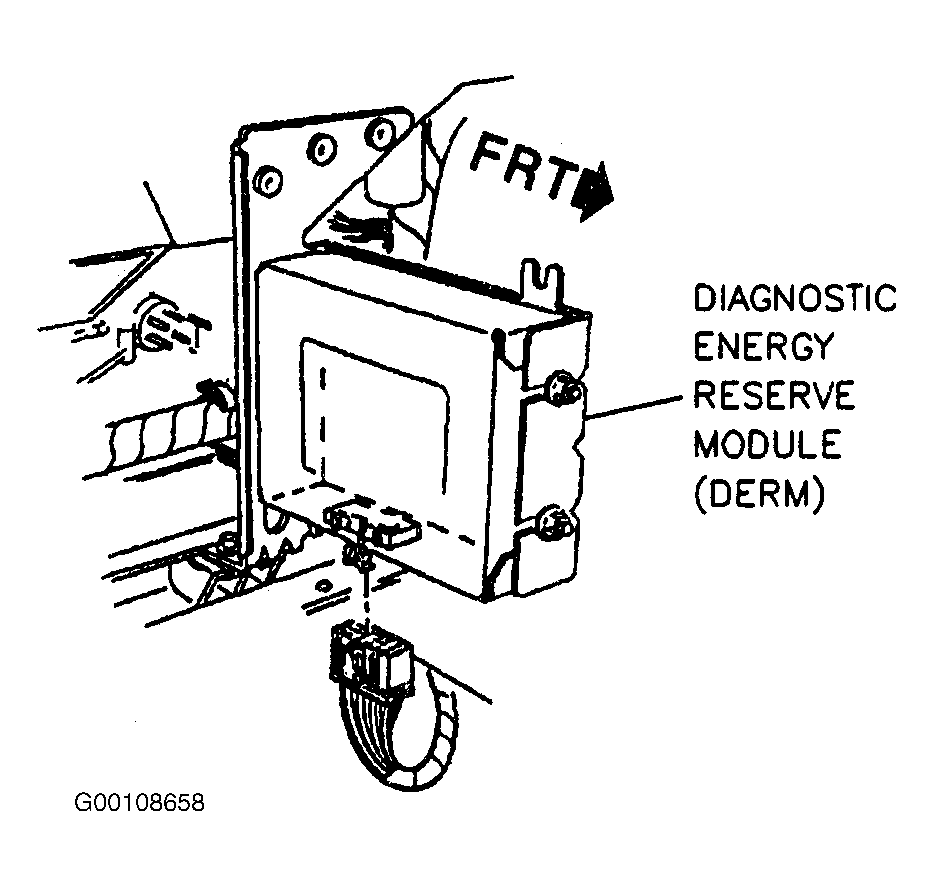

Fig 2: Locating Diagnostic Energy Reserve Module (DERM)
G00108658Courtesy of GENERAL MOTORS CORP.

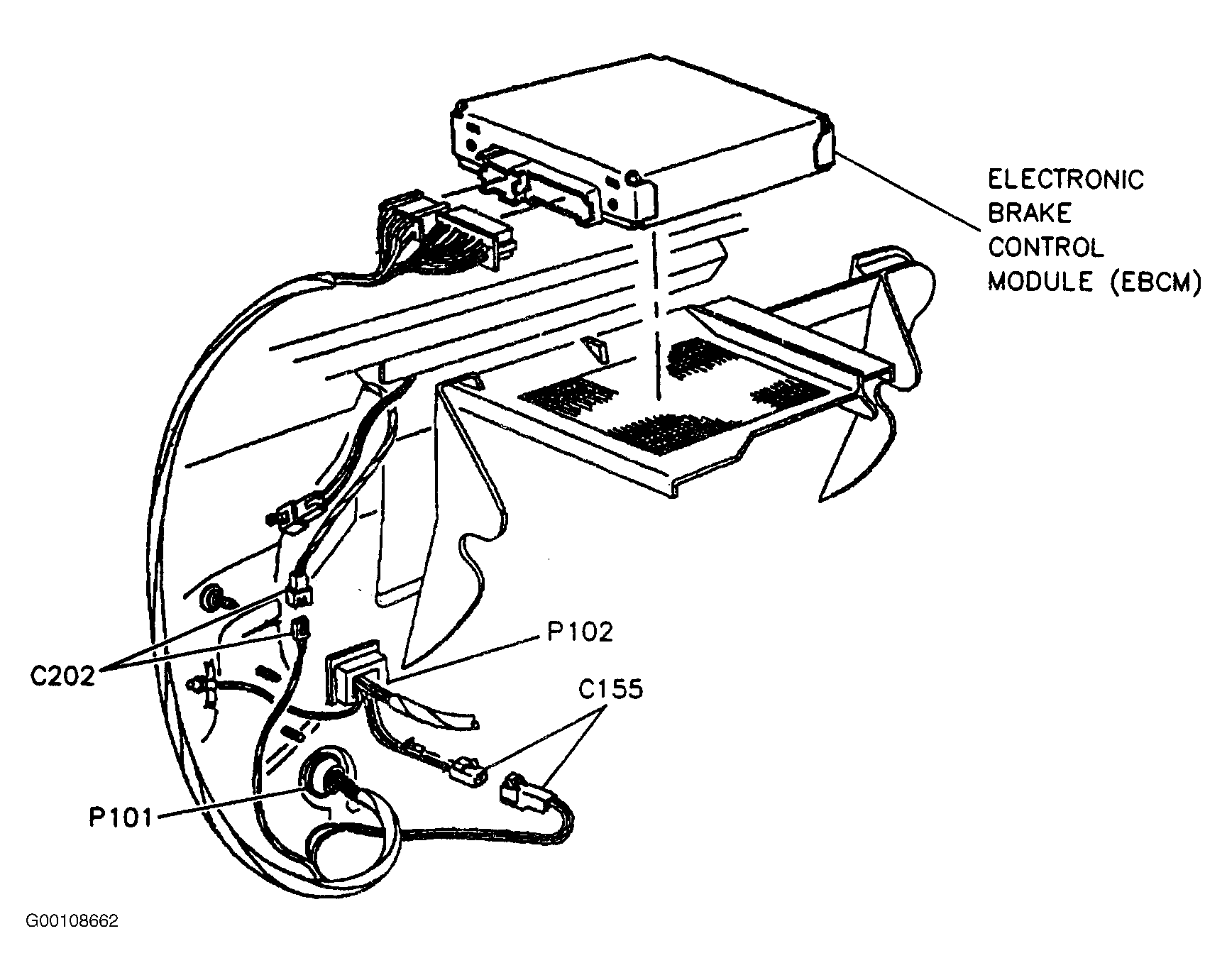

Fig 3: Locating Electronic Brake Control Module (EBCM)
G00108662Courtesy of GENERAL MOTORS CORP.

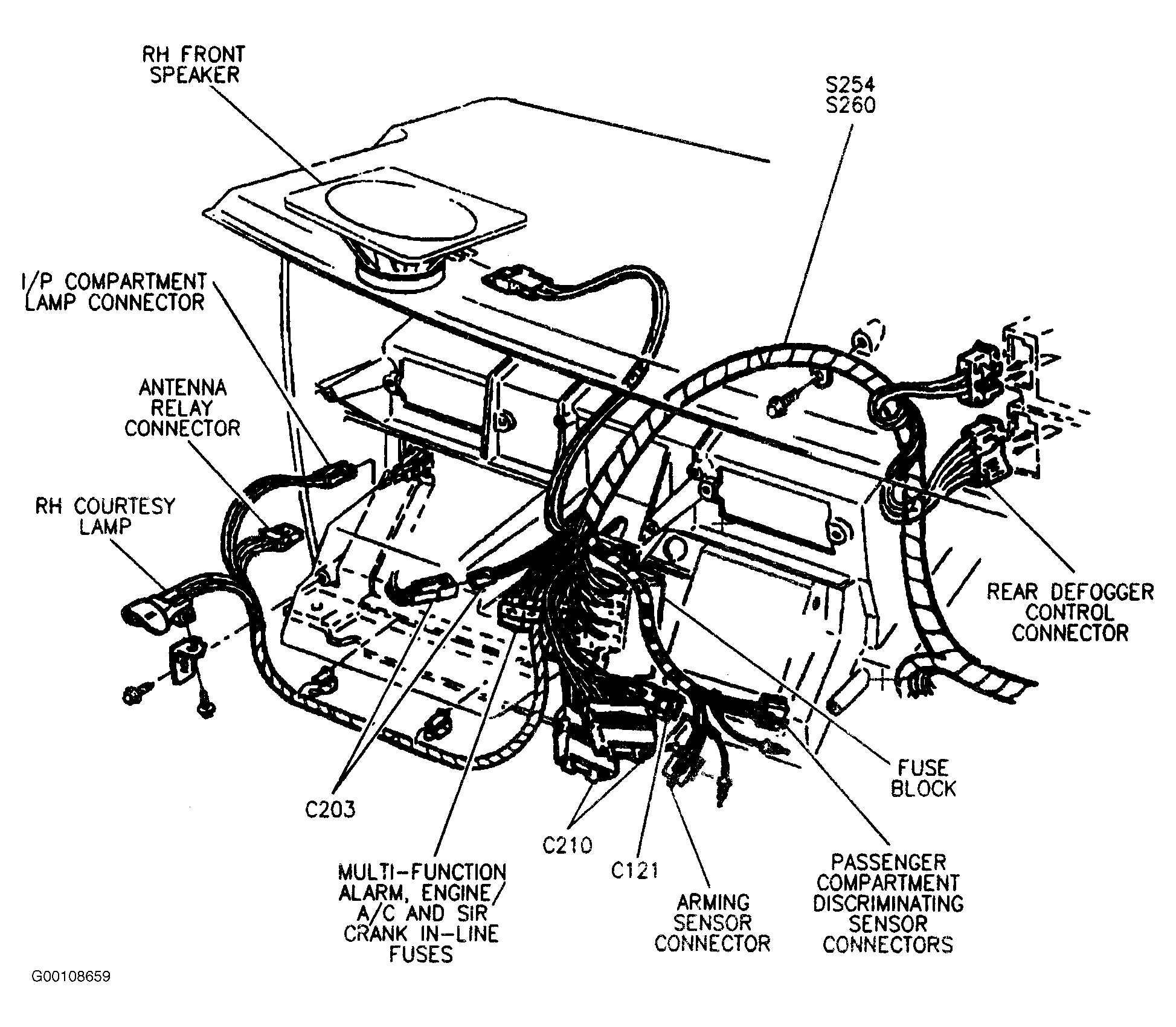

Fig 4: Locating Multi-Function Alarm In-Line Fuse
G00108659Courtesy of GENERAL MOTORS CORP.

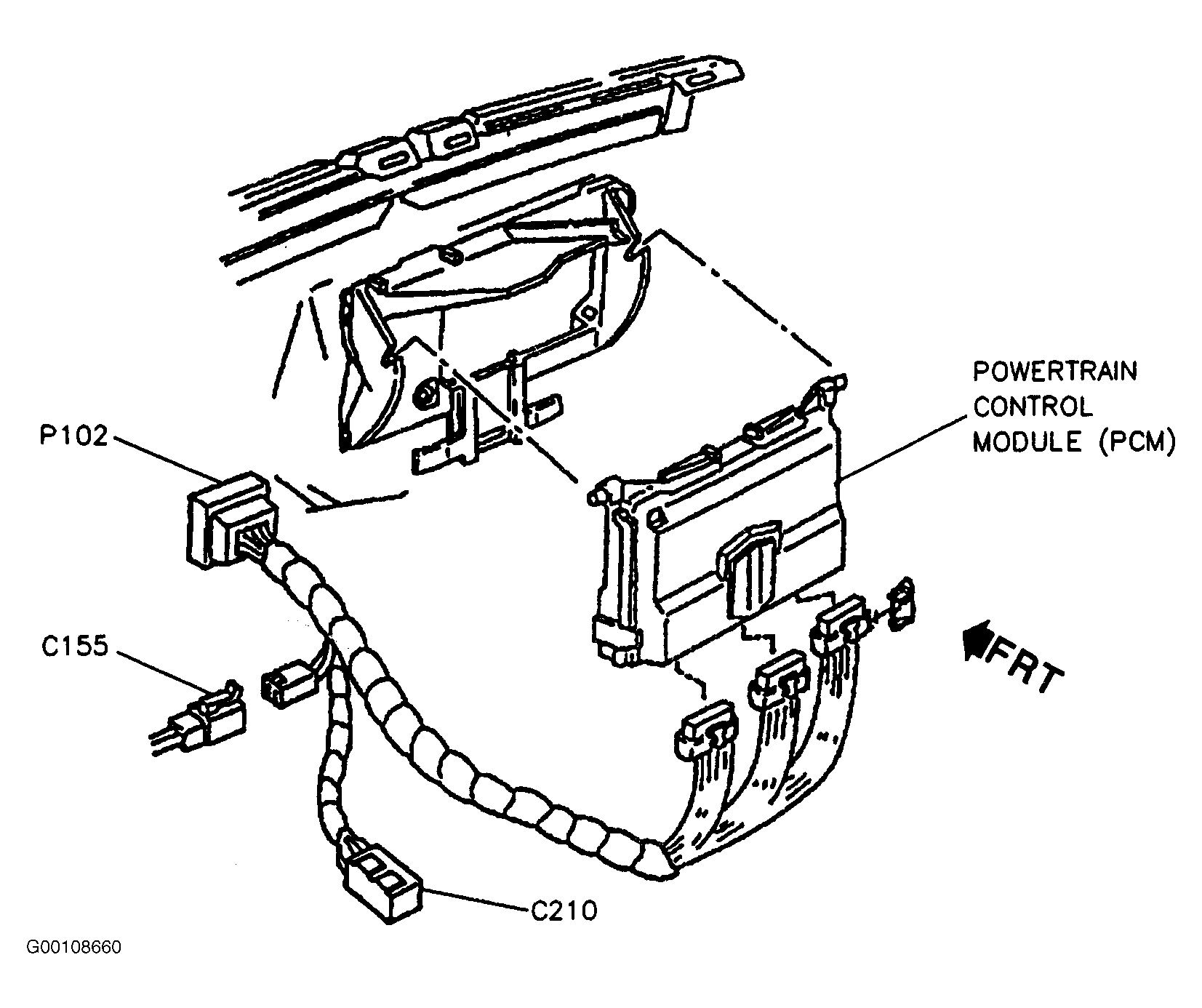

Fig 5: Locating Powertrain Control Module (PCM), Connector C210 & Grommet P102 For 4-Cyl. (VIN 4)
G00108660Courtesy of GENERAL MOTORS CORP.

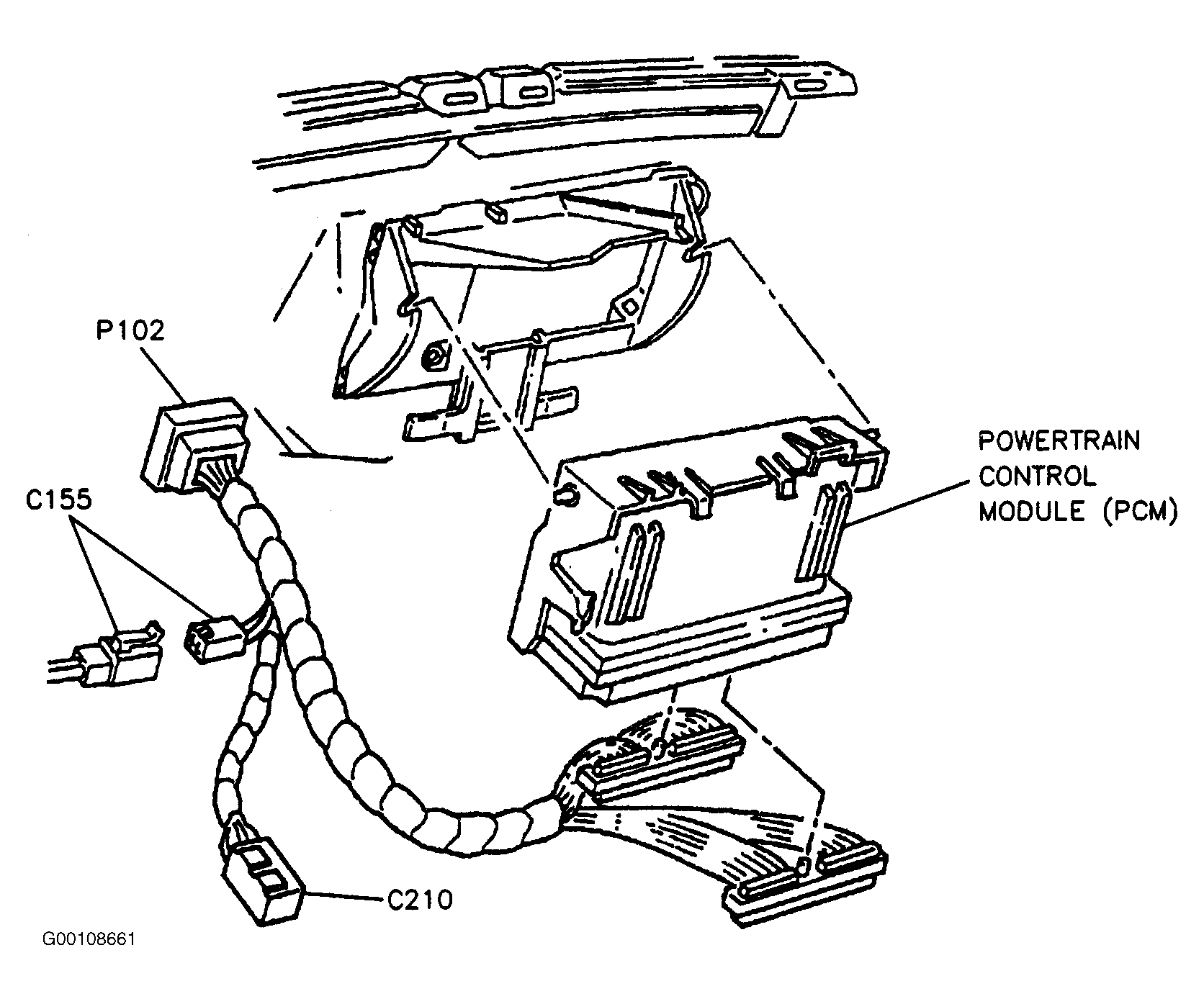

Fig 6: Locating Powertrain Control Module (PCM), Connector C210 & Grommet P102 For V6 (VIN M)
G00108661Courtesy of GENERAL MOTORS CORP.

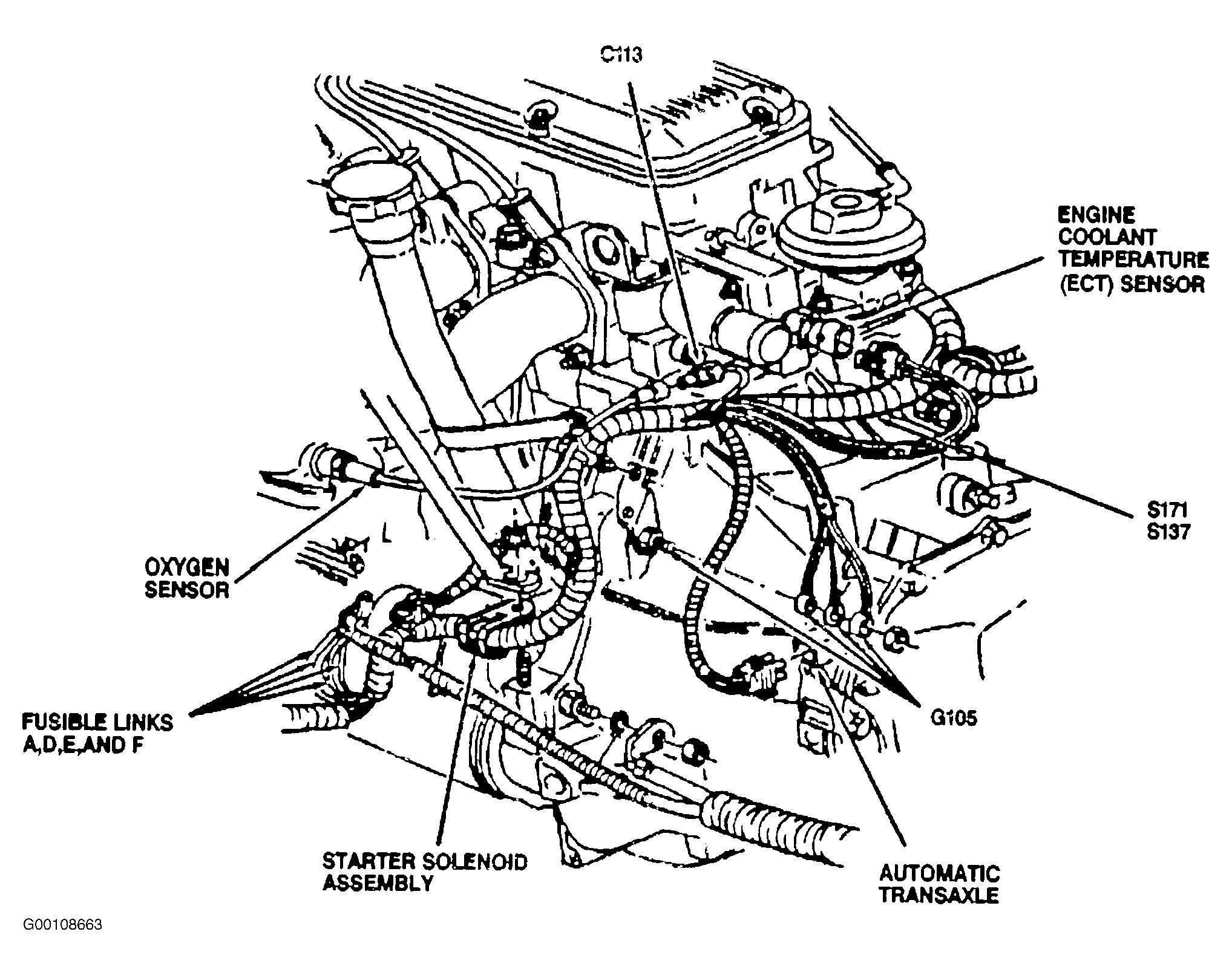

Fig 7: Locating Ground G105 & Splice S137 For 4-Cyl. (VIN L)
G00108663Courtesy of GENERAL MOTORS CORP.

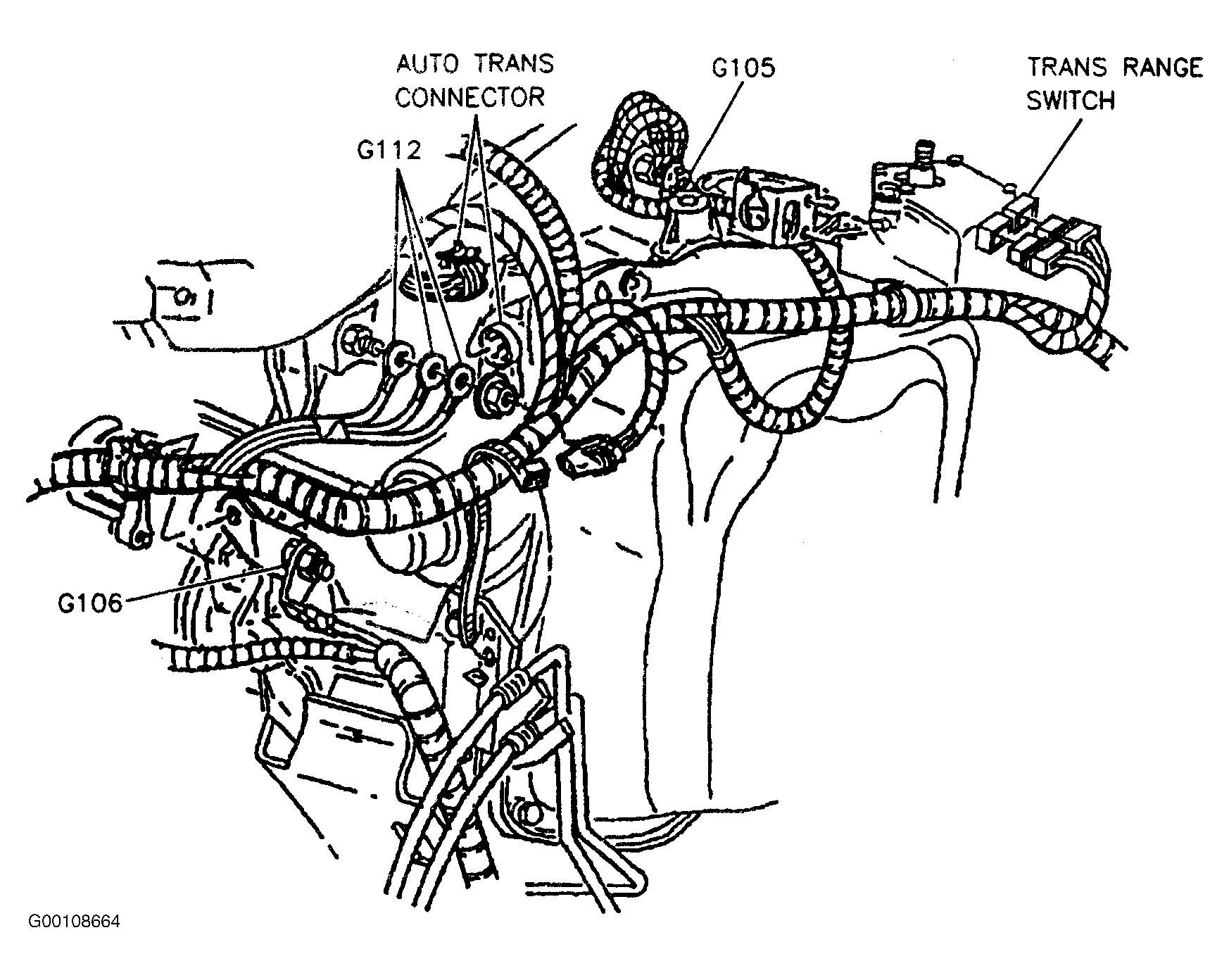

Fig 8: Locating Ground G112 & Splice S137 For V6 (VIN M)
G00108664Courtesy of GENERAL MOTORS CORP.

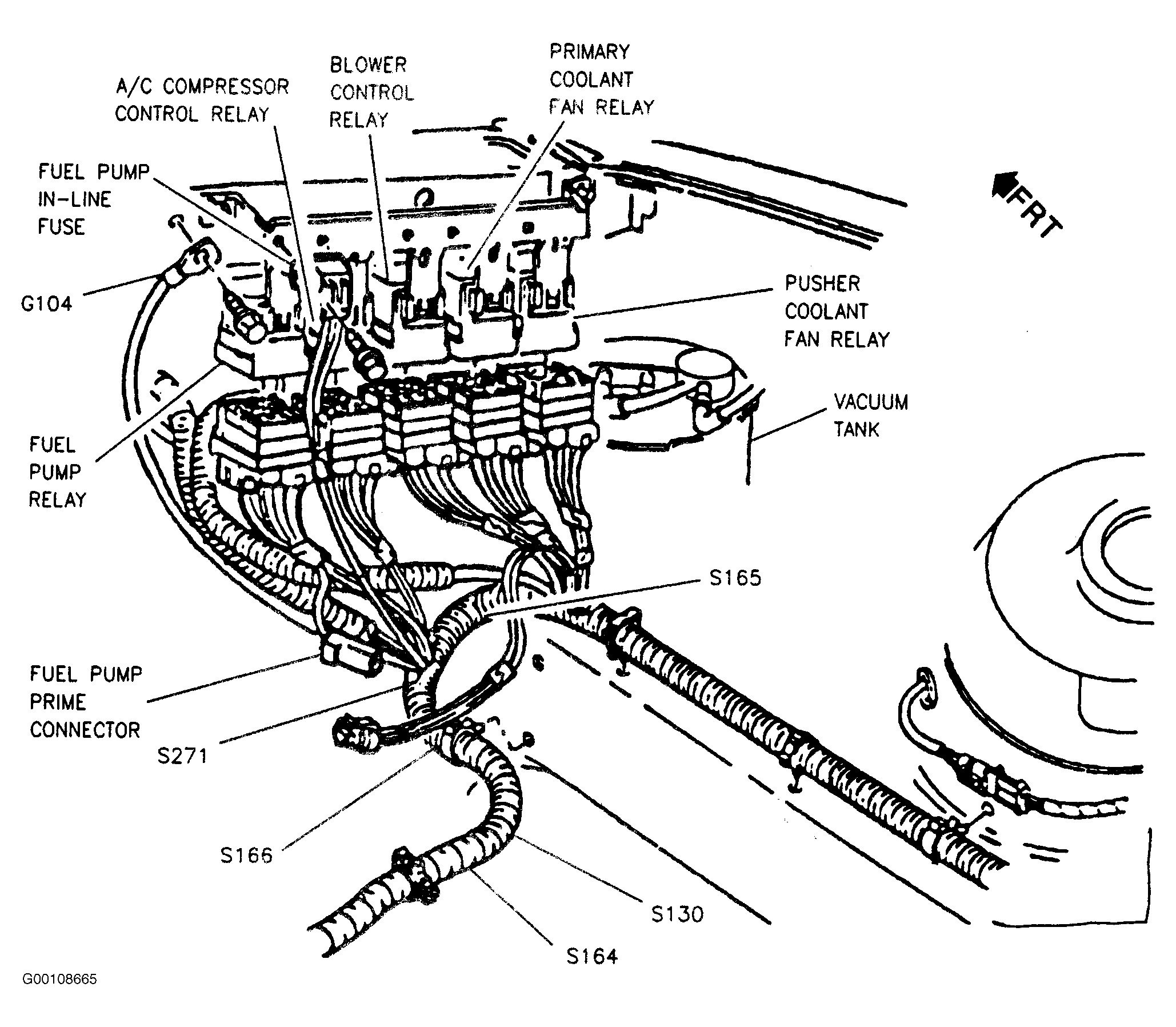

Fig 9: Locating Splice S166
G00108665Courtesy of GENERAL MOTORS CORP.

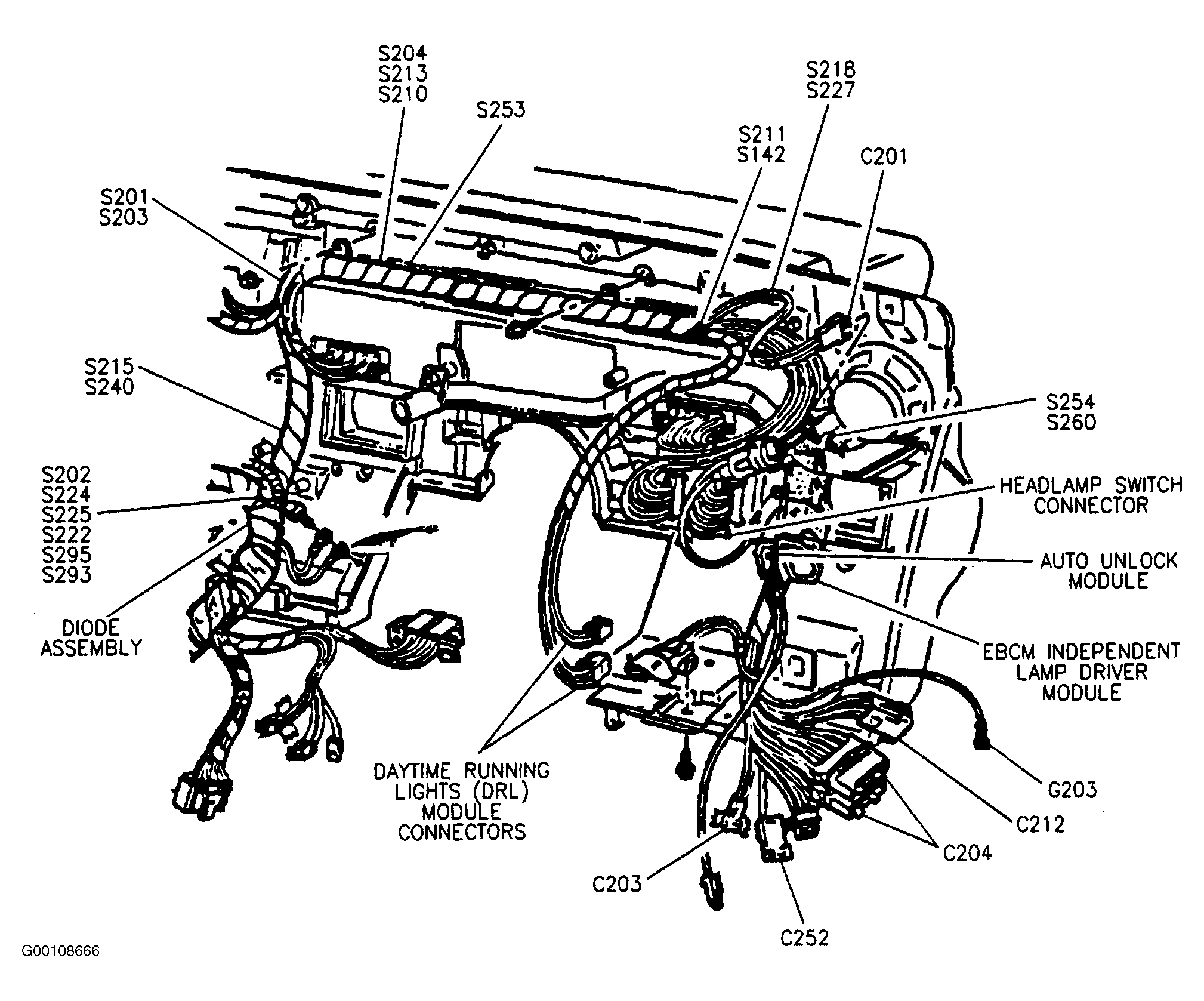

Fig 10: Locating Splice S203 & S215
G00108666Courtesy of GENERAL MOTORS CORP.
