Class 2 Serial Data Line Diagnosis

To perform diagnosis, see Fig 1 and Fig 2 .

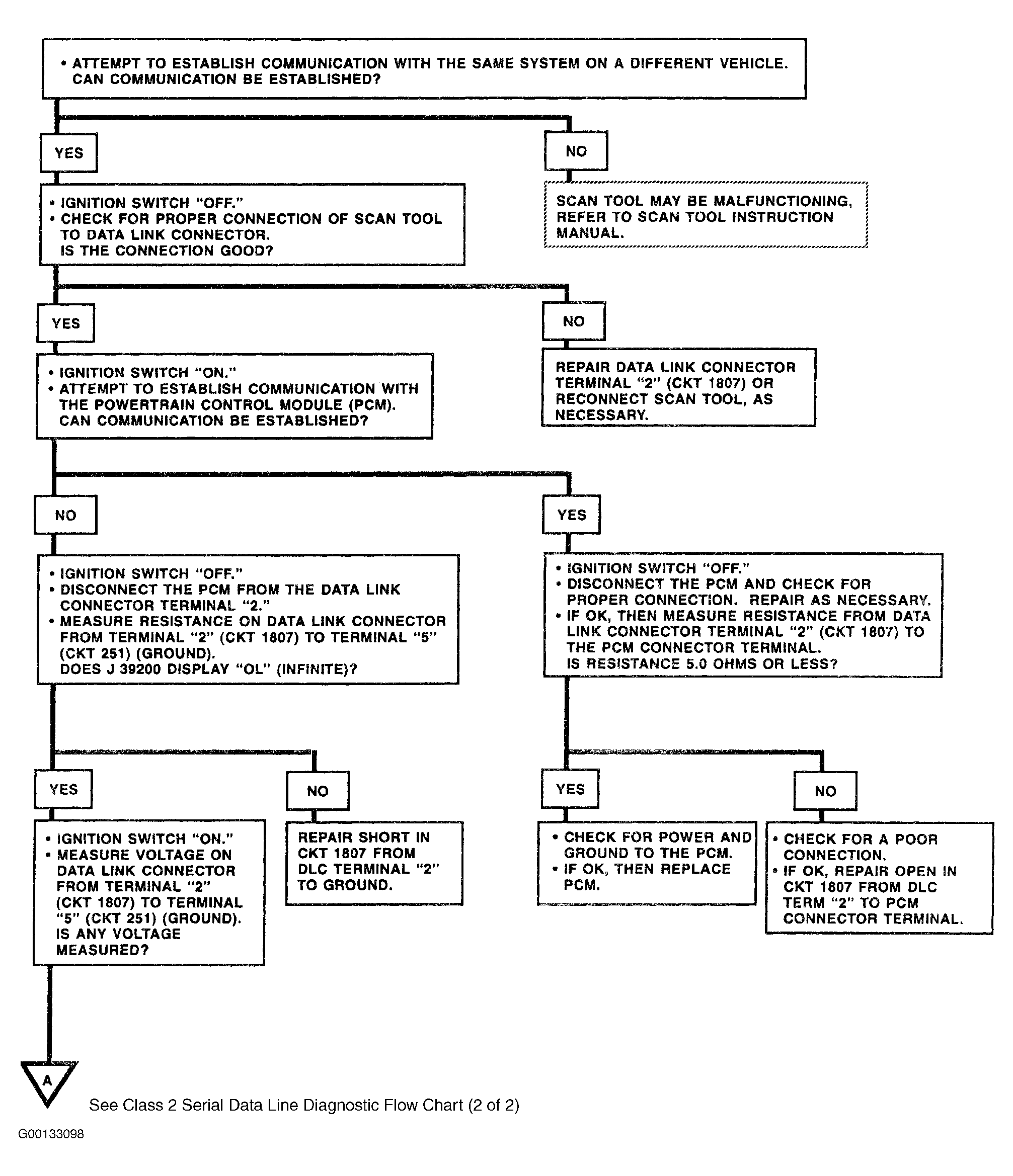

Fig 1: Class 2 Serial Data Line Diagnostic Flowchart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Class 2 Serial Data Line Diagnostic Flowchart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
