Data Link Connector

For Data Link Connector (DLC) terminal identification, see Fig 1.

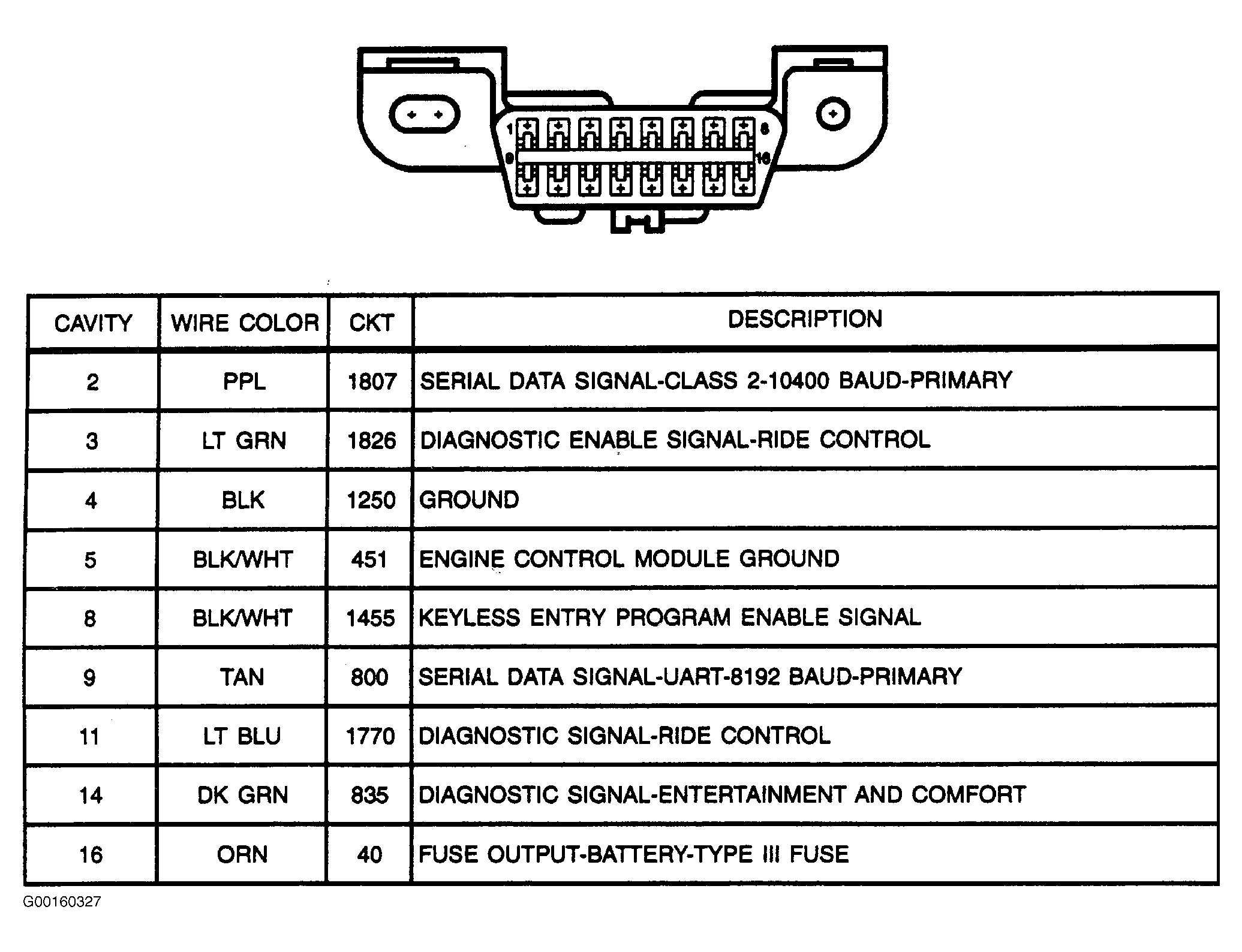

Fig 1: Identifying DLC Terminals
G00160327Courtesy of GENERAL MOTORS CORP.
