Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located on the driver's side of the instrument panel.

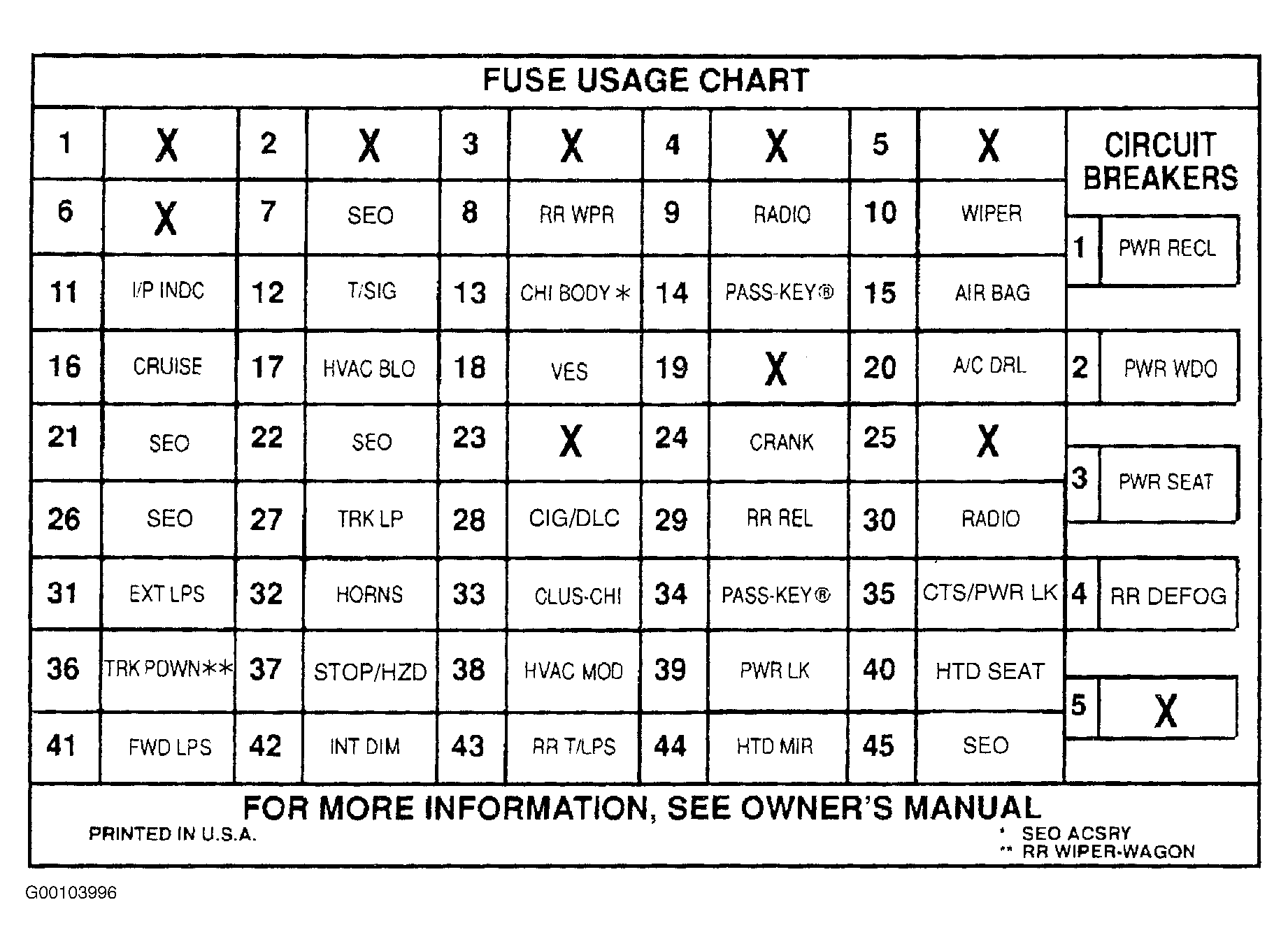

Fig 1: Identifying Instrument Panel Fuse Block Components
G00103996Courtesy of GENERAL MOTORS CORP.

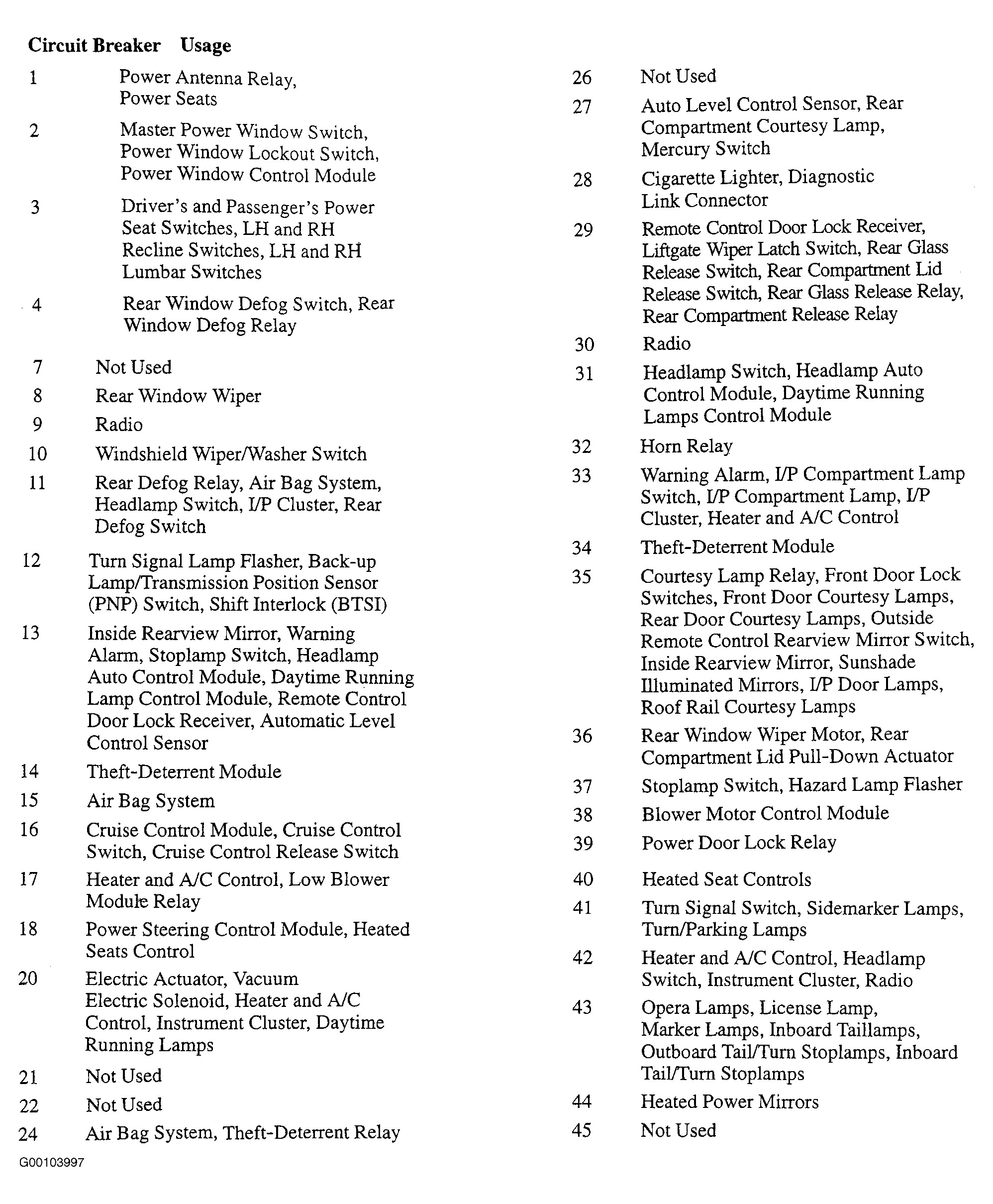

Fig 2: Instrument Panel Fuse Block Legend
G00103997Courtesy of GENERAL MOTORS CORP.
