Component Locations

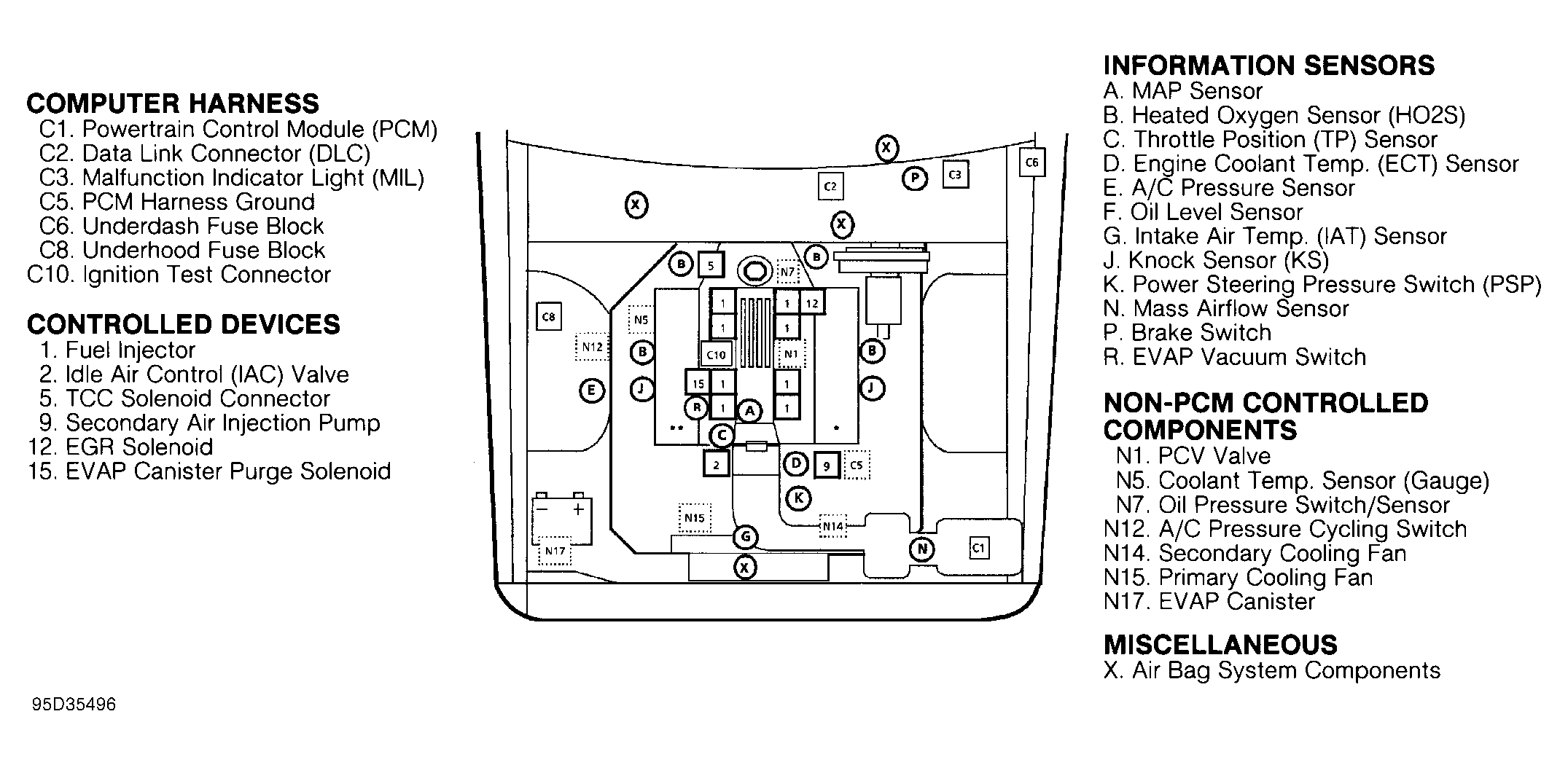

Fig 1: Component Locations (Caprice, Impala SS & Roadmaster)
G95D35496Courtesy of GENERAL MOTORS CORP.

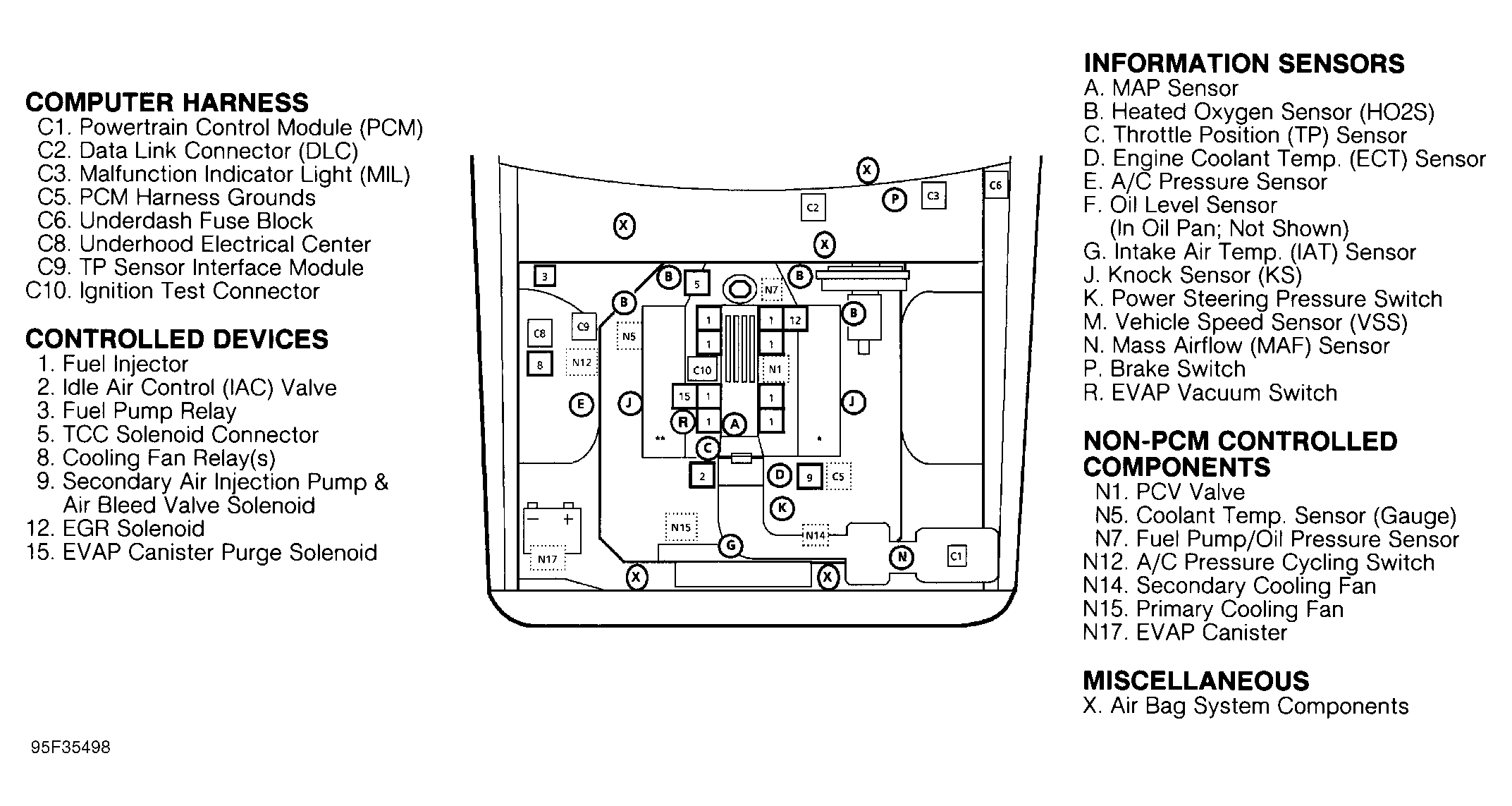

Fig 2: Component Locations (Fleetwood)
G95F35498Courtesy of GENERAL MOTORS CORP.
