Connector Terminal Identification
›
Automatic Transaxle
›
Century & Regal
›
Automatic Transaxle Control (BTSI)
Automatic Transaxle Control (BTSI)

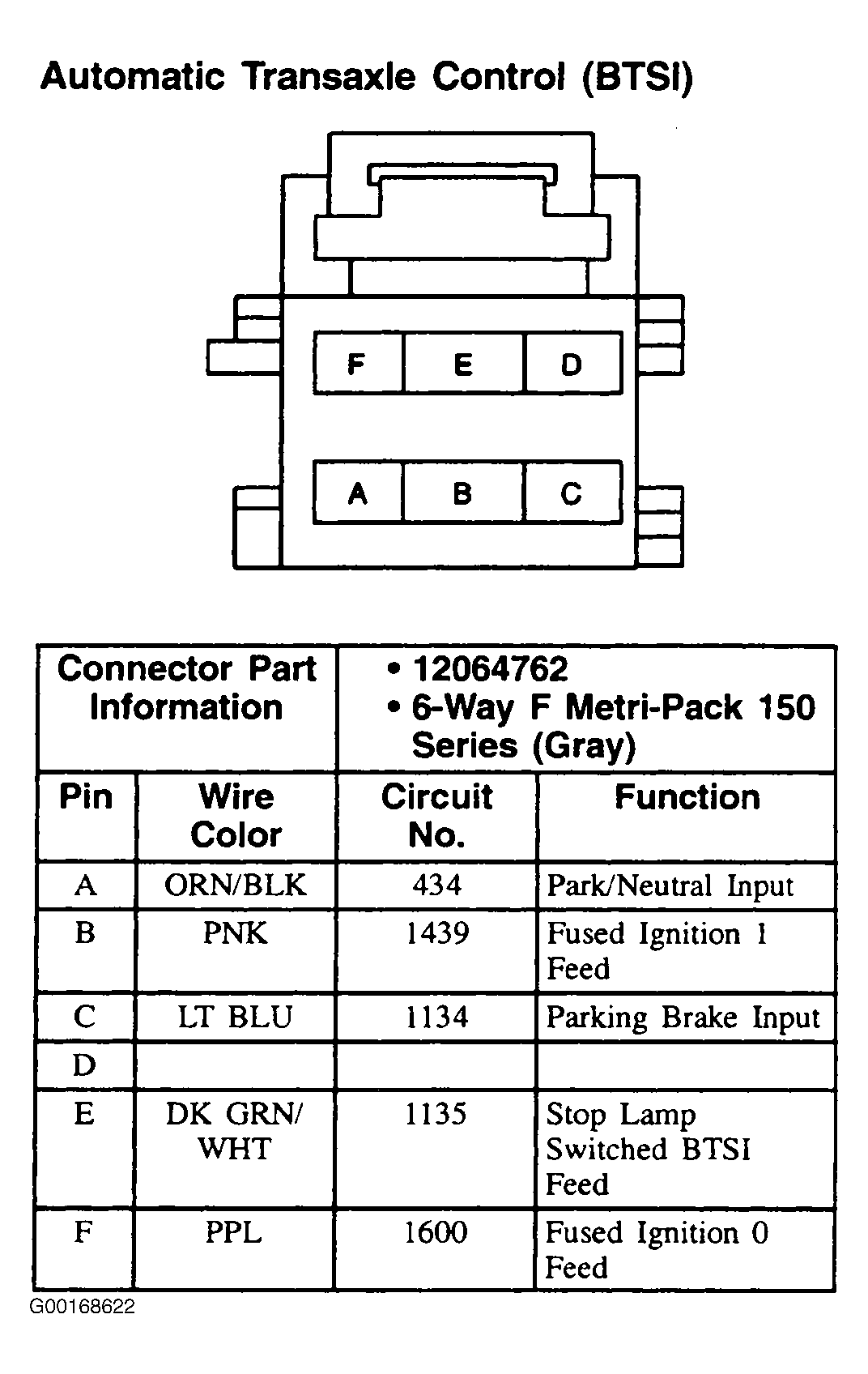

Fig 1: Automatic Transaxle Control (BTSI) (Century & Regal) - 6-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
