Connector Terminal Identification
›
Blower Motor
›
Century & Regal
›
Blower Motor Control Module
Blower Motor Control Module

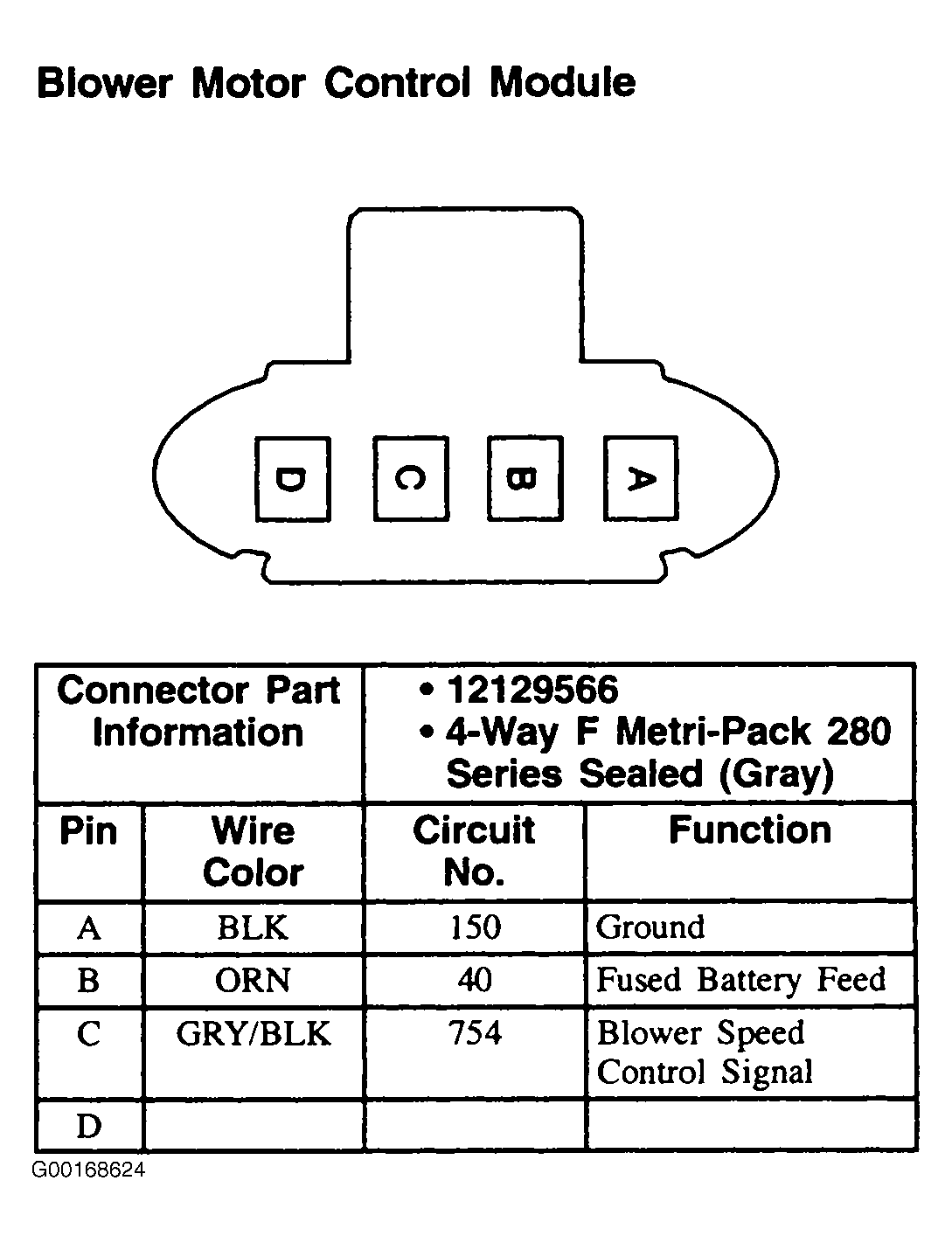

Fig 1: Blower Motor Control Module (Century & Regal) - 4-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
