Connector Terminal Identification
›
Body Control Module (BCM)
›
Century & Regal
›
Body Control Module (BCM) C3
Body Control Module (BCM) C3

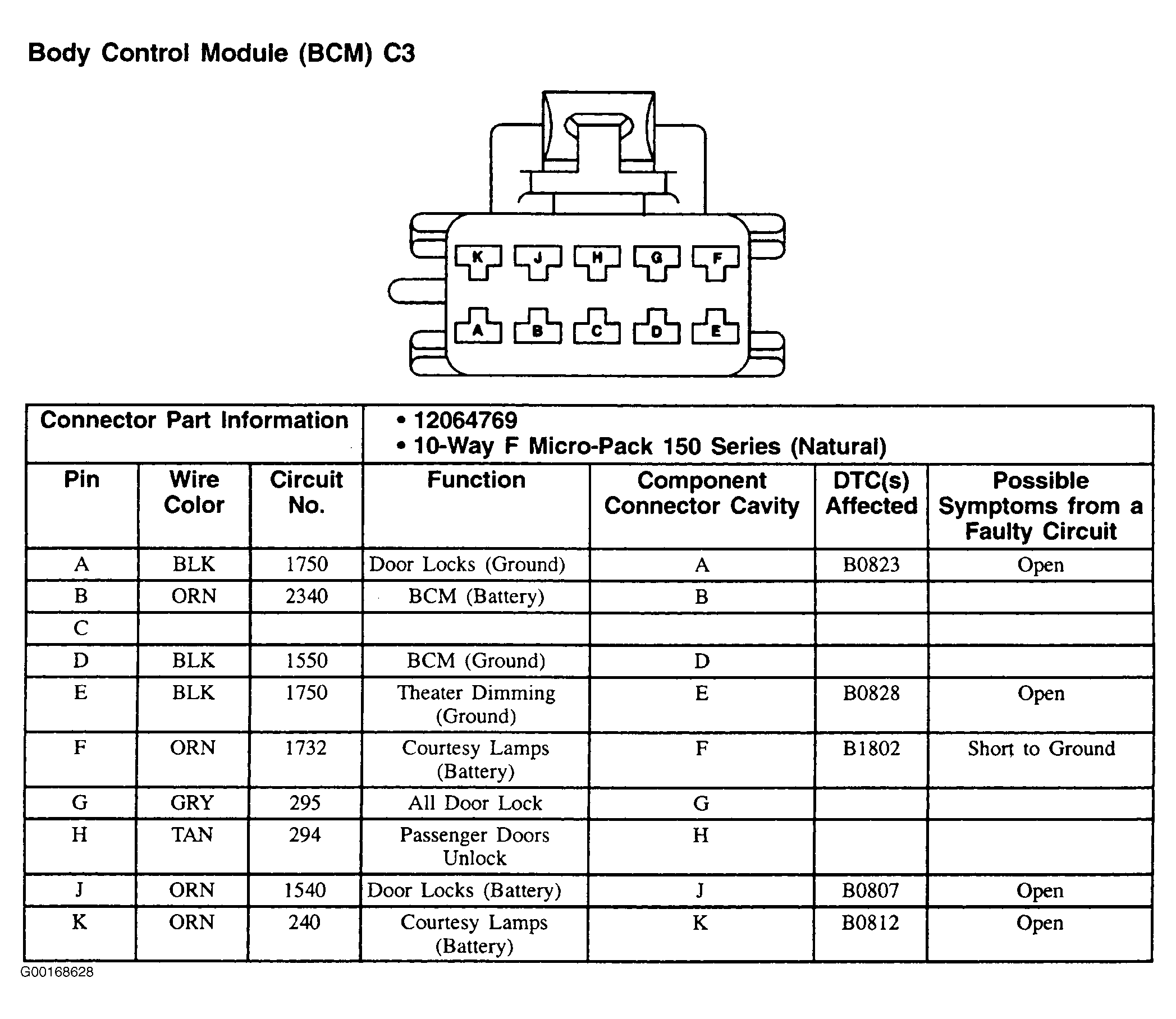

Fig 1: Body Control Module (BCM) C3 (Century & Regal) - 10-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
