Buick
›
1997
›
Century Custom
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Connector Terminal Identification
›
Connectors C-100 To C-430
›
C120
›
Grand Prix
Grand Prix

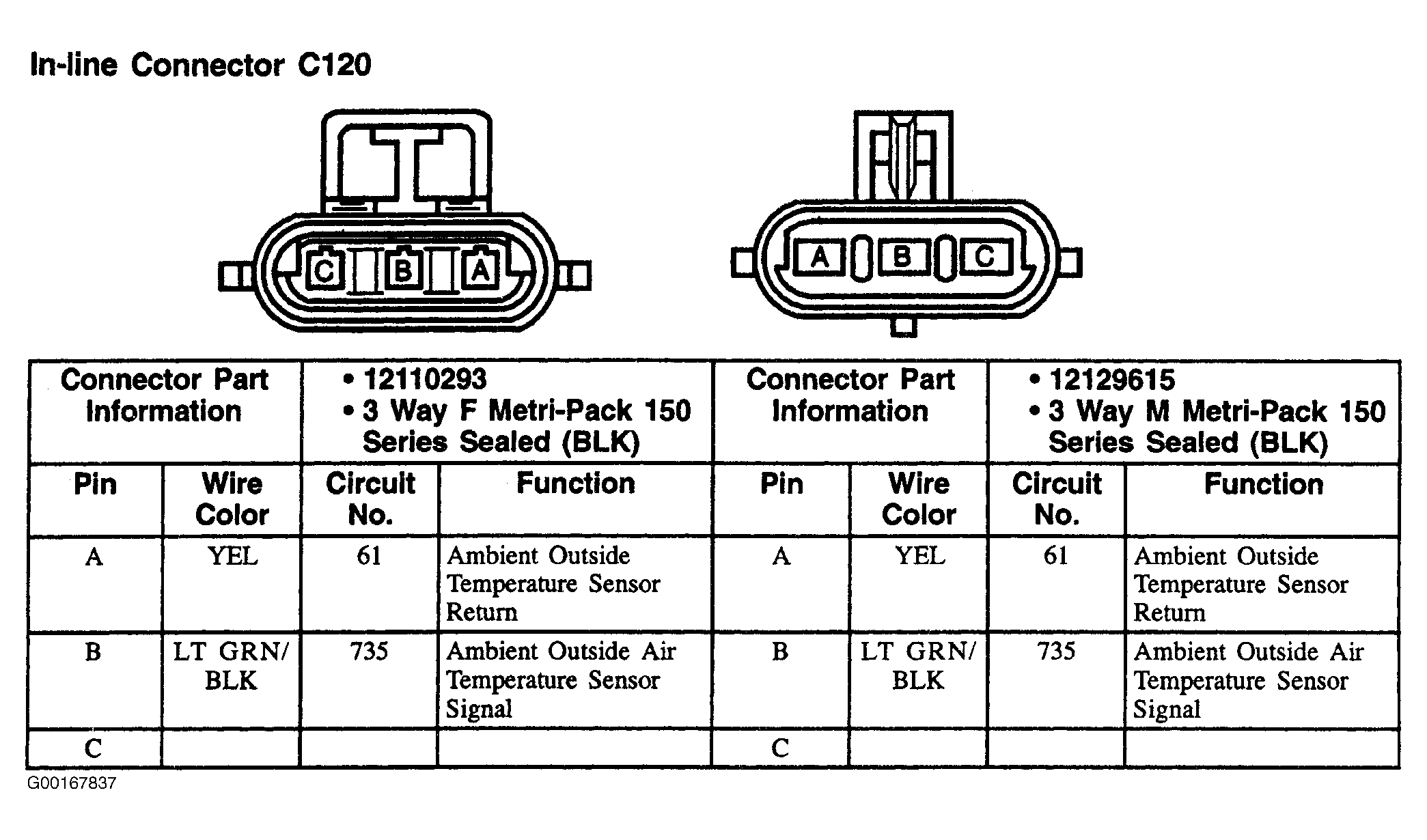

Fig 1: C120 (Grand Prix) - 3-Pin Connector (Black/Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
