Connector Terminal Identification
›
Connectors C-100 To C-430
›
C171
›
Grand Prix
Grand Prix

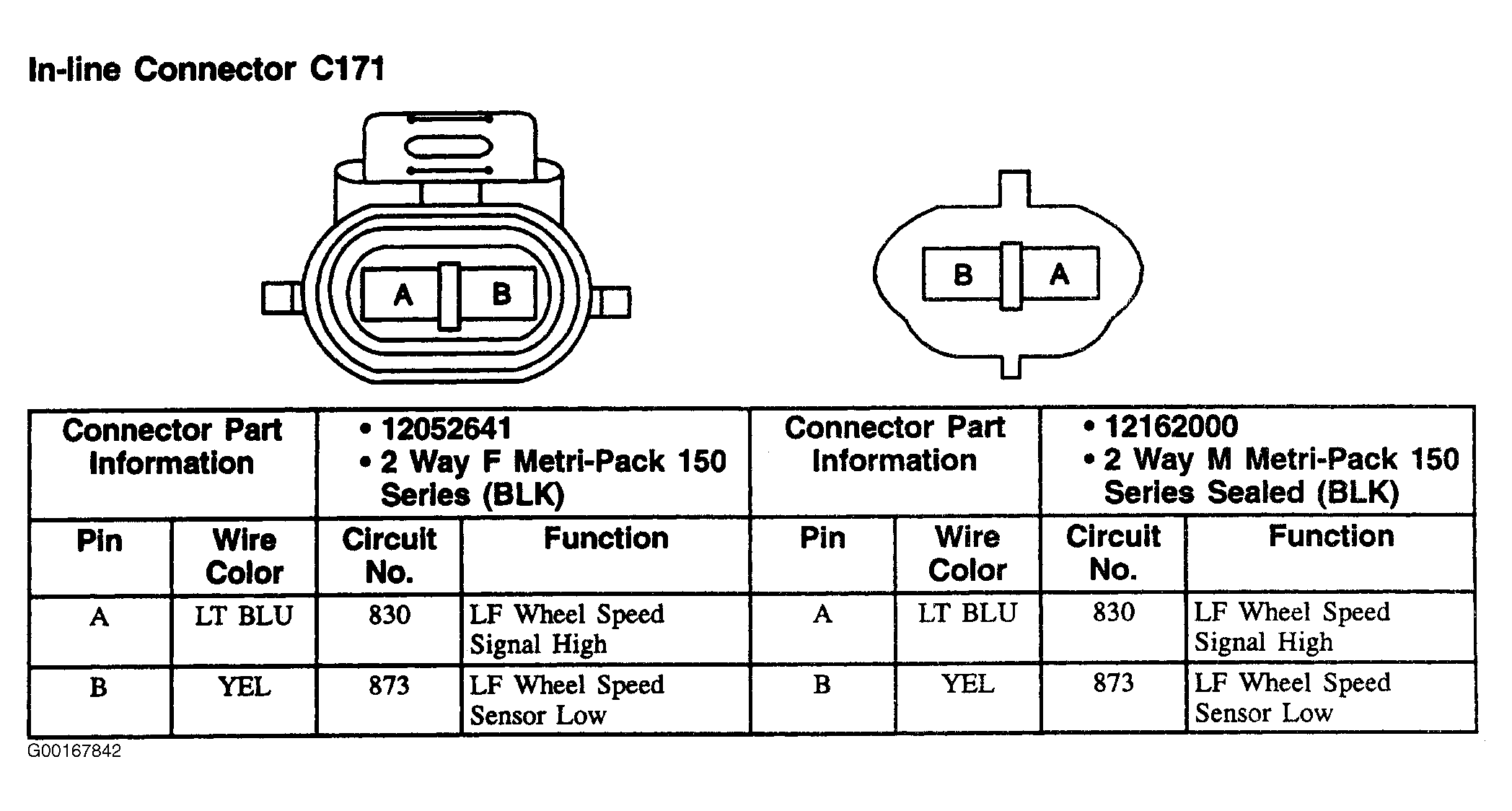

Fig 1: C171 (Grand Prix) - 2-Pin Connector (Black/Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
