Grand Prix

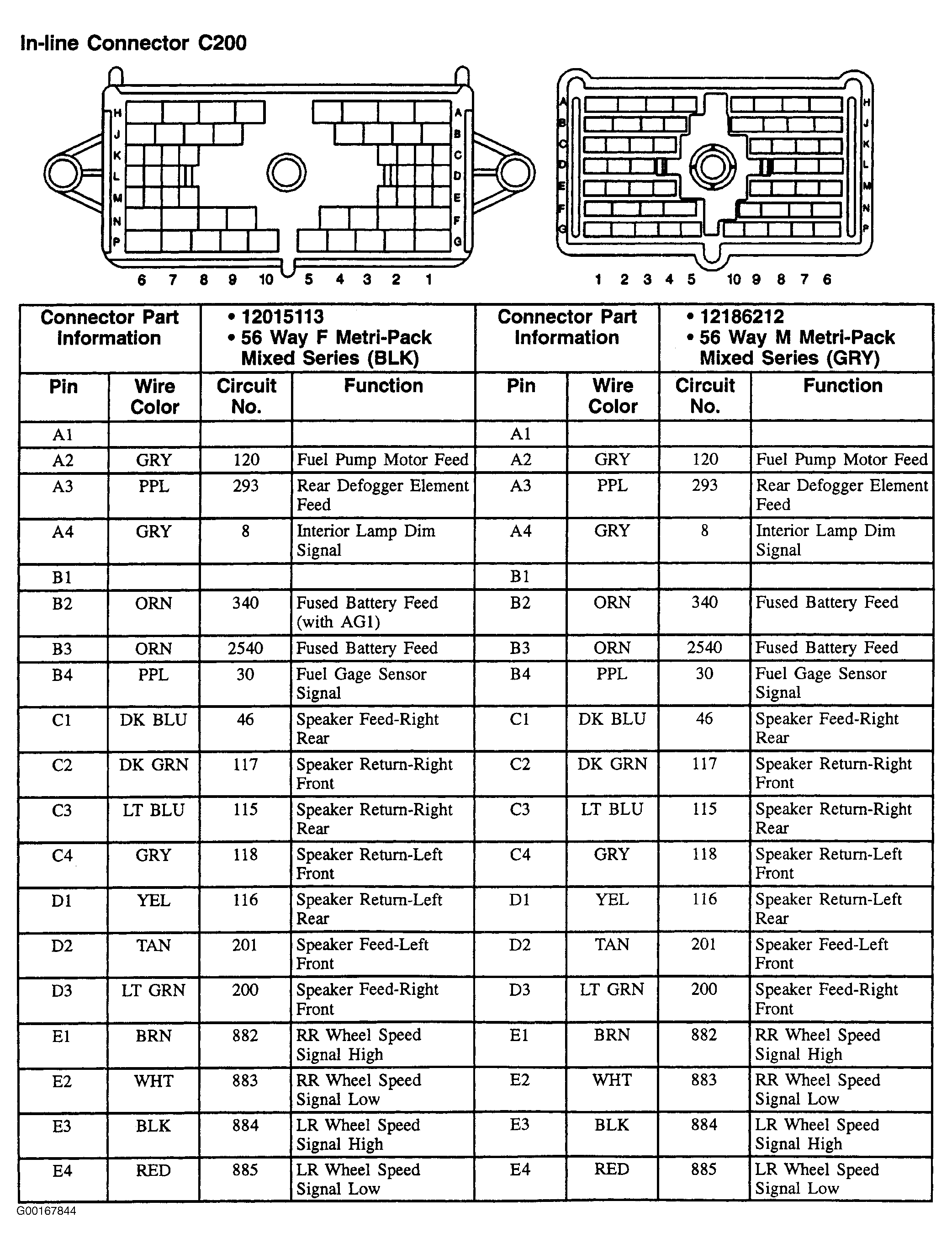

Fig 1: C200 (Grand Prix) - 56-Pin Connector (Row A1-E4, Black/Gray)
G00167844Courtesy of GENERAL MOTORS CORP.

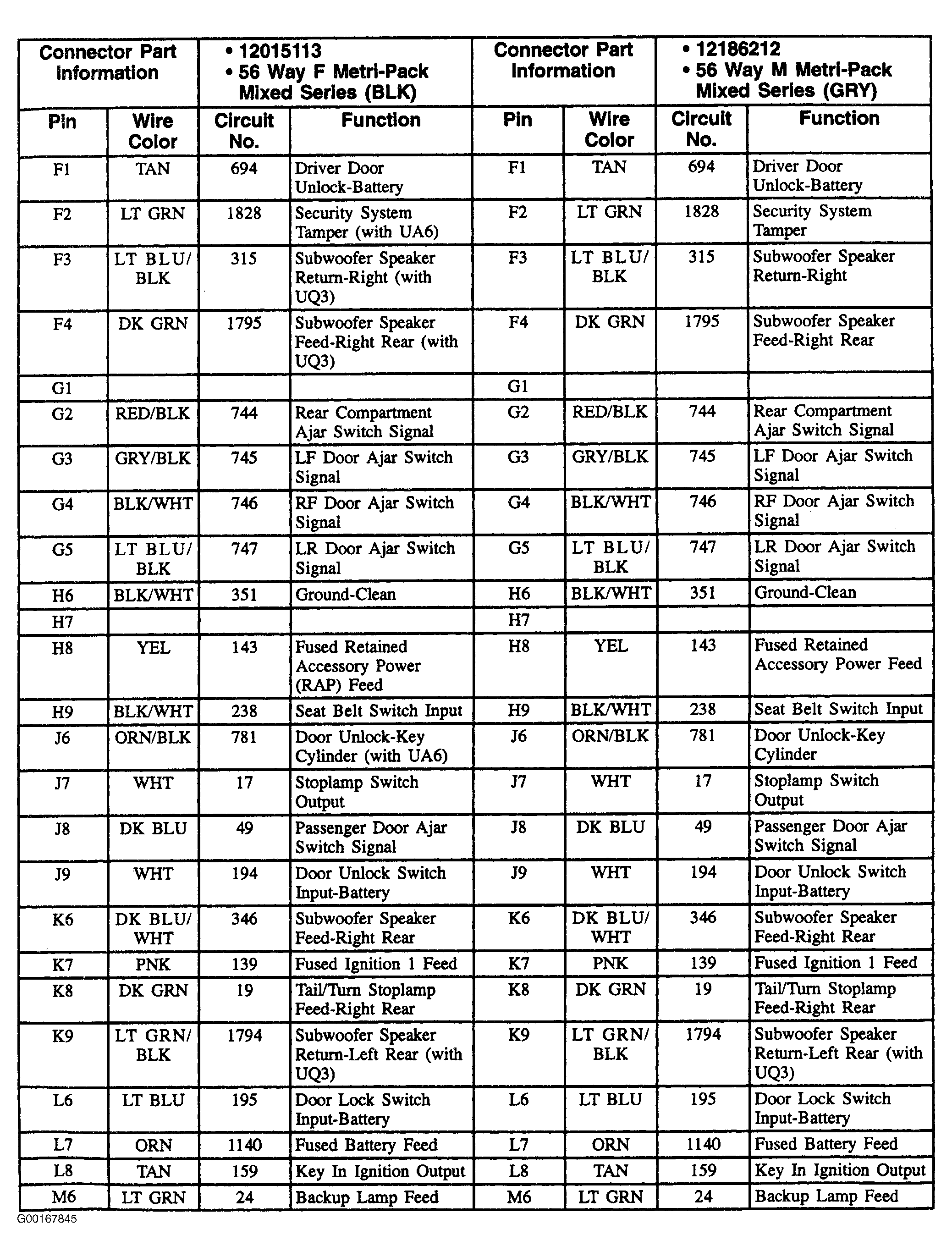

Fig 2: C200 (Grand Prix) - 56-Pin Connector (Row F1-M6, Black/Gray)
G00167845Courtesy of GENERAL MOTORS CORP.

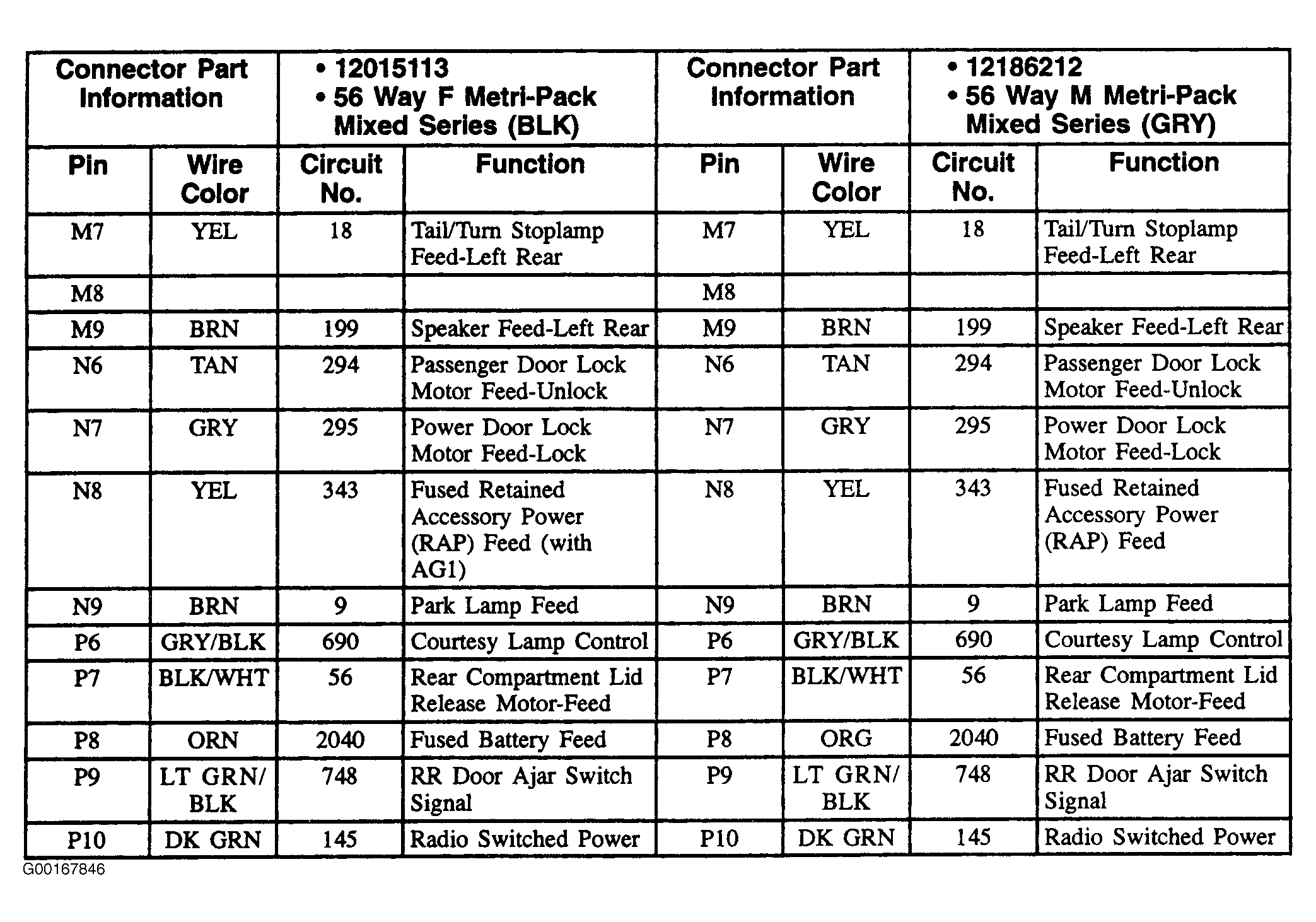

Fig 3: C200 (Grand Prix) - 56-Pin Connector (Row M7-P10, Black/Gray)
G00167846Courtesy of GENERAL MOTORS CORP.
