Connector Terminal Identification
›
Connectors C-100 To C-430
›
C205
›
Grand Prix
Grand Prix

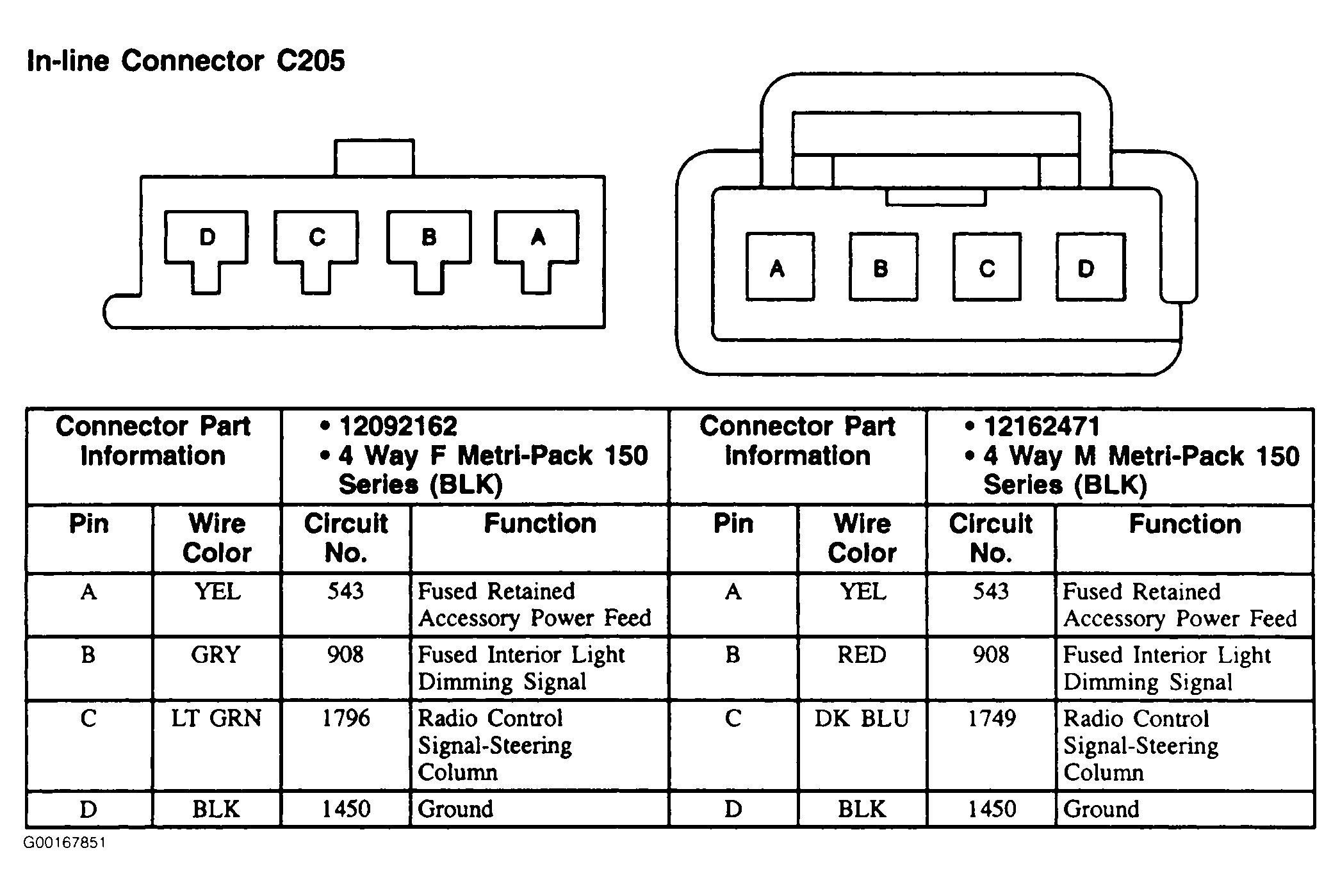

Fig 1: C205 (Grand Prix) - 4-Pin Connector (Black/Black)
Courtesy of GENERAL MOTORS CORP.
