Connector Terminal Identification
›
Connectors C-100 To C-430
›
C218
›
Grand Prix
Grand Prix

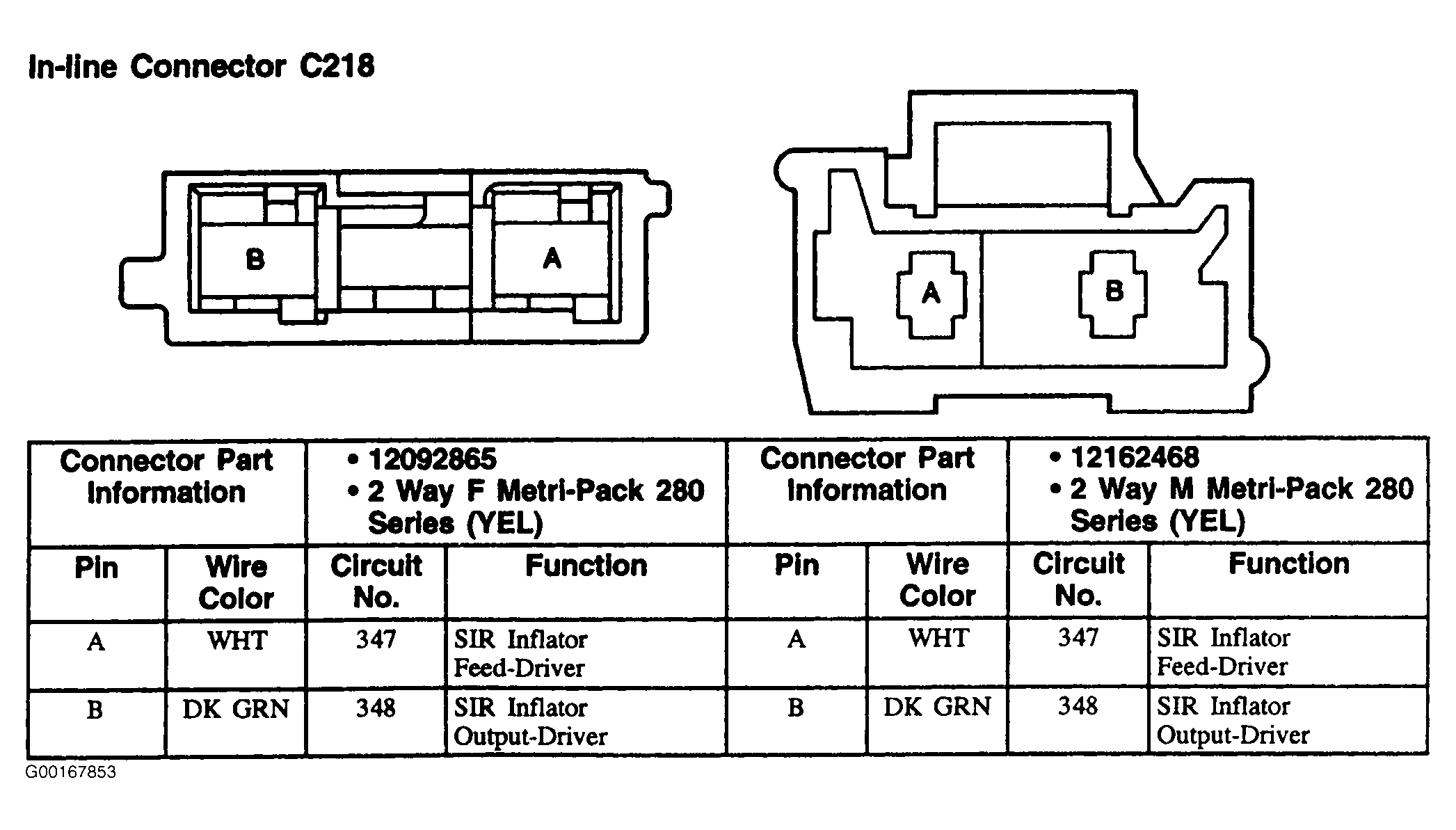

Fig 1: C218 (Grand Prix) - 2-Pin Connector (Yellow/Yellow)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
