Connectors C-100 To C-430: C245: Chevrolet

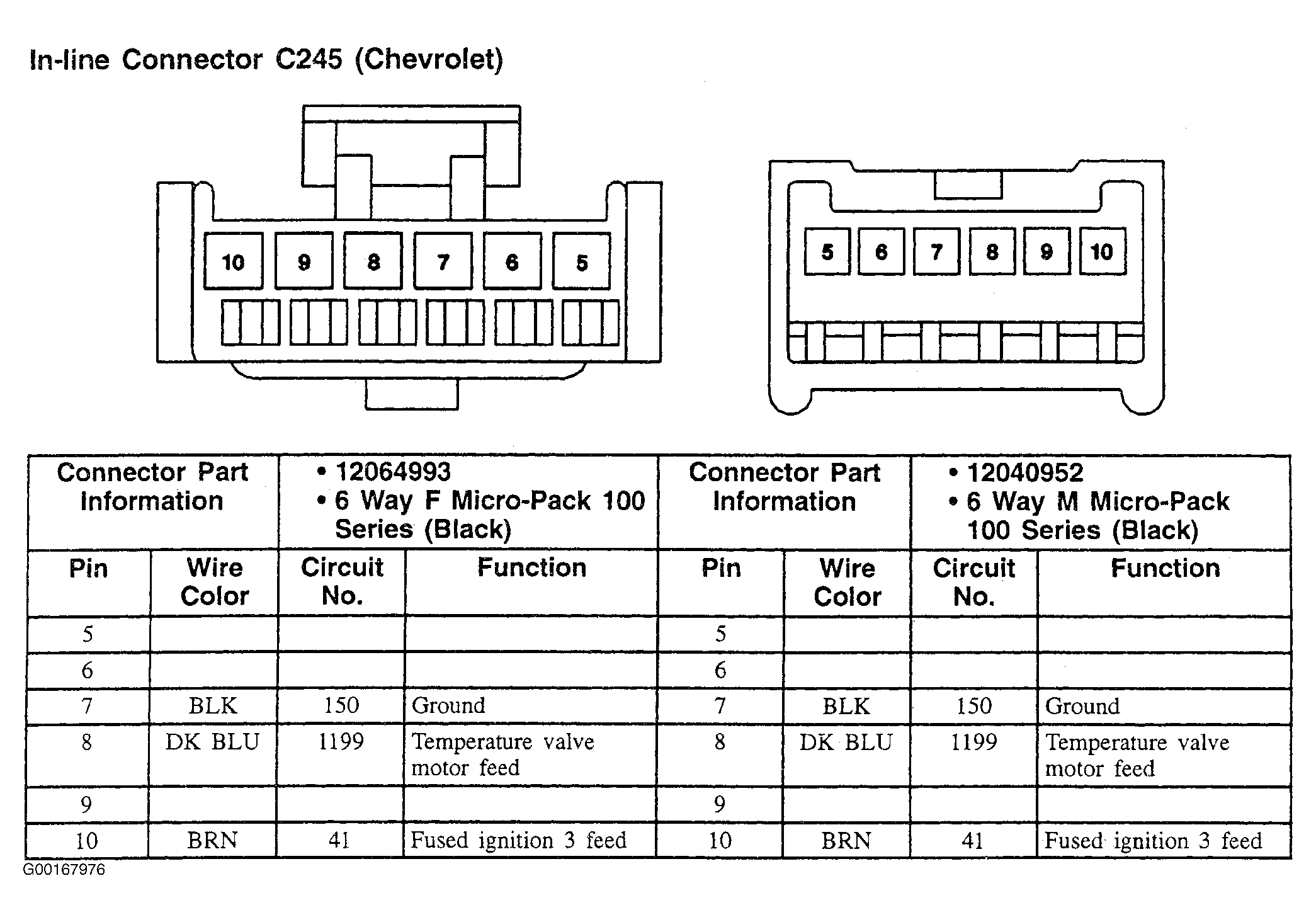

Fig 1: C245 (Chevrolet) - 6-Pin Connector (Black)
G00167976Courtesy of GENERAL MOTORS CORP.
