Grand Prix

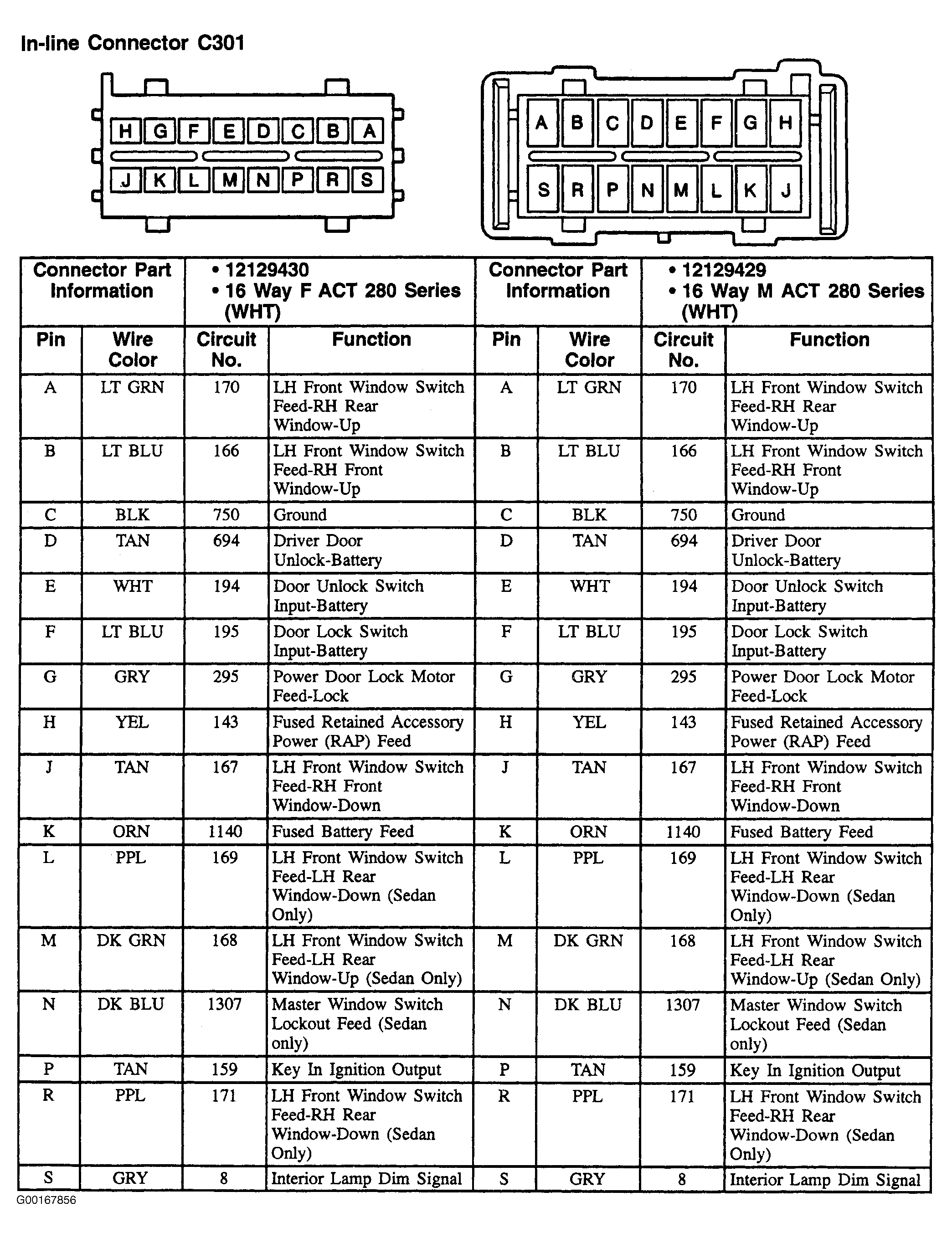

Fig 1: C301 (Grand Prix) - 16-Pin Connector (White/White)
G00167856Courtesy of GENERAL MOTORS CORP.
