Grand Prix

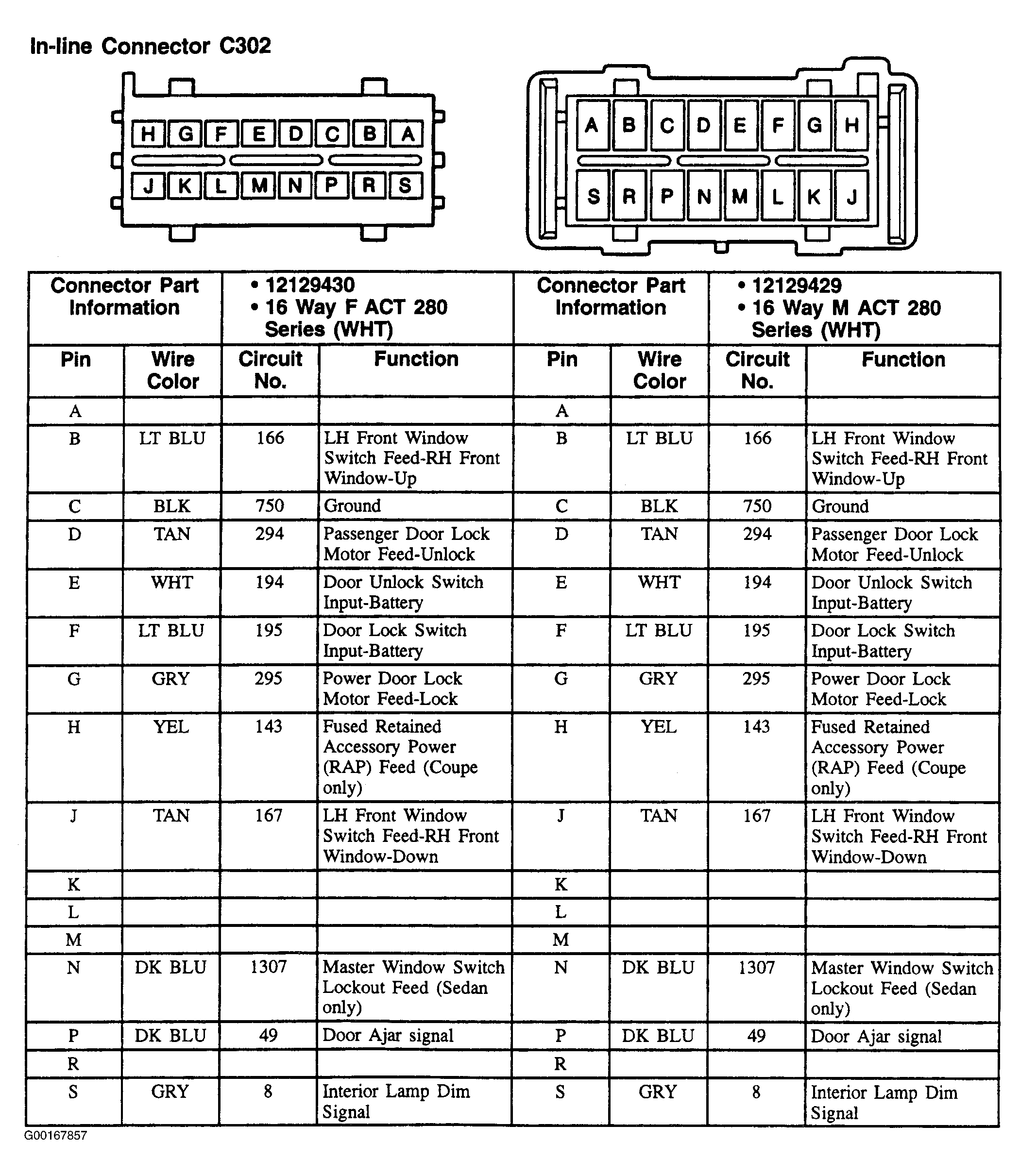

Fig 1: C302 (Grand Prix) - 16-Pin Connector (White/White)
G00167857Courtesy of GENERAL MOTORS CORP.
