Connector Terminal Identification
›
Connectors C-100 To C-430
›
C400
›
Grand Prix
Grand Prix

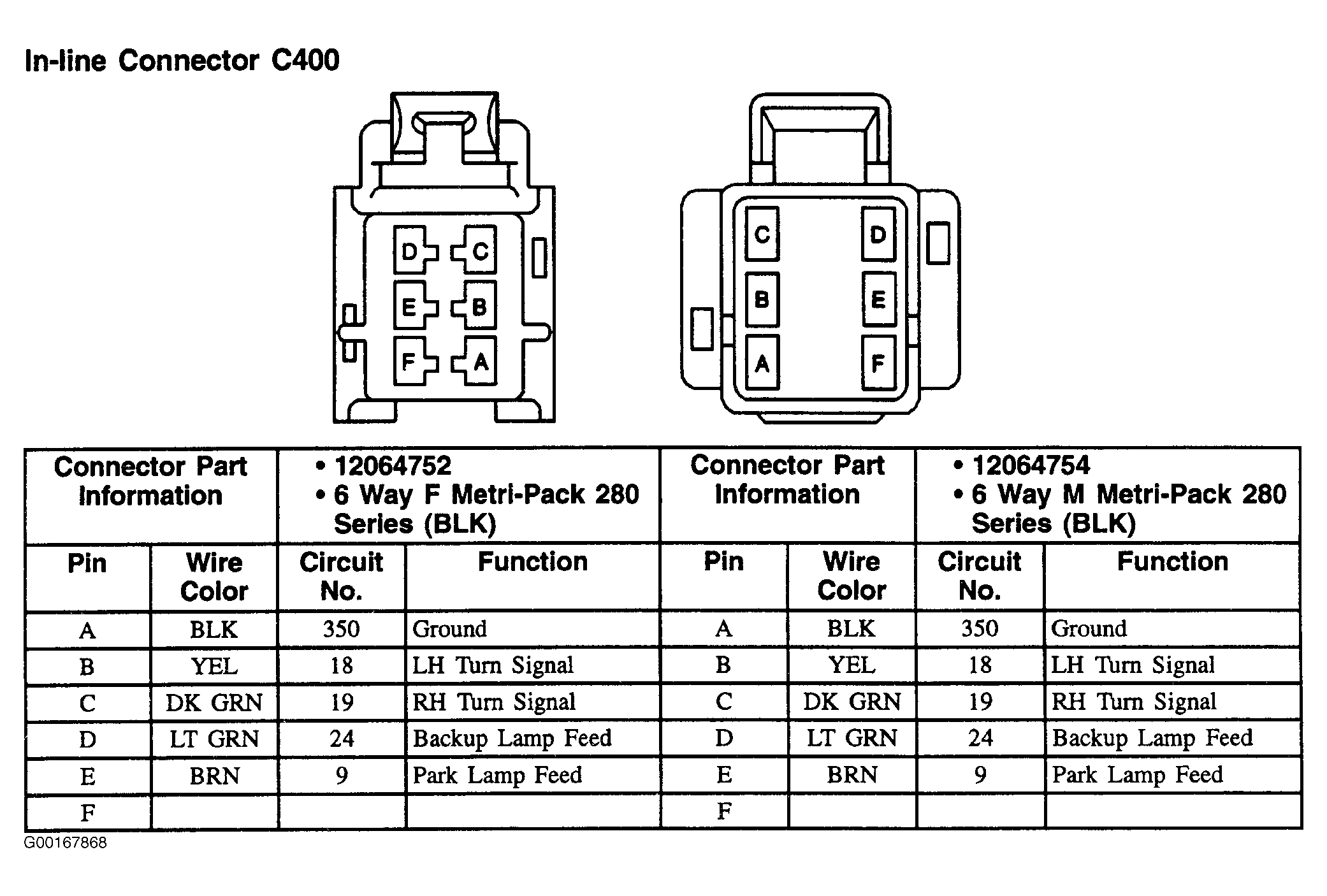

Fig 1: C400 (Grand Prix) - 6-Pin Connector (Black/Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
