Connector Terminal Identification
›
Connectors C-100 To C-430
›
C405
›
Grand Prix
Grand Prix

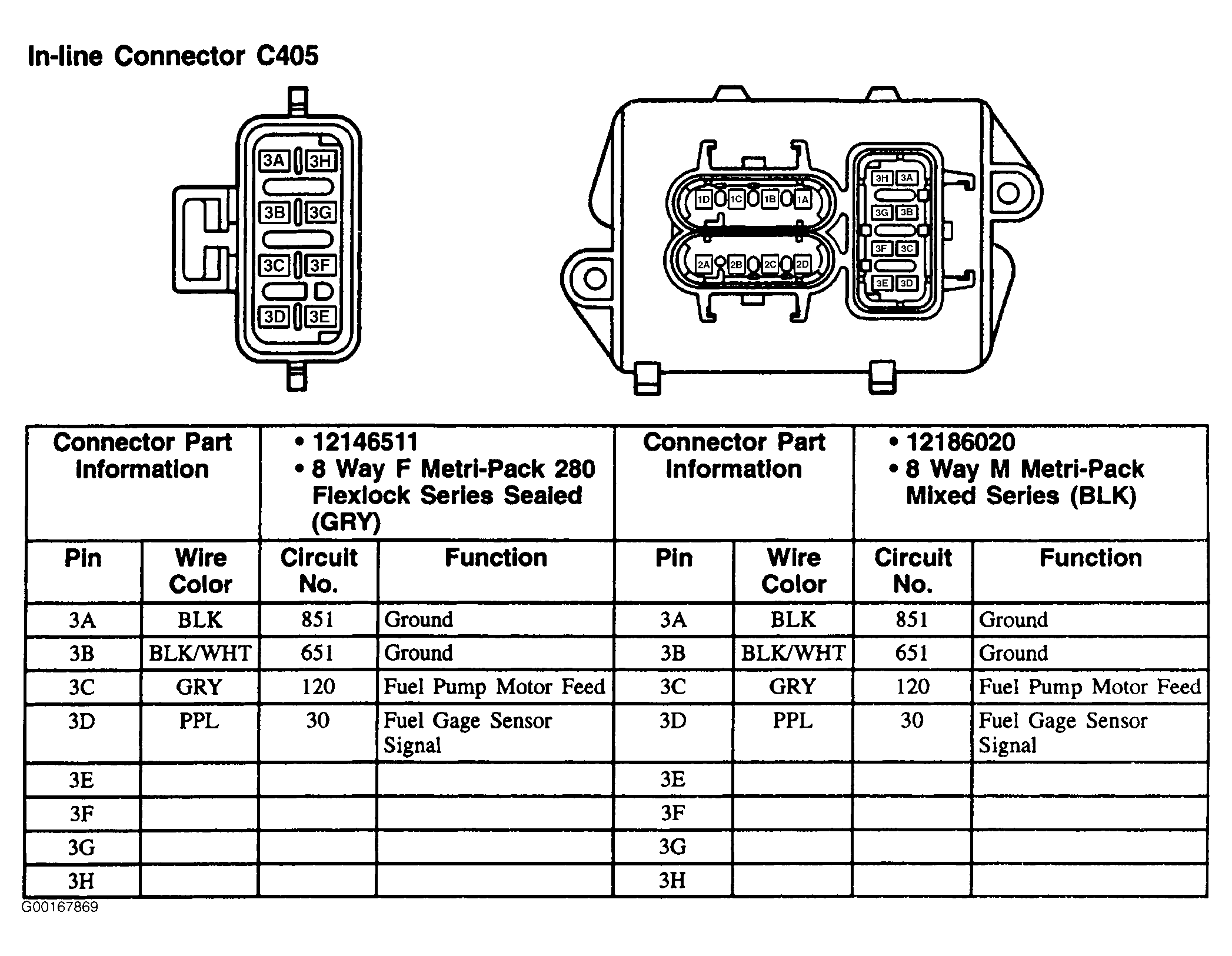

Fig 1: C405 (Grand Prix) - 8-Pin Connector (Gray/Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
