Home › Buick › 1997 › Century Custom › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Connectors C-100 To C-430 › C430 › Grand Prix

Grand Prix

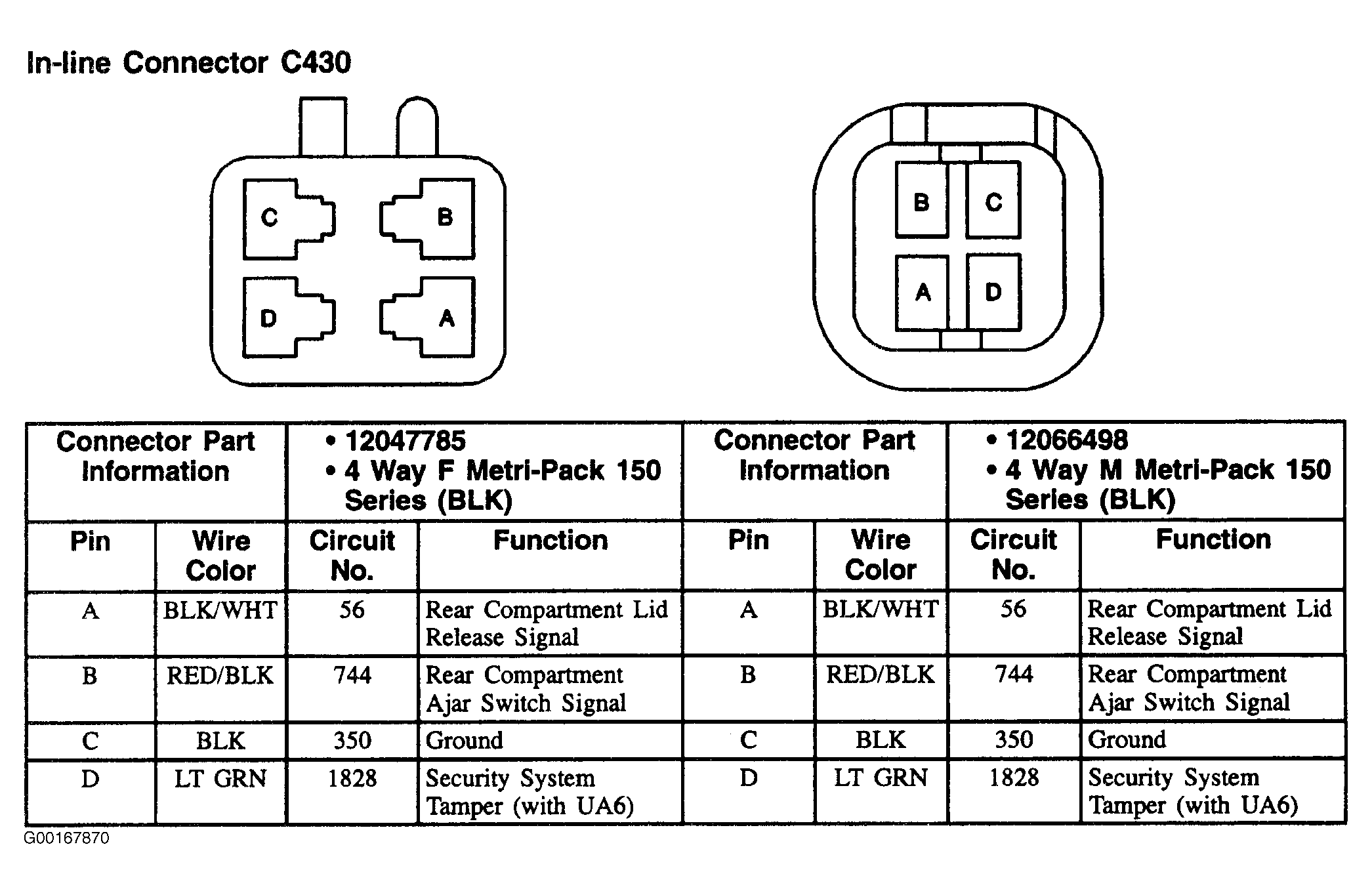

Fig 1: C430 (Grand Prix) - 4-Pin Connector (Black/Black)
G00167870Courtesy of GENERAL MOTORS CORP.
