Connector Terminal Identification
›
Data Link Connector
›
Century & Regal
Century & Regal

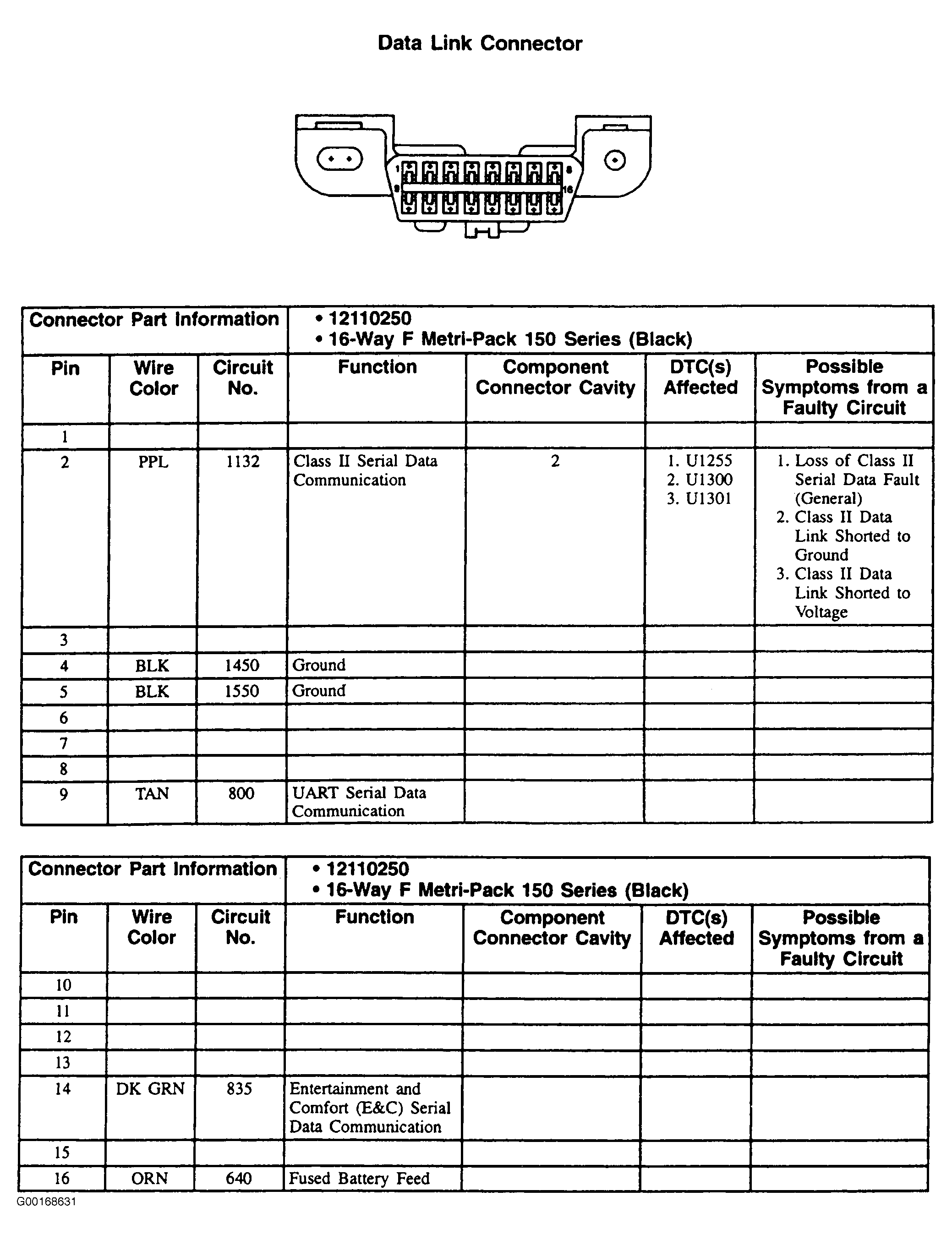

Fig 1: Data Link Connector (Century & Regal) - 16-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
