Connector Terminal Identification
›
Daytime Running Lamp
›
Century & Regal
›
Daytime Running Lamp Control Module C2
Daytime Running Lamp Control Module C2

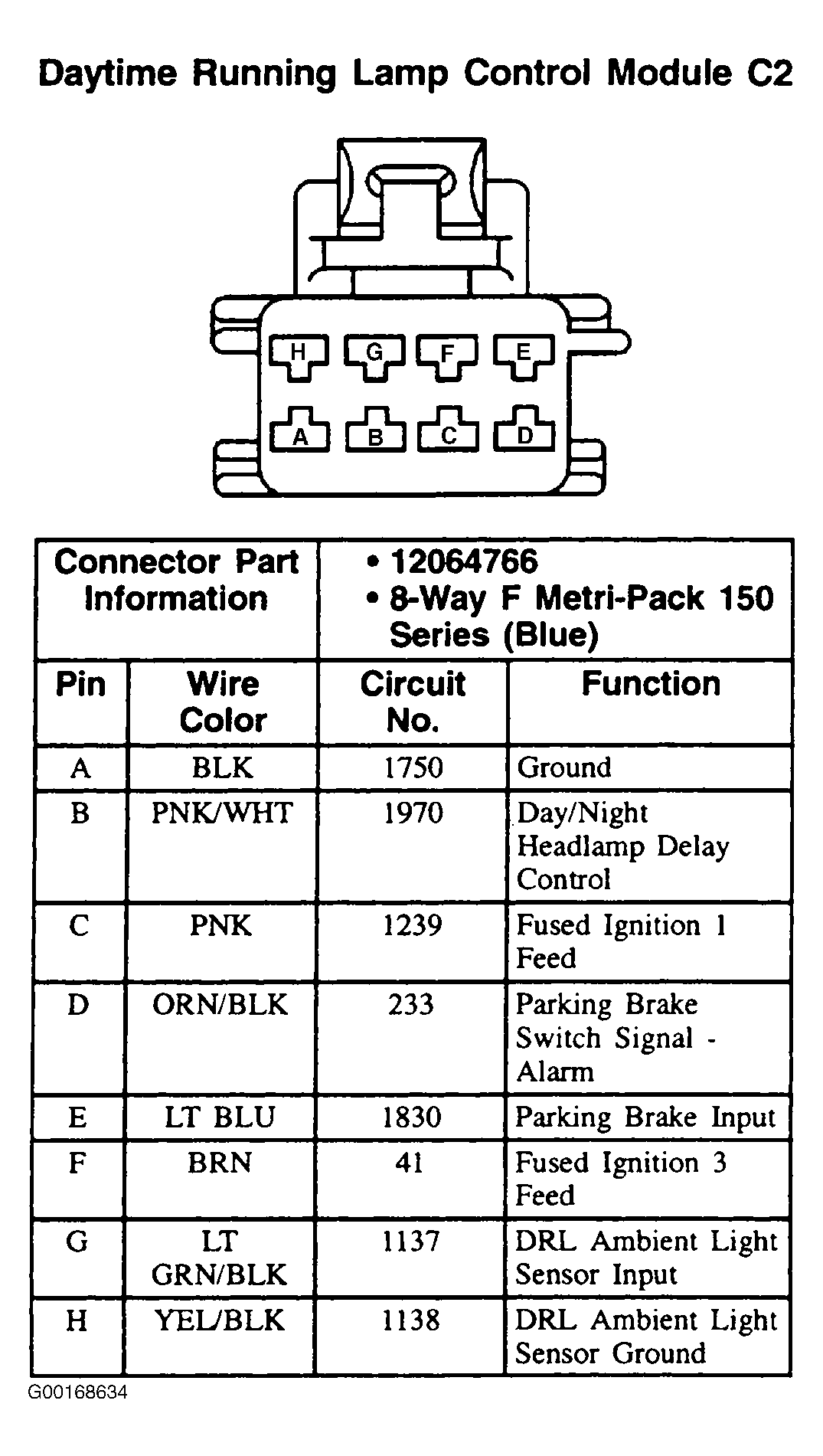

Fig 1: Daytime Running Lamp Control Module C2 (Century & Regal) - 8-Pin Connector (Blue)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
