Daytime Running Lamp Control Module C1

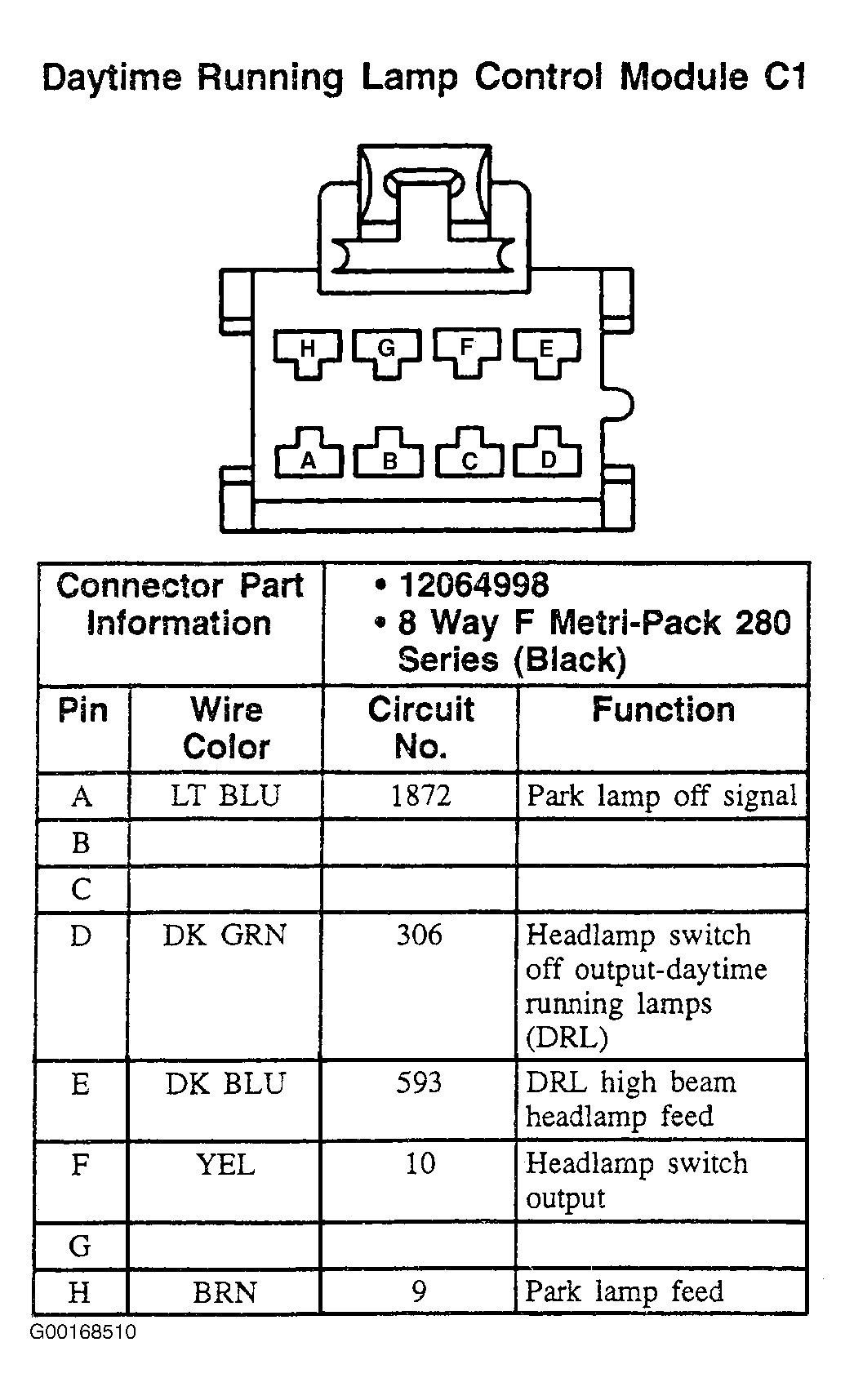

Fig 1: Daytime Running Lamp Control Module C1 (Cutlass Supreme, Lumina & Monte Carlo) - 8-Pin Connector (Black)
G00168510Courtesy of GENERAL MOTORS CORP.
