Daytime Running Lamp Control Module C2

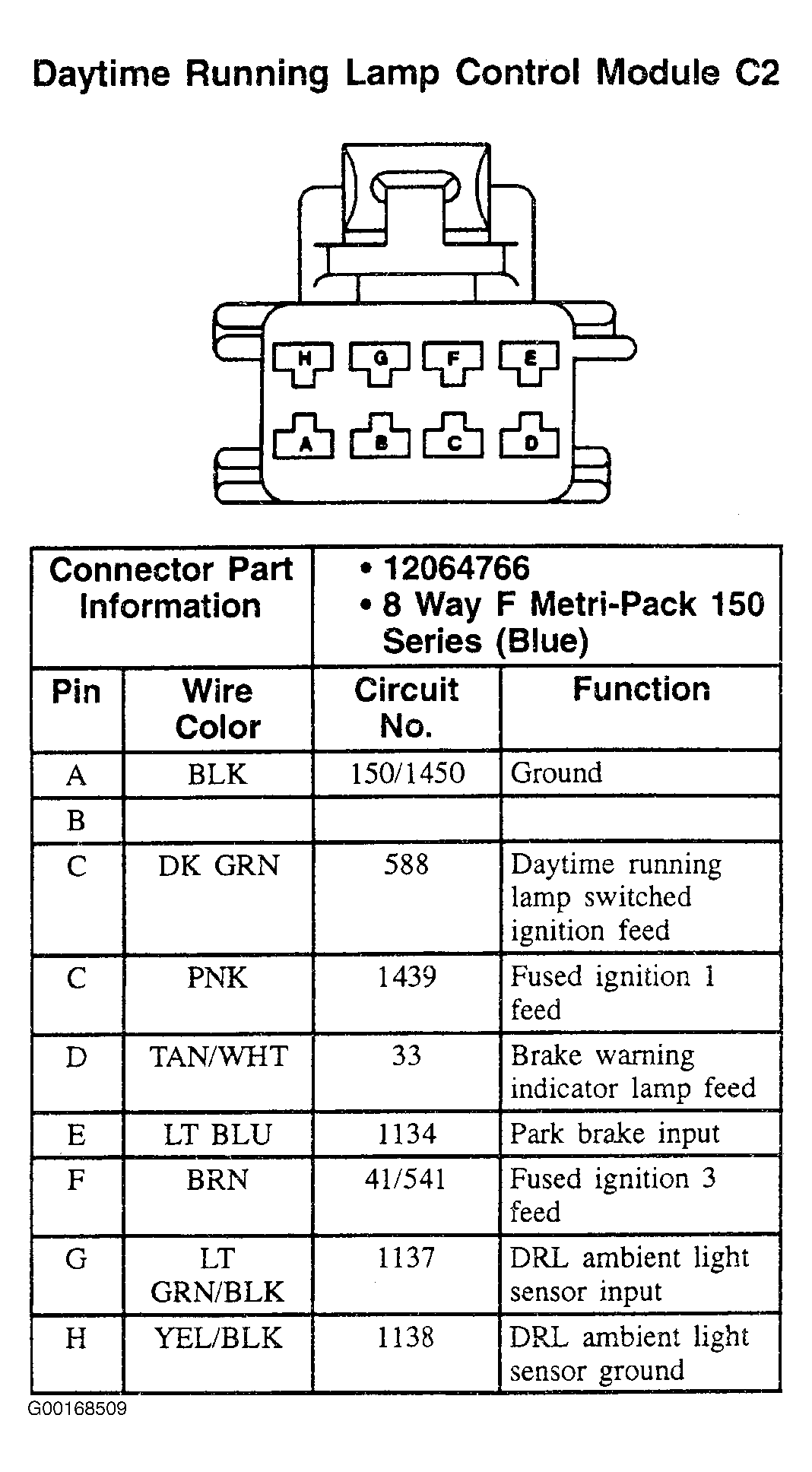

Fig 1: Daytime Running Lamp Control Module C2 (Cutlass Supreme, Lumina & Monte Carlo) - 8-Pin Connector (Blue)
G00168509Courtesy of GENERAL MOTORS CORP.
