Daytime Running Lamps Control Module C2

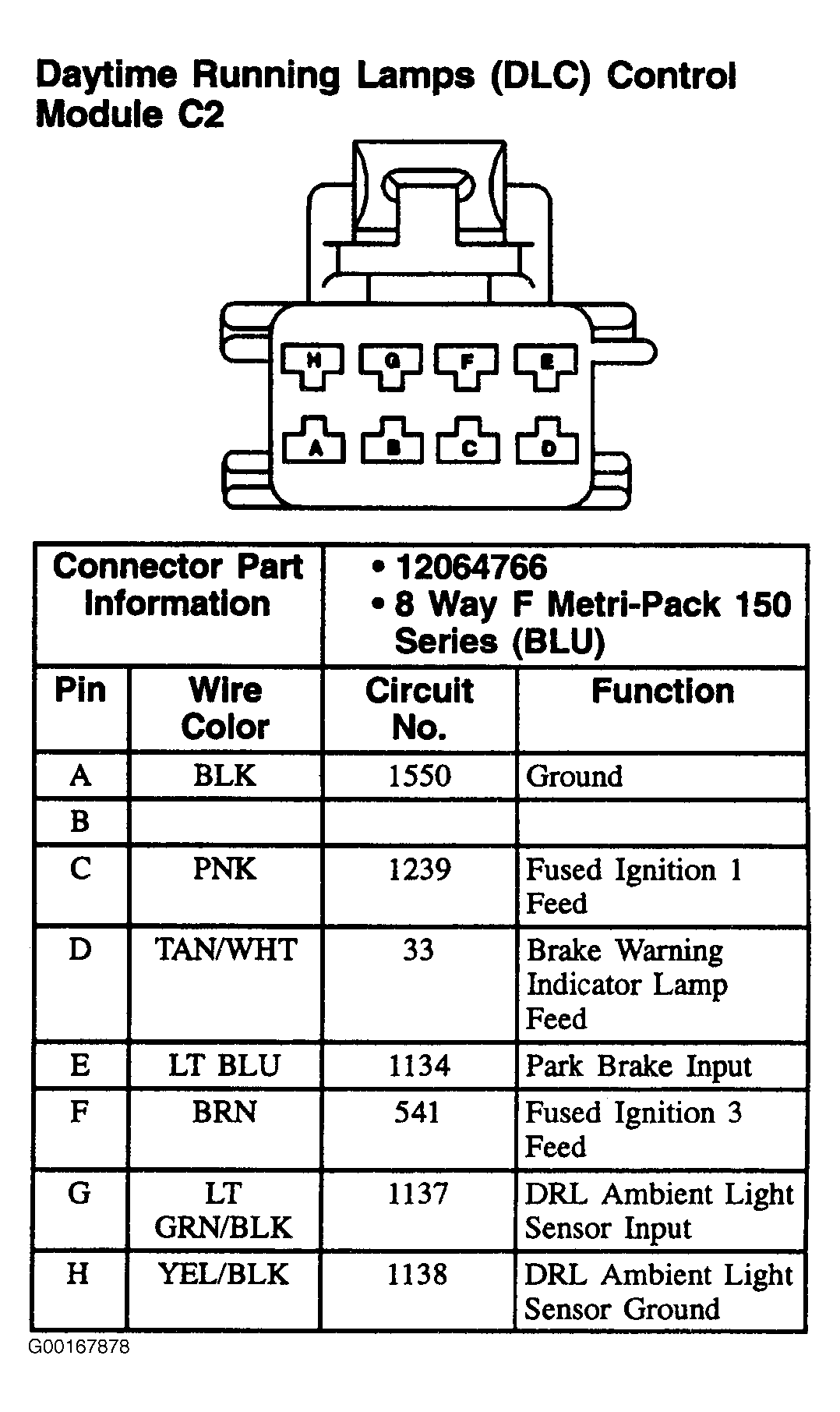

Fig 1: Daytime Running Lamps (DLC) Control Module C2 (Grand Prix) - 8-Pin Connector (Blue)
G00167878Courtesy of GENERAL MOTORS CORP.
