Connector Terminal Identification
›
Electronic Brake Control Relay
›
Century & Regal
Century & Regal

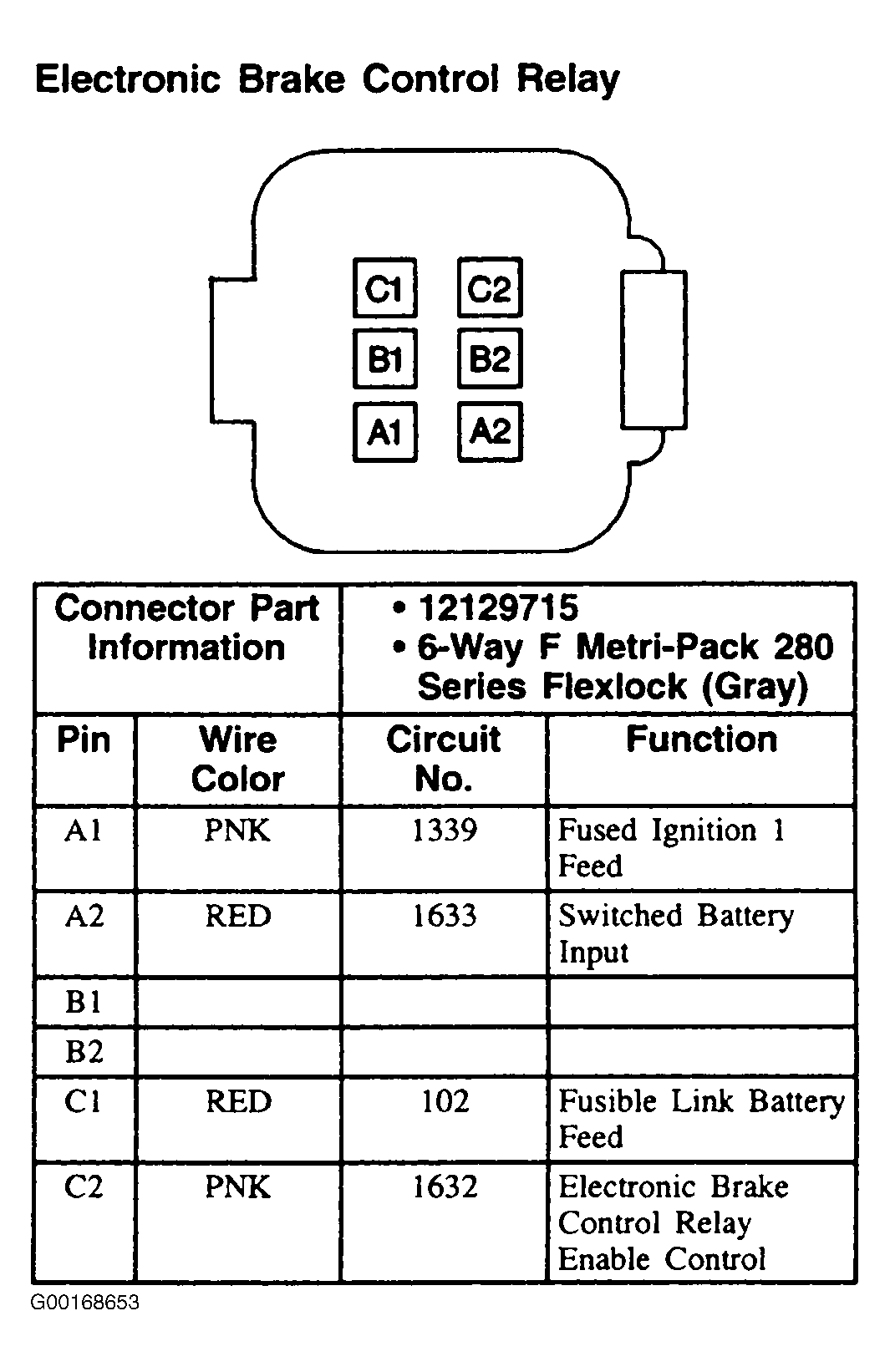

Fig 1: Electronic Brake Control Relay (Century & Regal) - 6-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
