Connector Terminal Identification
›
Electronic Brake Control Relay
›
Grand PRIX
›
Electronic Brake Control Indicator Lamp Driver Module
Electronic Brake Control Indicator Lamp Driver Module

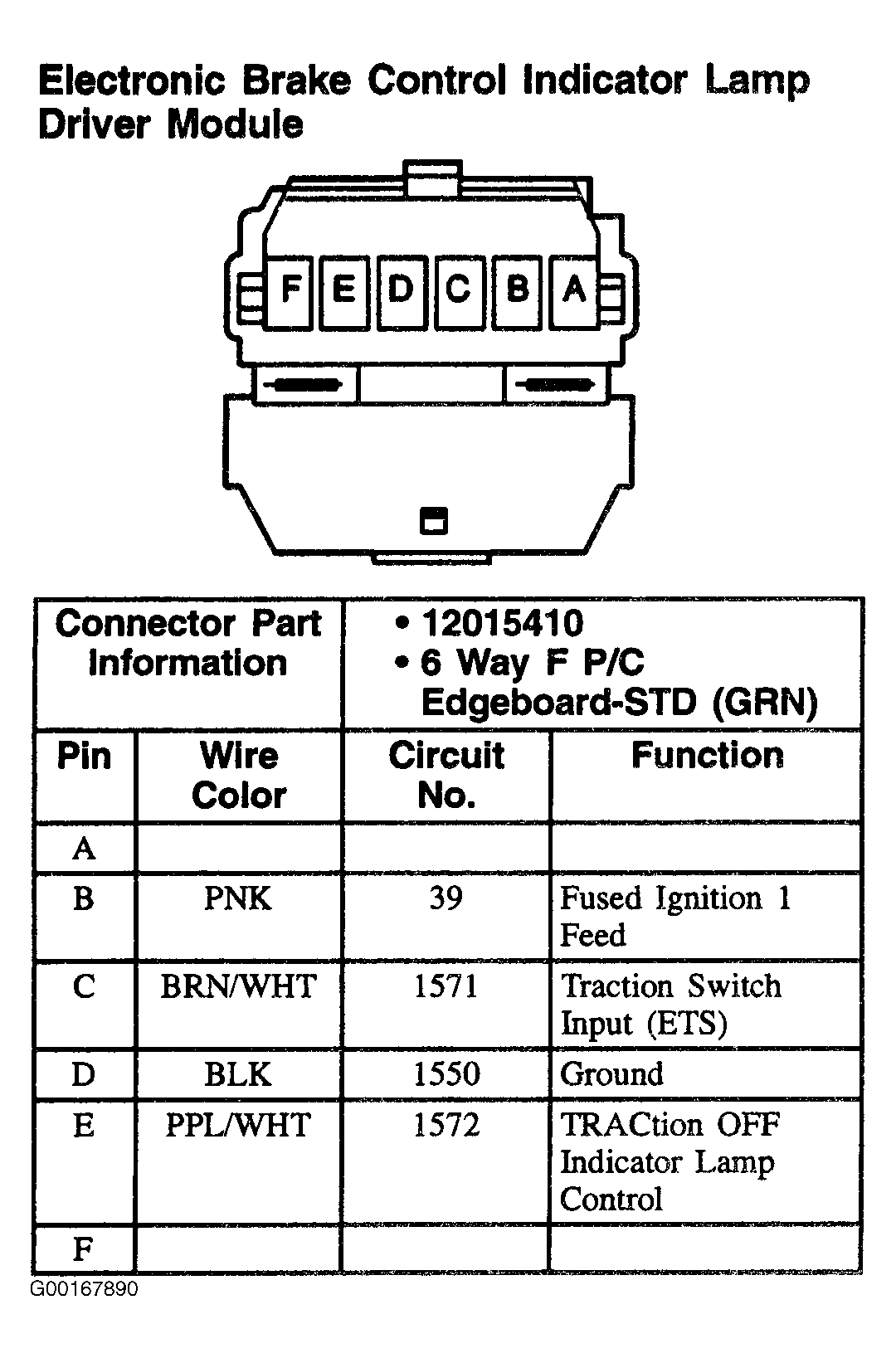

Fig 1: Electronic Brake Control Indicator Lamp Driver Module (Grand Prix) - 6-Pin Connector (Green)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
