Connector Terminal Identification
›
Electronic Traction Control
›
Century & Regal
›
Brake Pressure Modulator Valve
Brake Pressure Modulator Valve

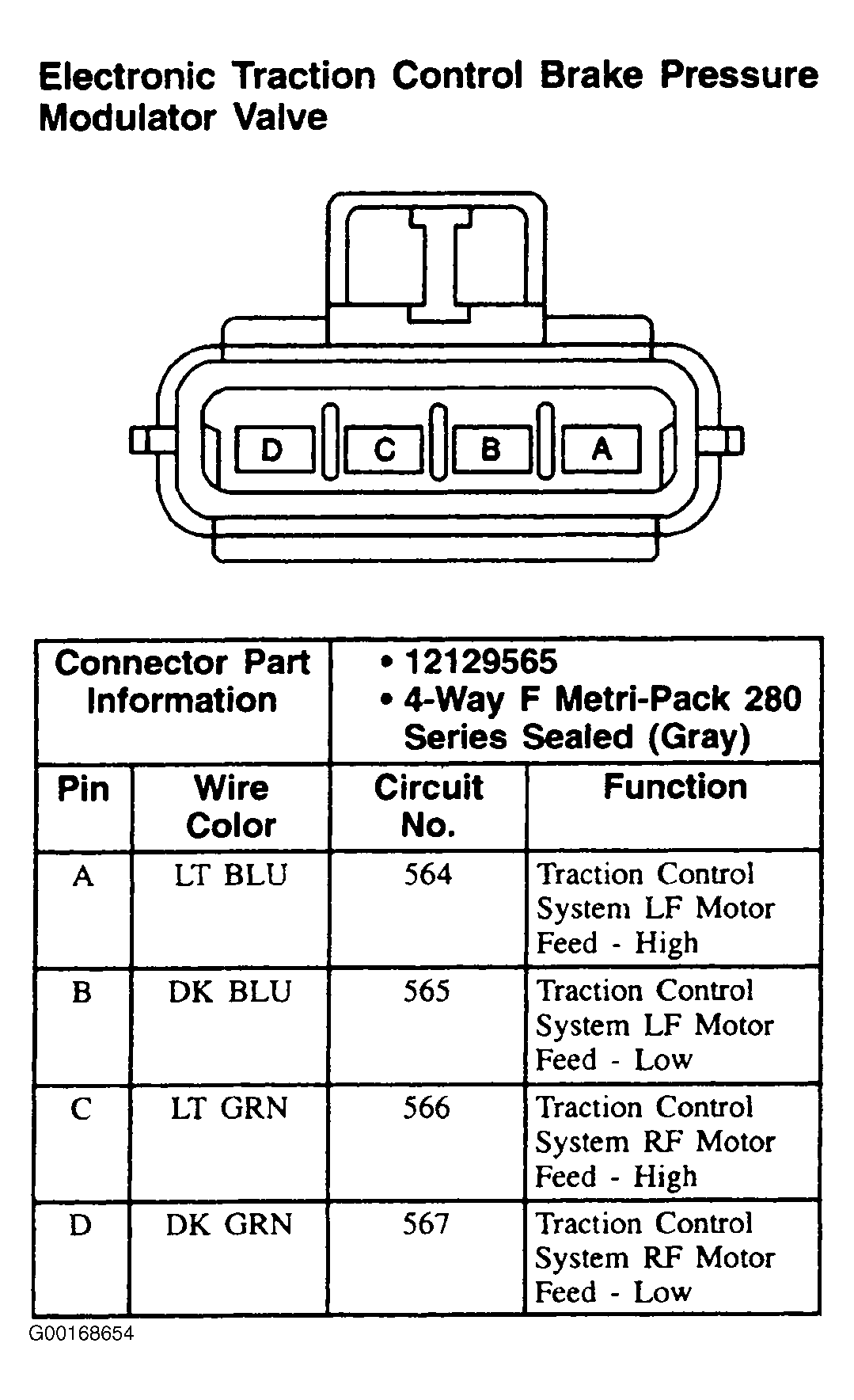

Fig 1: Electronic Traction Control Brake Pressure Modulator Valve (Century & Regal) - 4-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
