Connector Terminal Identification
›
Fog Lamp
›
Century & Regal
Century & Regal

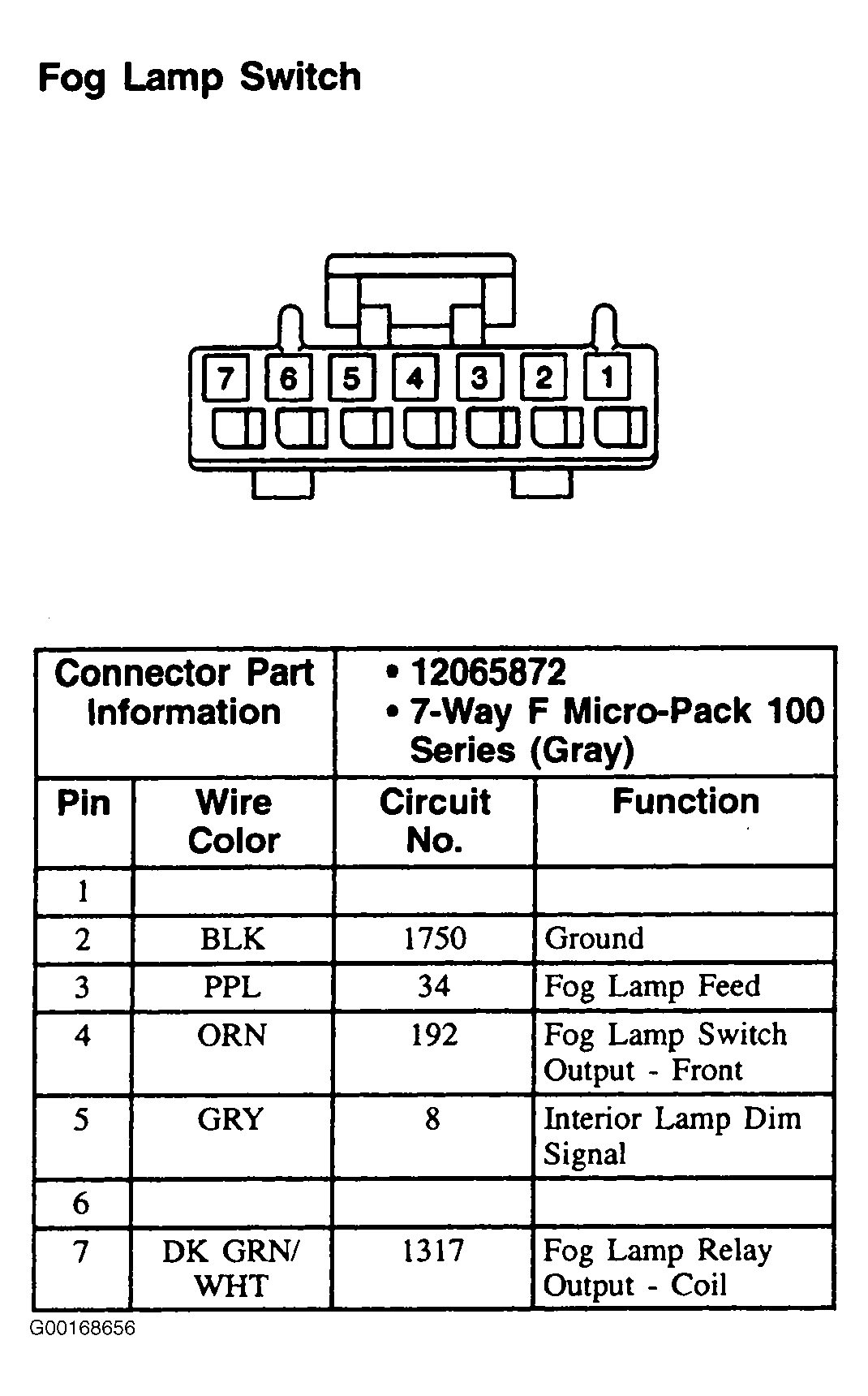

Fig 1: Fog Lamp Switch (Century & Regal) - 7-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
