Connector Terminal Identification
›
Fuel Tank
›
Century & Regal
›
Fuel Tank C1
Fuel Tank C1

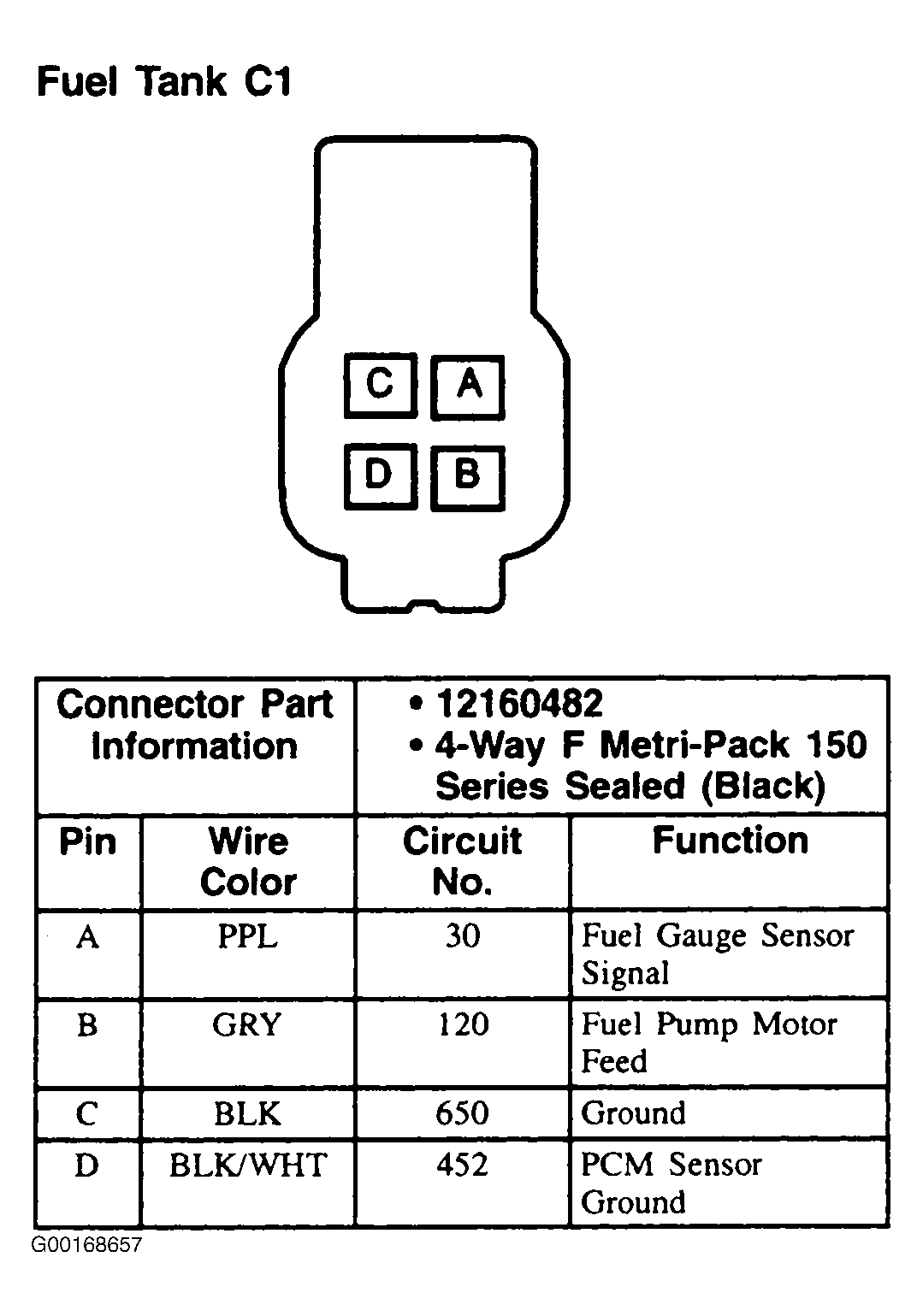

Fig 1: Fuel Tank C1 (Century & Regal) - 4-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
