Connector Terminal Identification
›
Hazard Lamp/Turn Signal
›
Grand PRIX
Grand PRIX

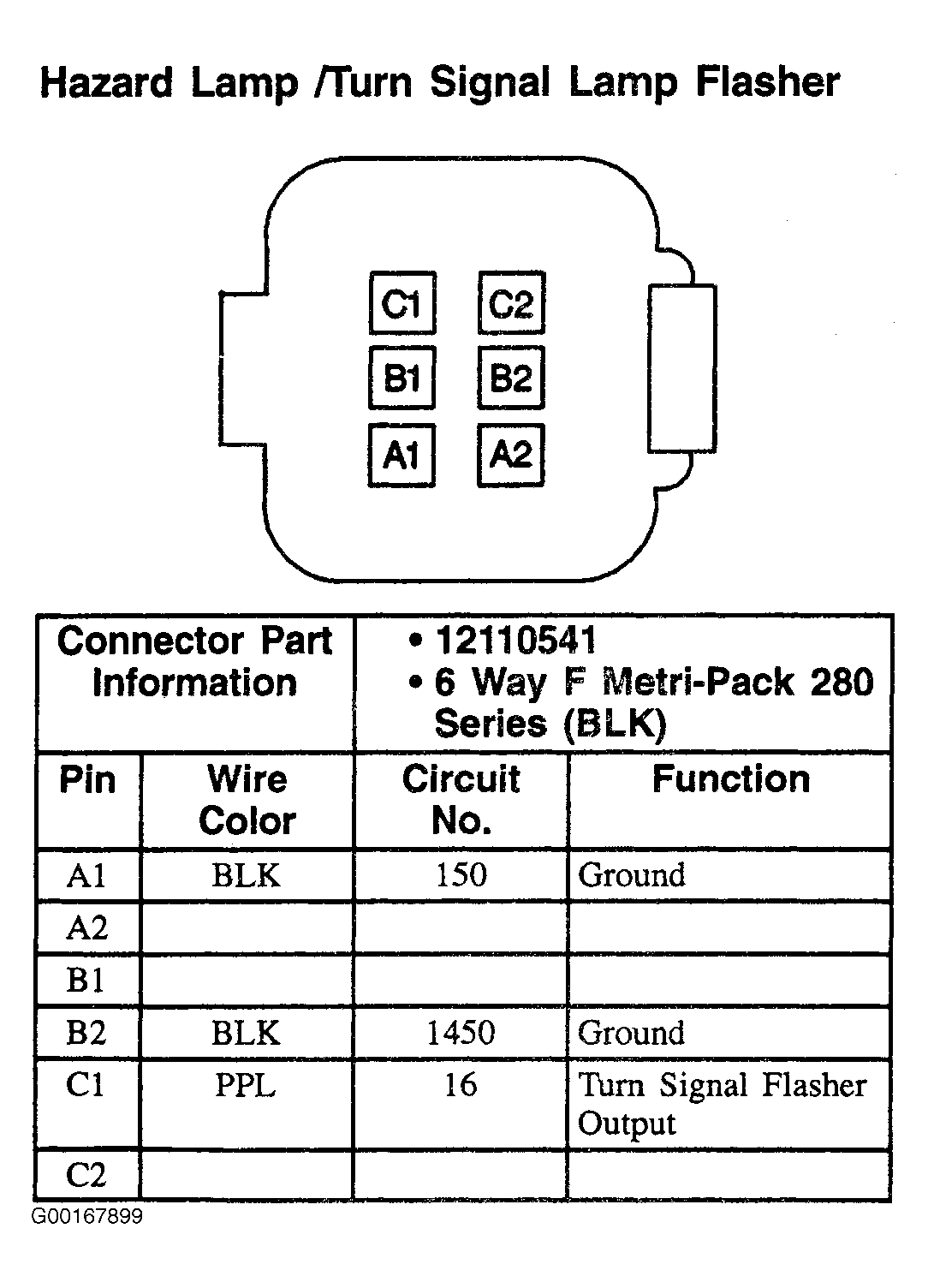

Fig 1: Hazard Lamp/Turn Signal Lamp Flasher (Grand Prix) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
