Century & Regal

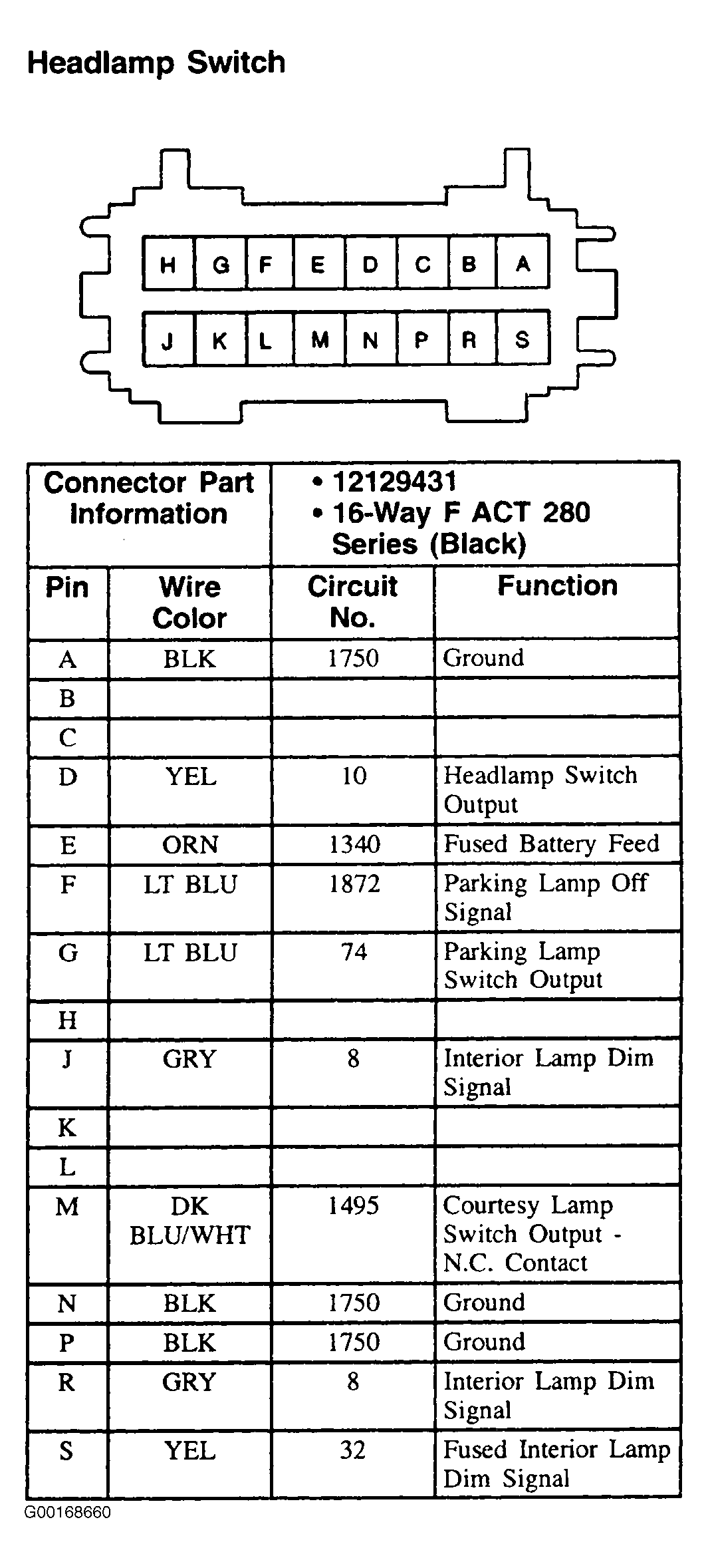

Fig 1: Headlamp Switch (Century & Regal) - 16-Pin Connector (Black)
G00168660Courtesy of GENERAL MOTORS CORP.
