Heater-A/C Control C1

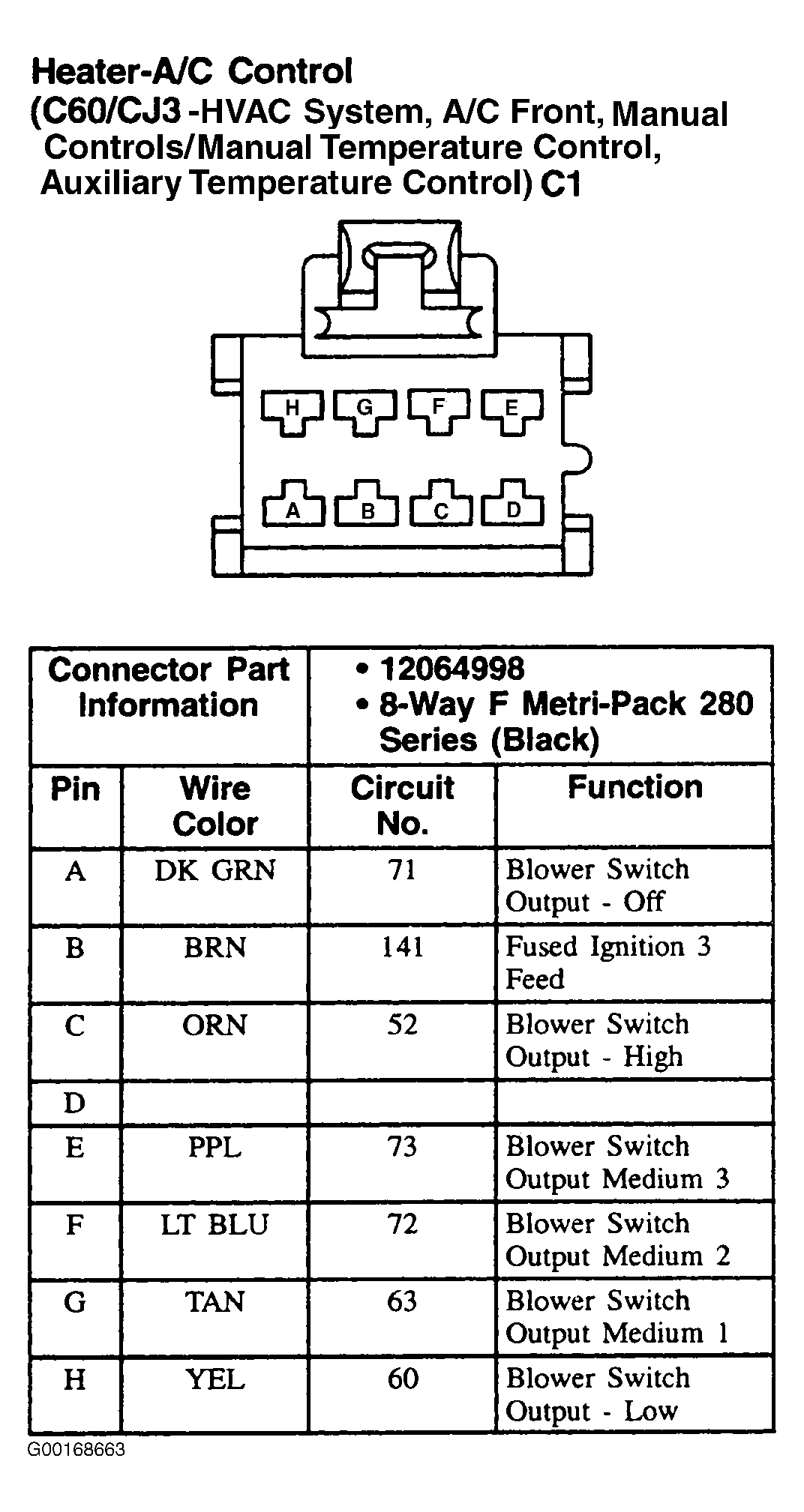

Fig 1: Heater-A/C Control C1 (C60/CJ3 - HVAC System, A/C Front, Manual Controls/Manual Temperature Control, Auxiliary Temperature Control) (Century & Regal) - 8-Pin Connector (Black)
G00168663Courtesy of GENERAL MOTORS CORP.
