Heater-A/C Control C2

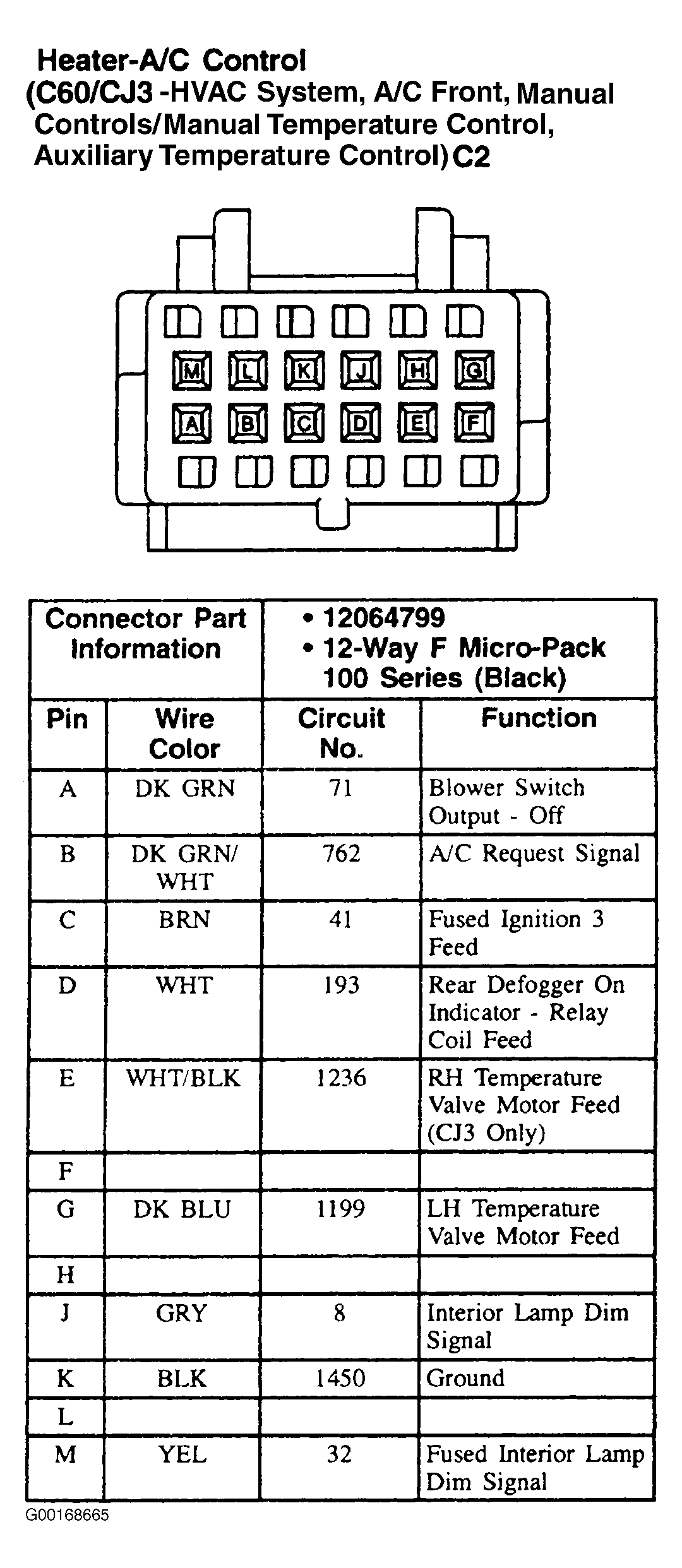

Fig 1: Heater-A/C Control C2 (C60/CJ3 - HVAC System, A/C Front, Manual Controls/Manual Temperature Control, Auxiliary Temperature Control) (Century & Regal) - 12-Pin Connector (Black)
G00168665Courtesy of GENERAL MOTORS CORP.
