Heater-A/C Control C1 (HVAC System, A/C Front, Manual Controls)

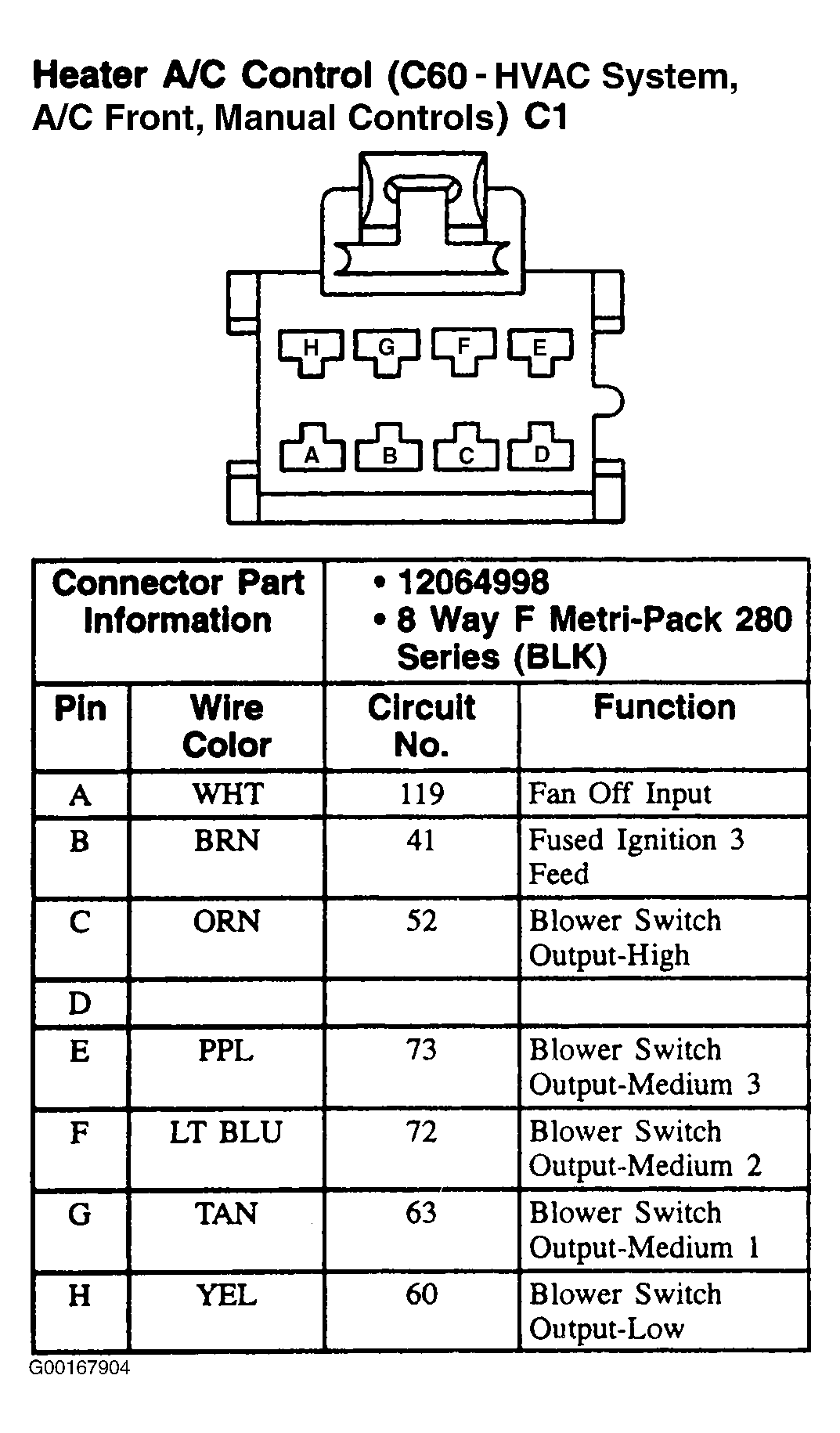

Fig 1: Heater-A/C Control C1 (C60 - HVAC System, A/C Front, Manual Controls) (Grand Prix) - 8-Pin Connector (Black)

Courtesy of GENERAL MOTORS CORP.
