Heater-A/C Control C3 (HVAC System, A/C Front, Manual Controls)

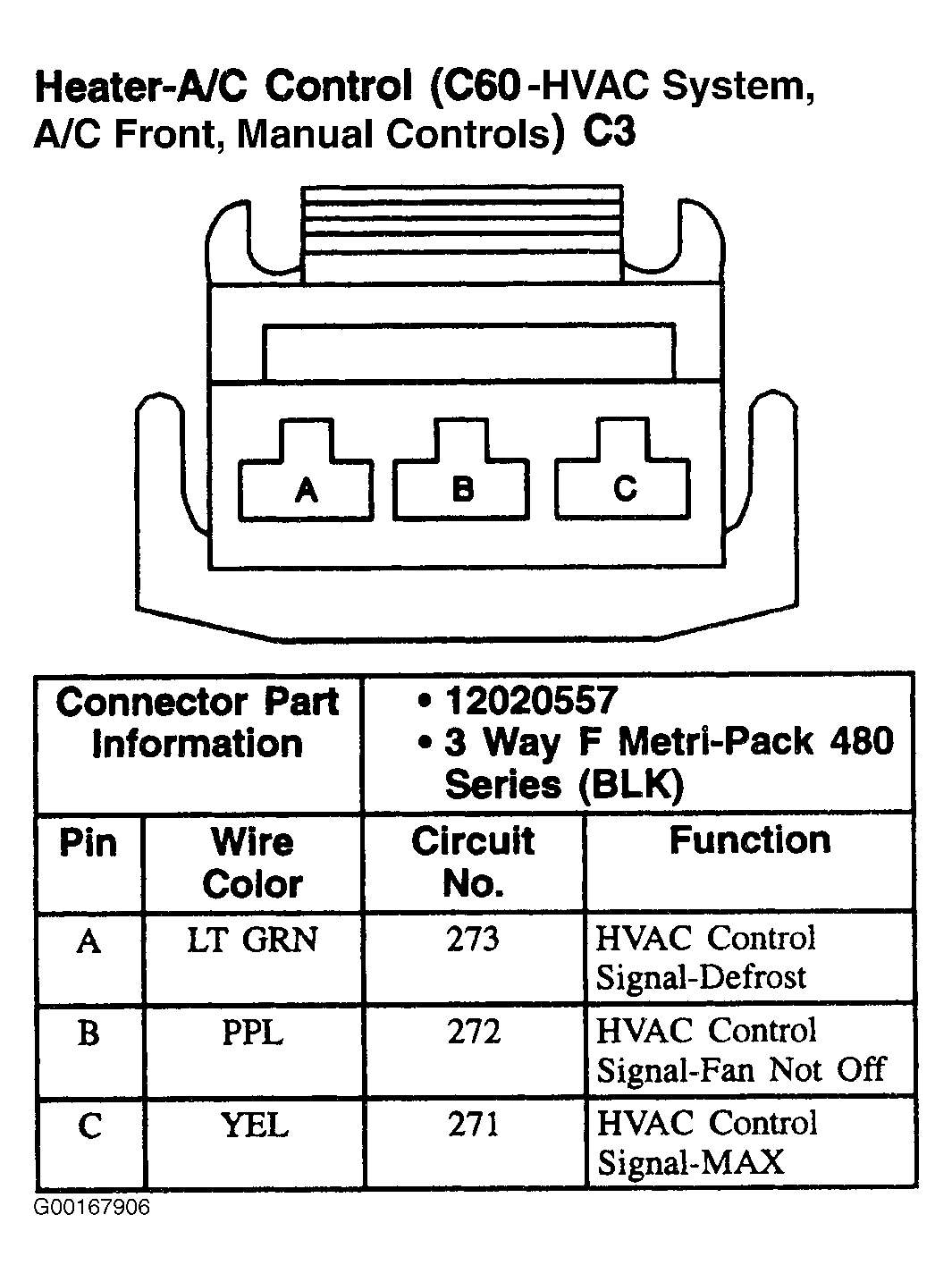

Fig 1: Heater-A/C Control C3 (C60 - HVAC System, A/C Front, Manual Controls) - 3-Pin Connector - (Black)
G00167906Courtesy of GENERAL MOTORS CORP.
