Adjuster Switch

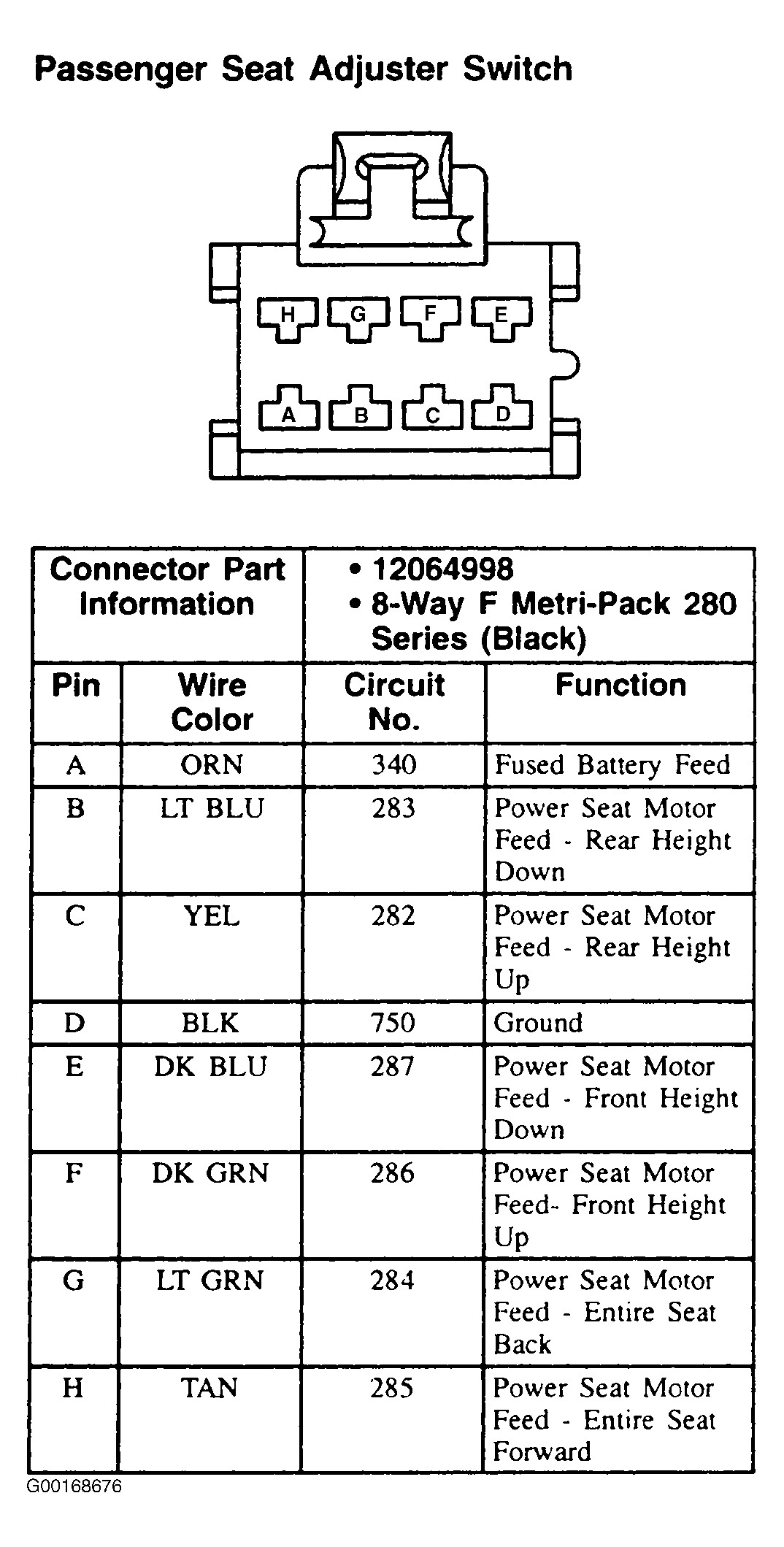

Fig 1: Passenger Seat Adjuster Switch (Century & Regal) - 8-Pin Connector (Black)
G00168676Courtesy of GENERAL MOTORS CORP.
