Century, Grand PRIX & Regal

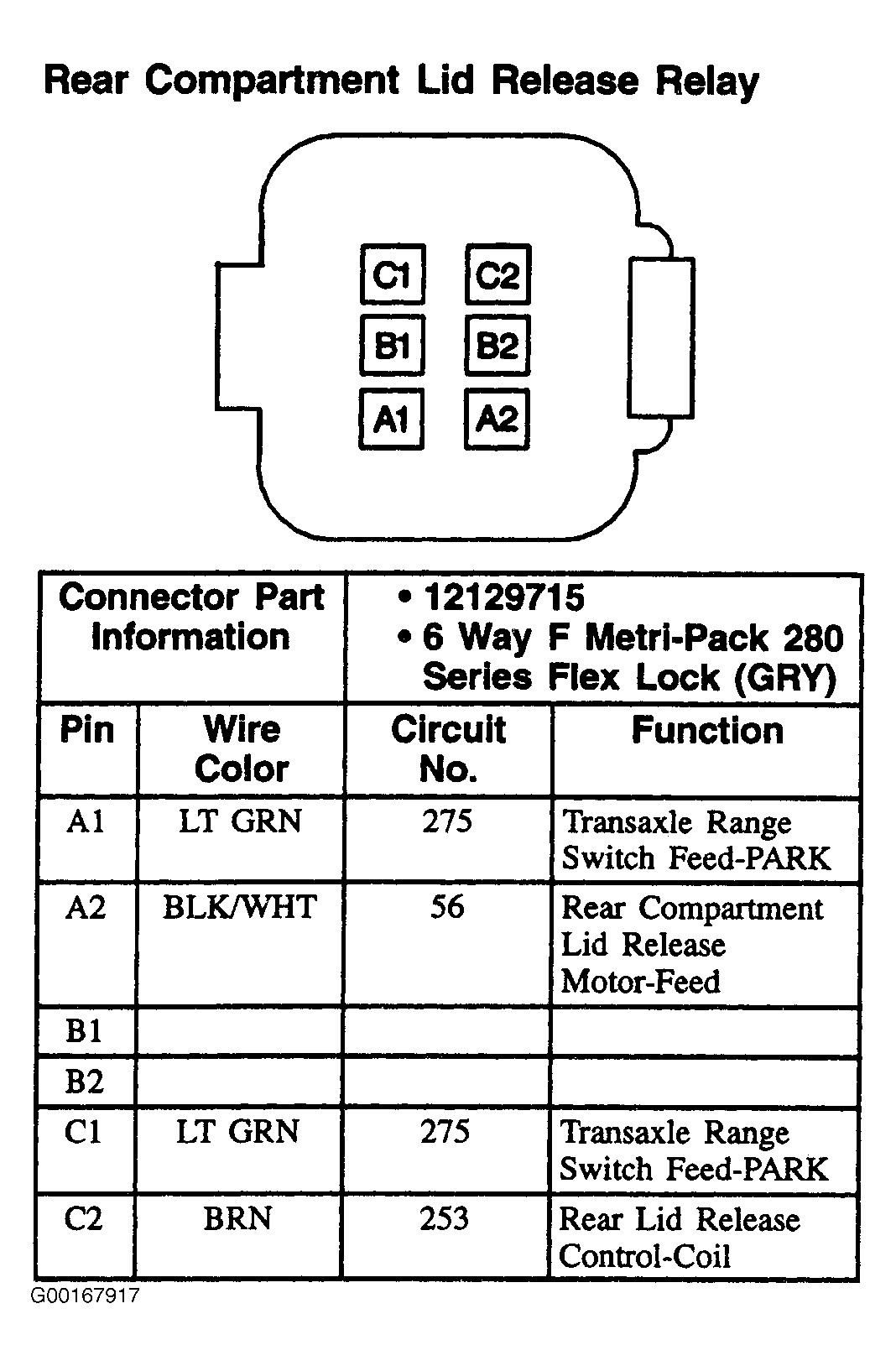

Fig 1: Rear Compartment Lid Release Relay (Century, Grand Prix & Regal) - 6-Pin Connector (Gray)
G00167917Courtesy of GENERAL MOTORS CORP.
