Cutlass Supreme, Lumina & Monte CARLO

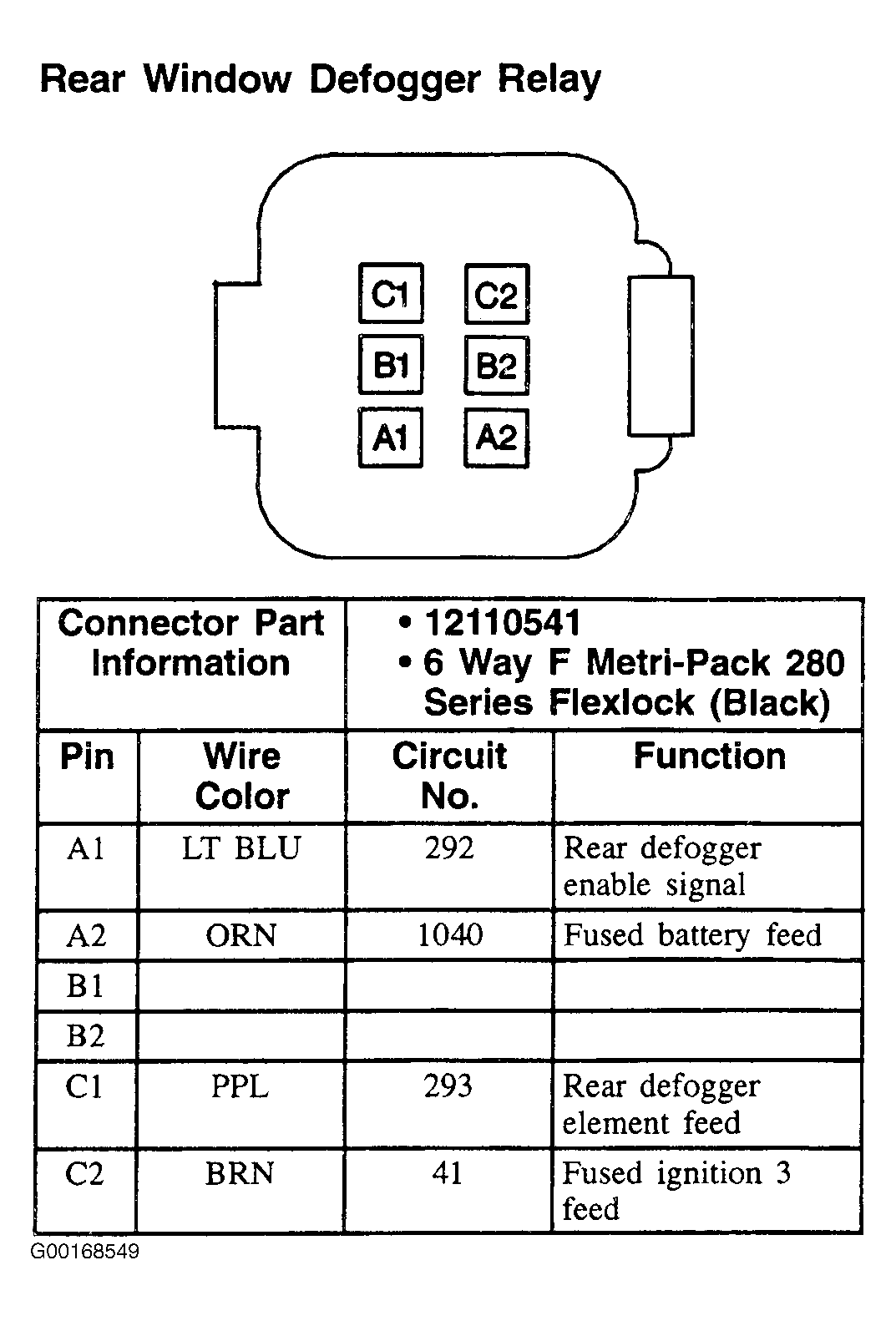

Fig 1: Rear Window Defogger Relay (Cutlass Supreme, Lumina & Monte Carlo) - 6-Pin Connector (Black)
G00168549Courtesy of GENERAL MOTORS CORP.
