Home › Buick › 1997 › Century Custom › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Splice Pack › Century & Regal

Century & Regal

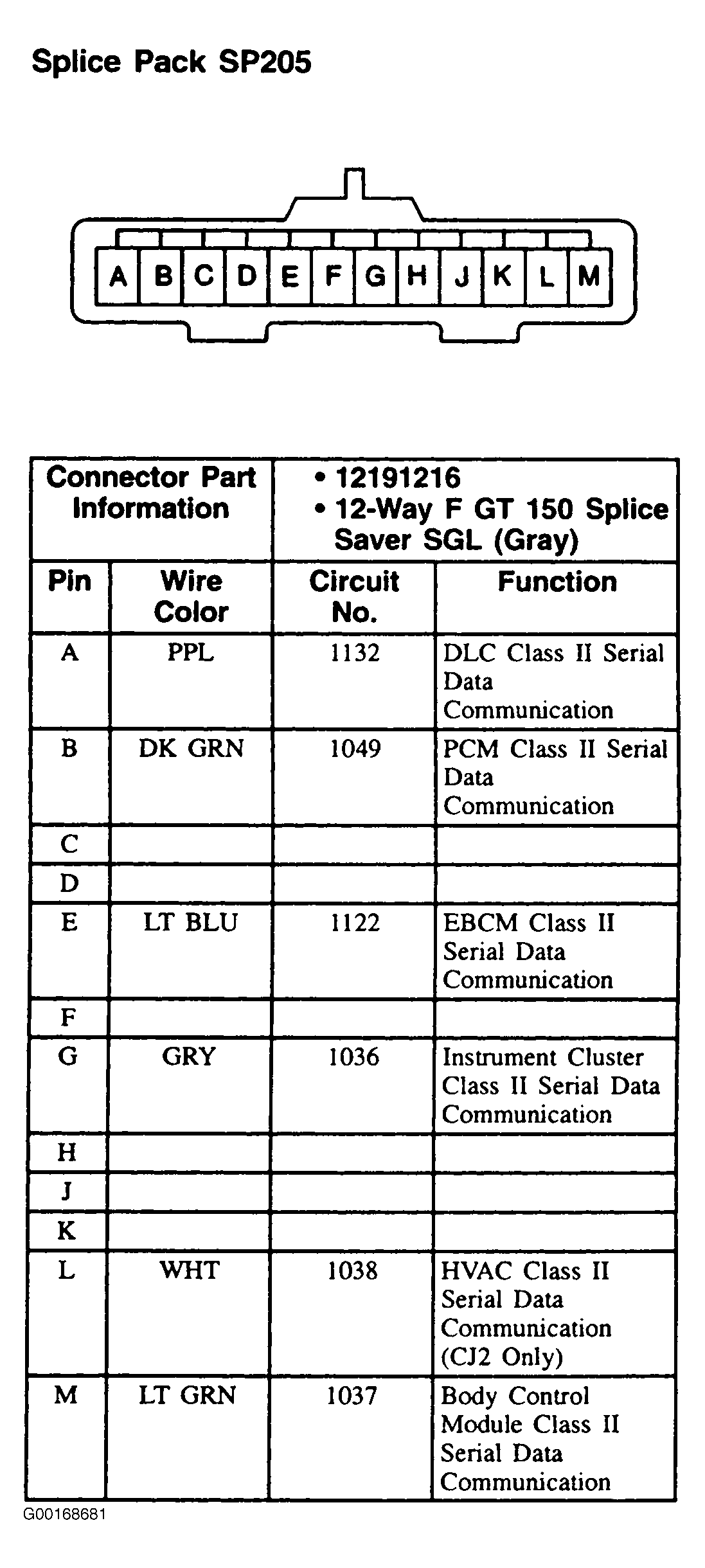

Fig 1: Splice Pack SP205 (Century & Regal) - 12-Pin Connector (Gray)
G00168681Courtesy of GENERAL MOTORS CORP.
