Connector Terminal Identification
›
Window Switch
›
Century & Regal
›
Window Switch C1, Left Front
Window Switch C1, Left Front

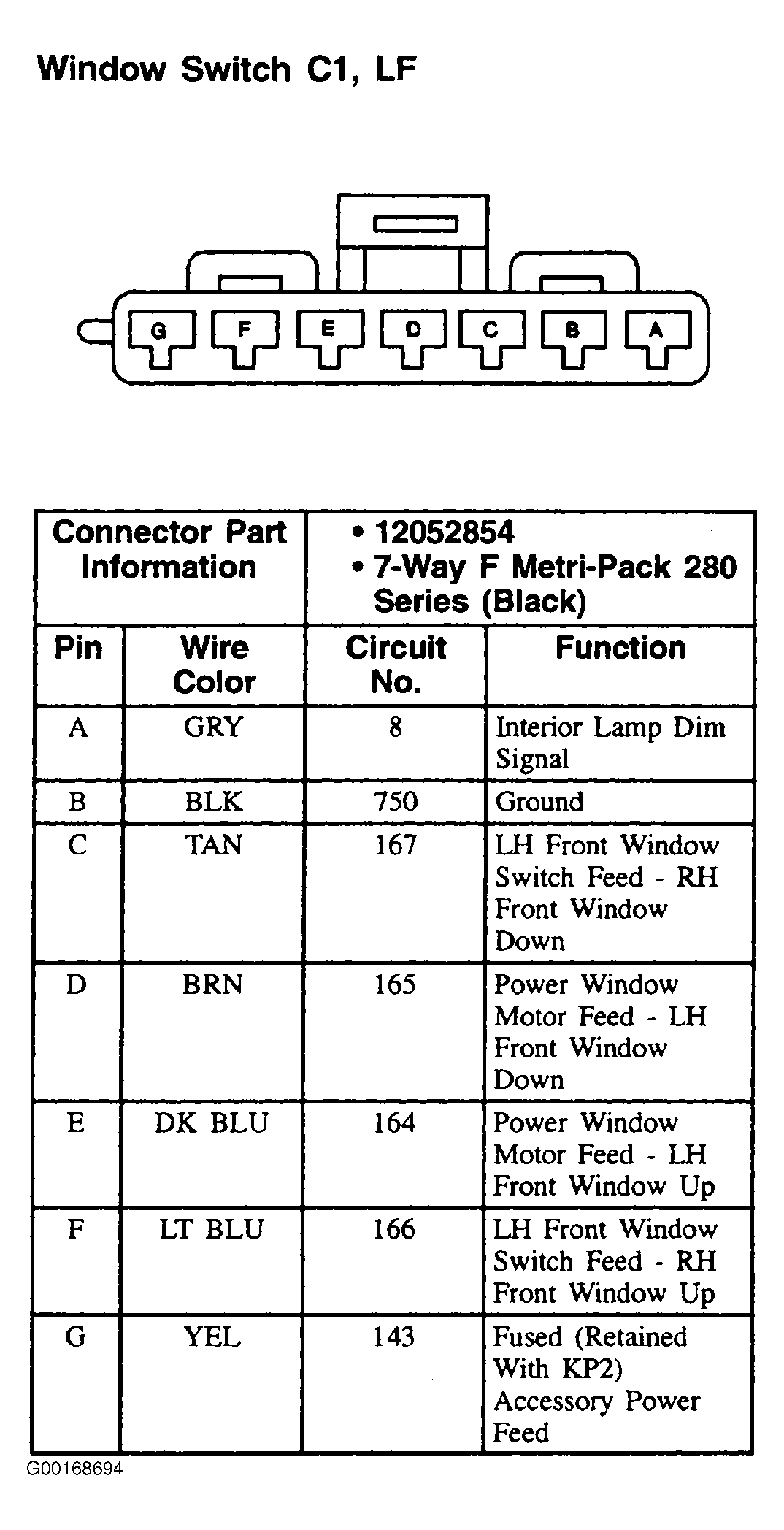

Fig 1: Window Switch C1, Left Front (Century & Regal) - 7-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
