Connector Terminal Identification
›
Window Switch
›
Century & Regal
›
Window Switch, Left Rear
Window Switch, Left Rear

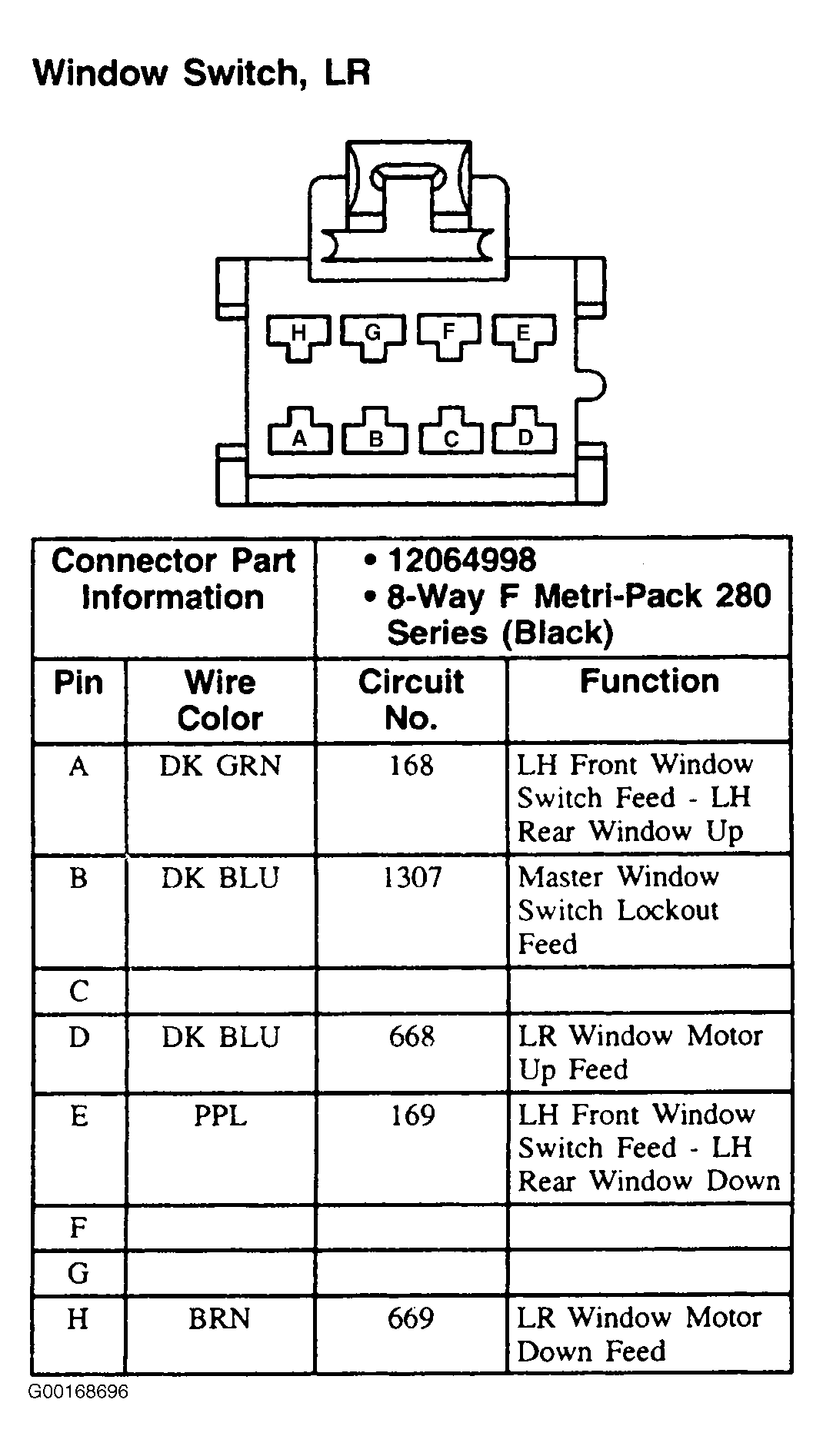

Fig 1: Window Switch, Left Rear (Century & Regal) - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
