Window Switch, Left Front (Coupe)

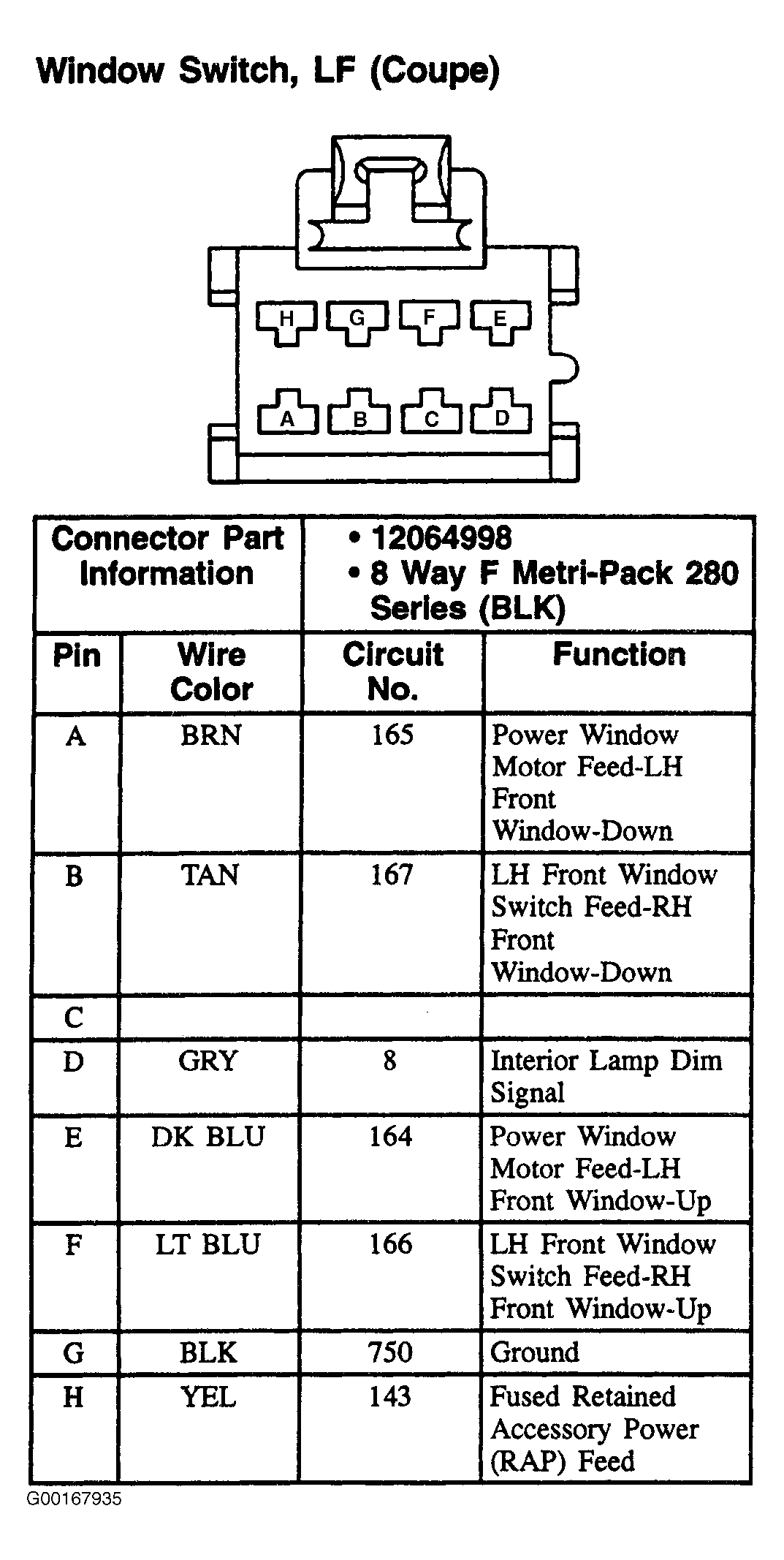

Fig 1: Window Switch, Left Front (Coupe) (Grand Prix) - 8-Pin Connector (Black)
G00167935Courtesy of GENERAL MOTORS CORP.
