Connector Terminal Identification
›
Window Switch
›
Grand PRIX
›
Window Switch, Right Front
Window Switch, Right Front

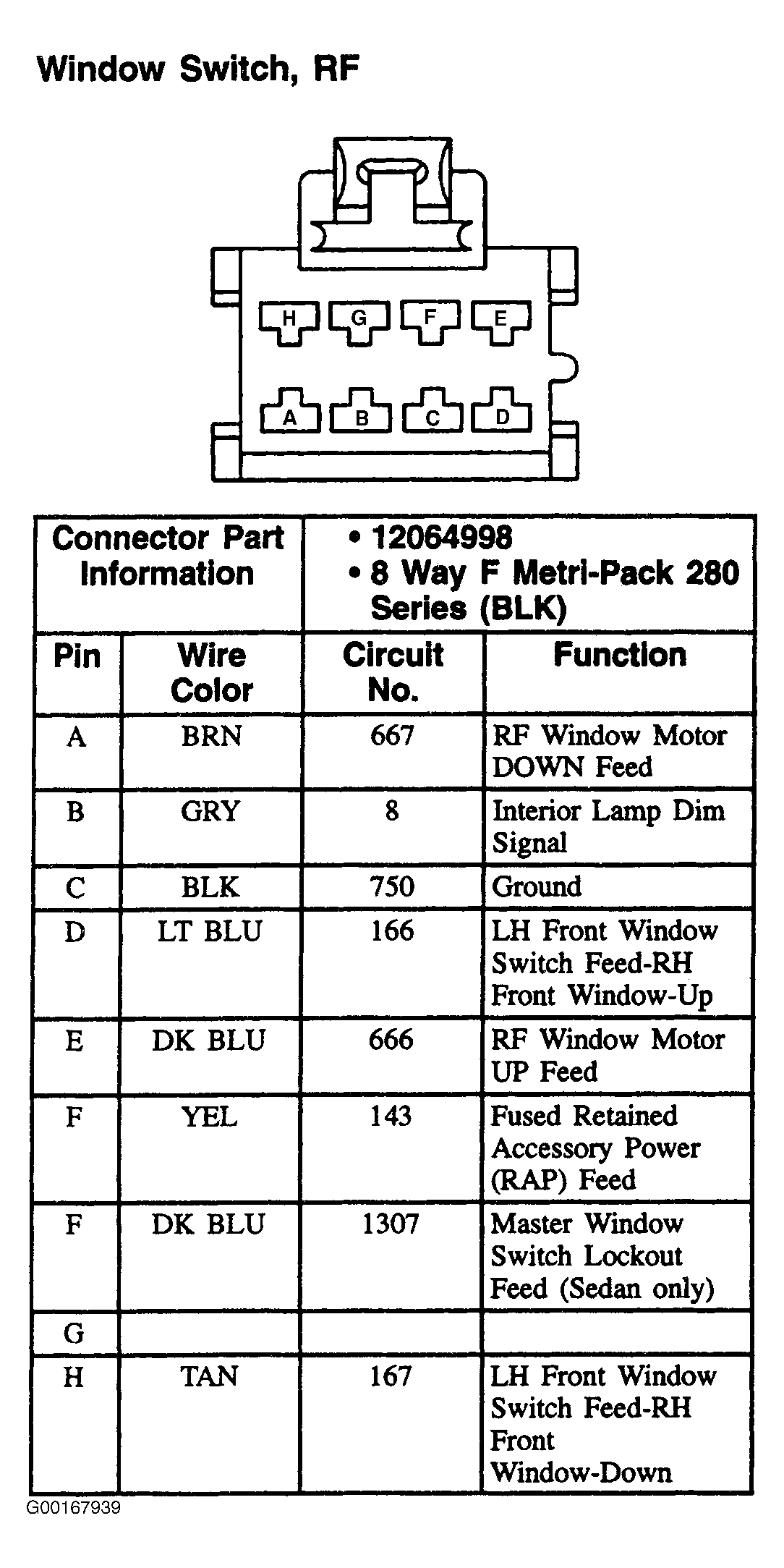

Fig 1: Window Switch, Right Front (Grand Prix) - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
