Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

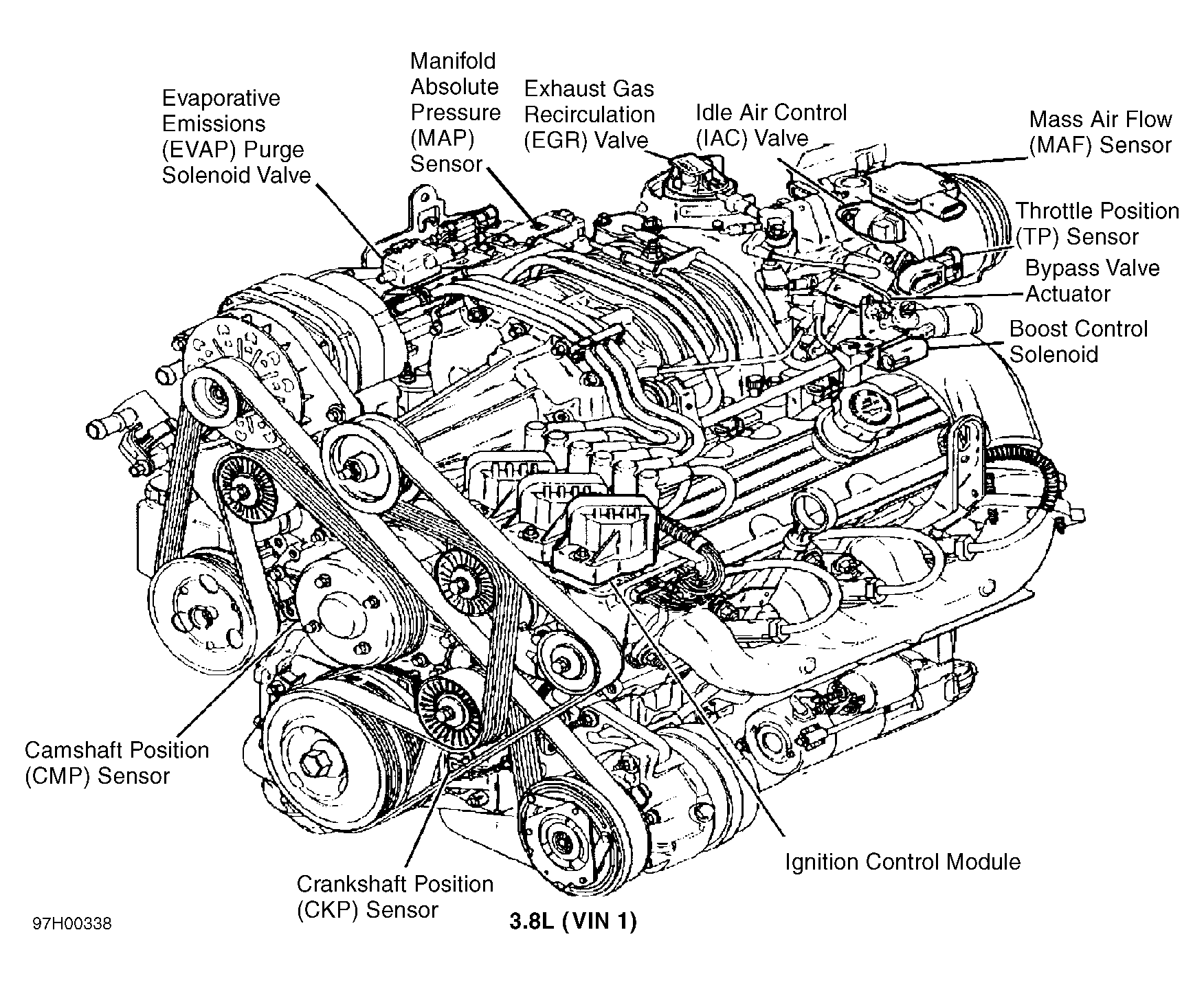

Fig 1: Engine (3.8L VIN 1)

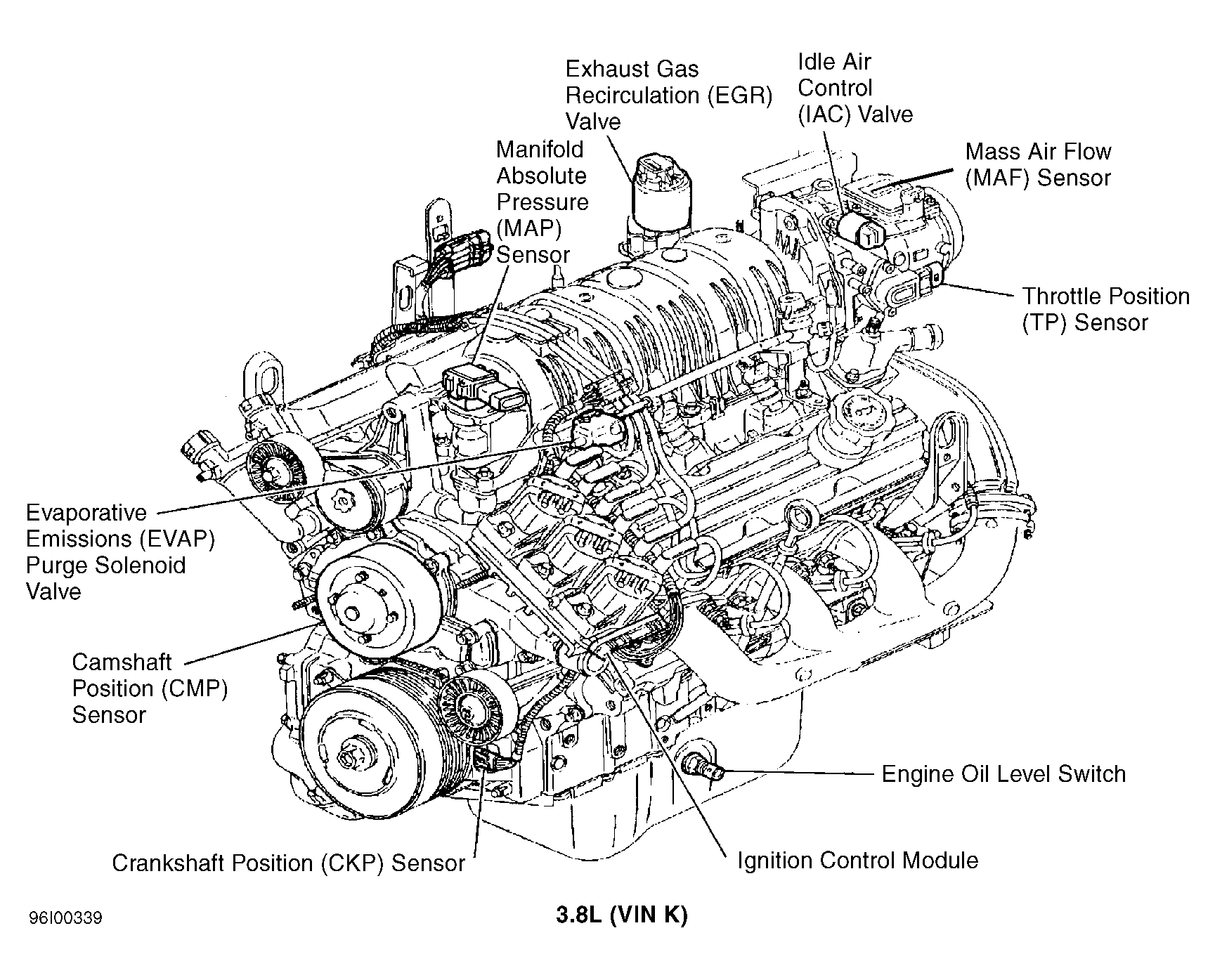

Fig 2: Engine (3.8L VIN K)

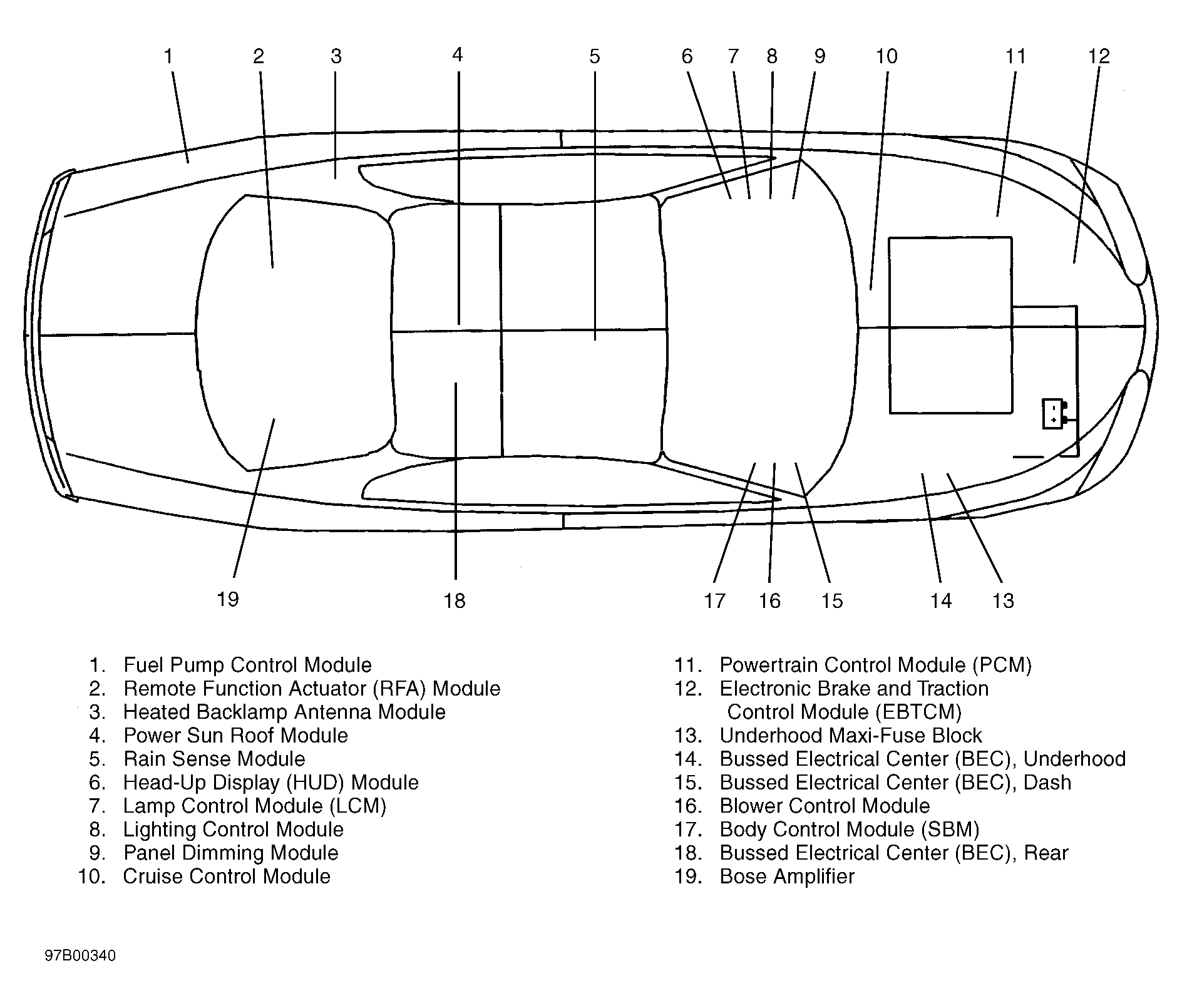

Fig 3: Vehicle Overview
