Connector Terminal Identification
›
Accessory Time Delay (Rap) Relay
›
Grand PRIX
Grand PRIX

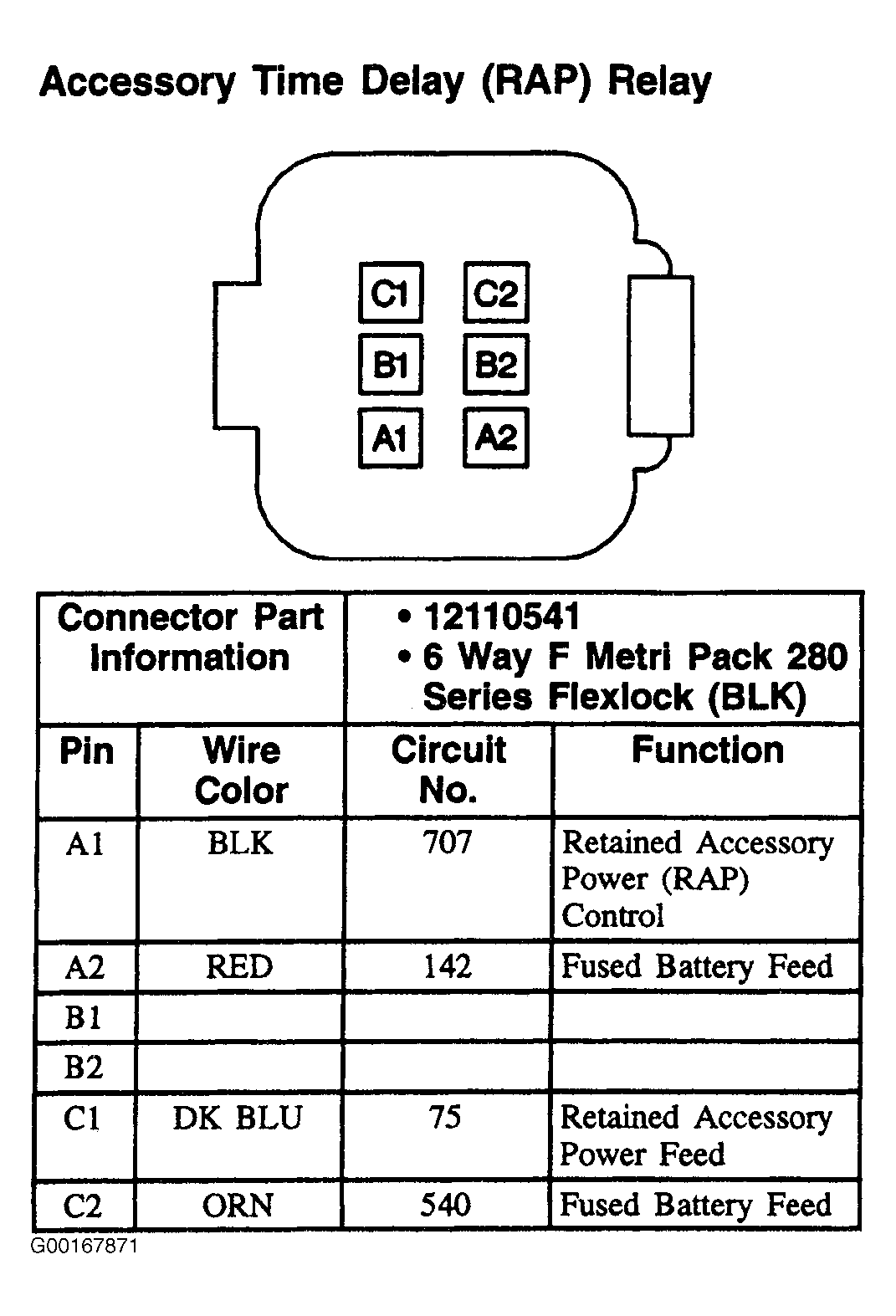

Fig 1: Accessory Time Delay (RAP) Relay (Grand Prix) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
