Connector Terminal Identification
›
Driver Seat
›
Century, Grand PRIX & Regal
›
Driver Seat Heater Control Module
Driver Seat Heater Control Module

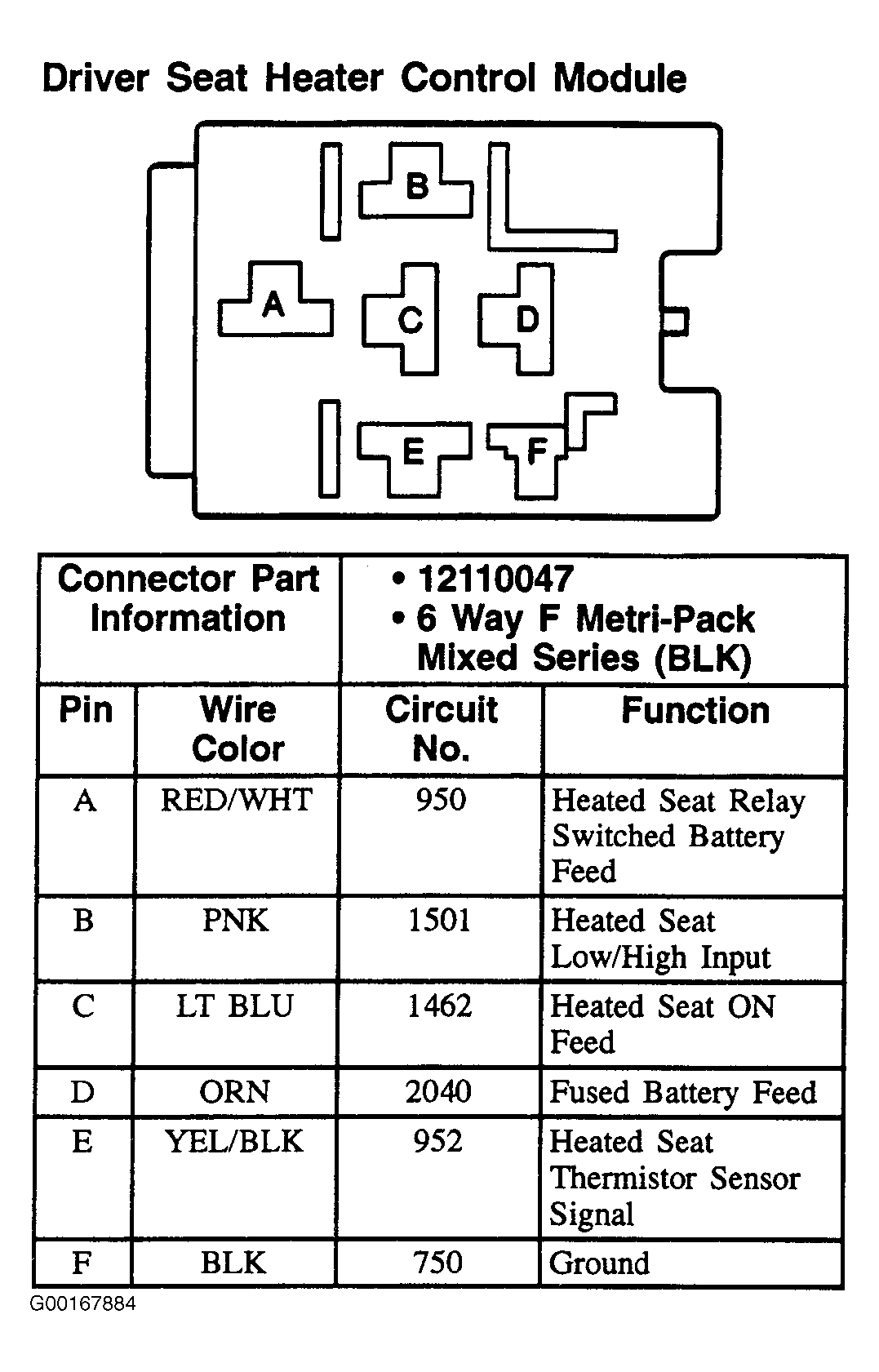

Fig 1: Driver Seat Heater Control Module (Century, Grand Prix & Regal) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
